Core Technical Specifications

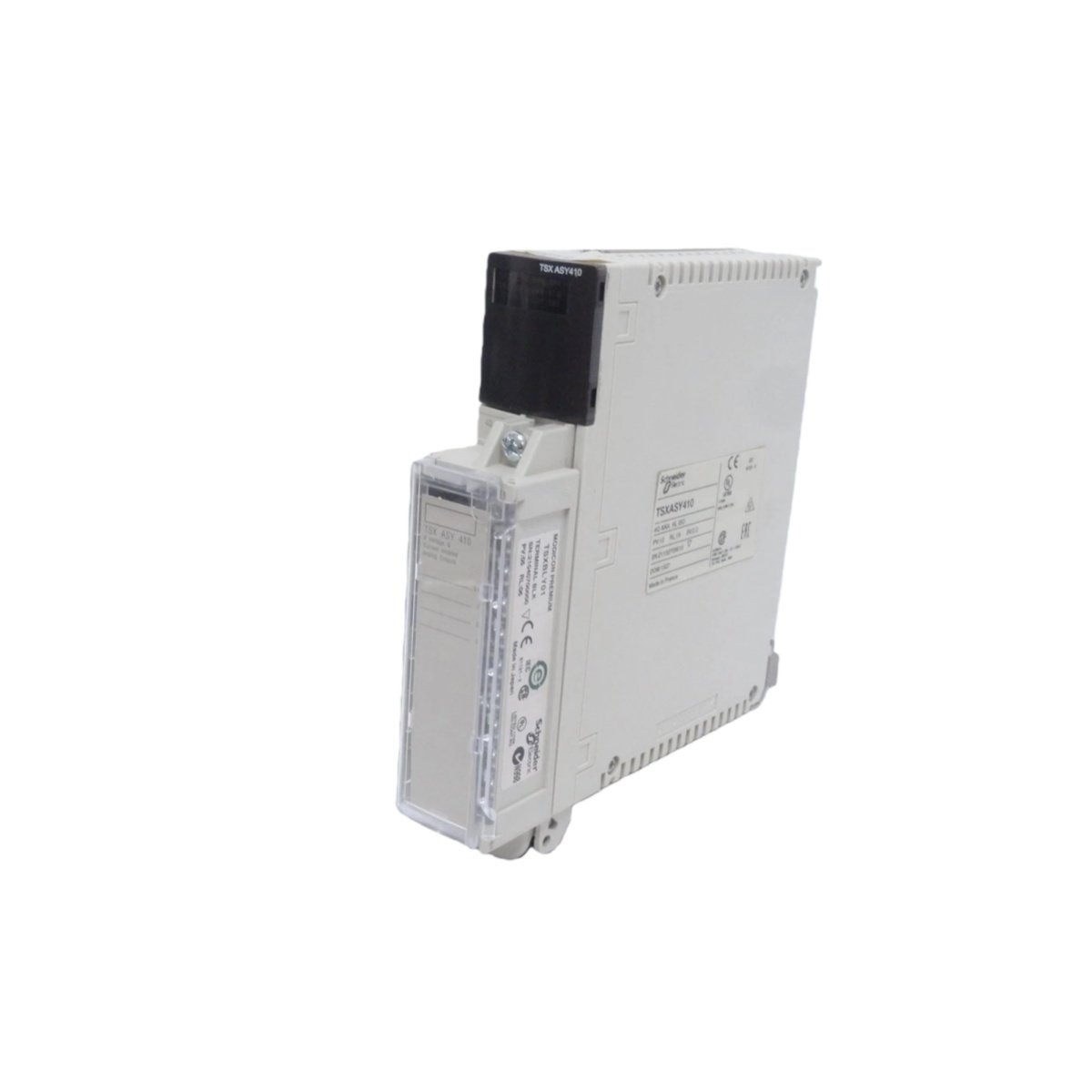

The TSXASY410 analog output module provides four independent voltage or current outputs for precision control applications. This unit measures 140 millimeters in height, 40 millimeters in width, and 140 millimeters in depth, with a total weight of approximately 0.40 kilograms. Each output channel delivers either 0 to 10 volts DC at 10 milliamperes or 4 to 20 milliamperes with a 500-ohm maximum load. The module features a 12-bit digital-to-analog converter with a conversion time of 1 millisecond per channel.

Output Performance and Precision

The TSXASY410 delivers precise analog signals with an accuracy rating of ±0.1% of the full-scale reading. It updates all output channels sequentially within a typical 4-millisecond cycle time. The module provides individual channel configuration for either voltage or current output modes. It incorporates a built-in reference voltage source for stable performance over temperature variations. The unit also features output ramping to prevent abrupt signal changes that could disturb connected actuators.

Physical Installation and Connectivity

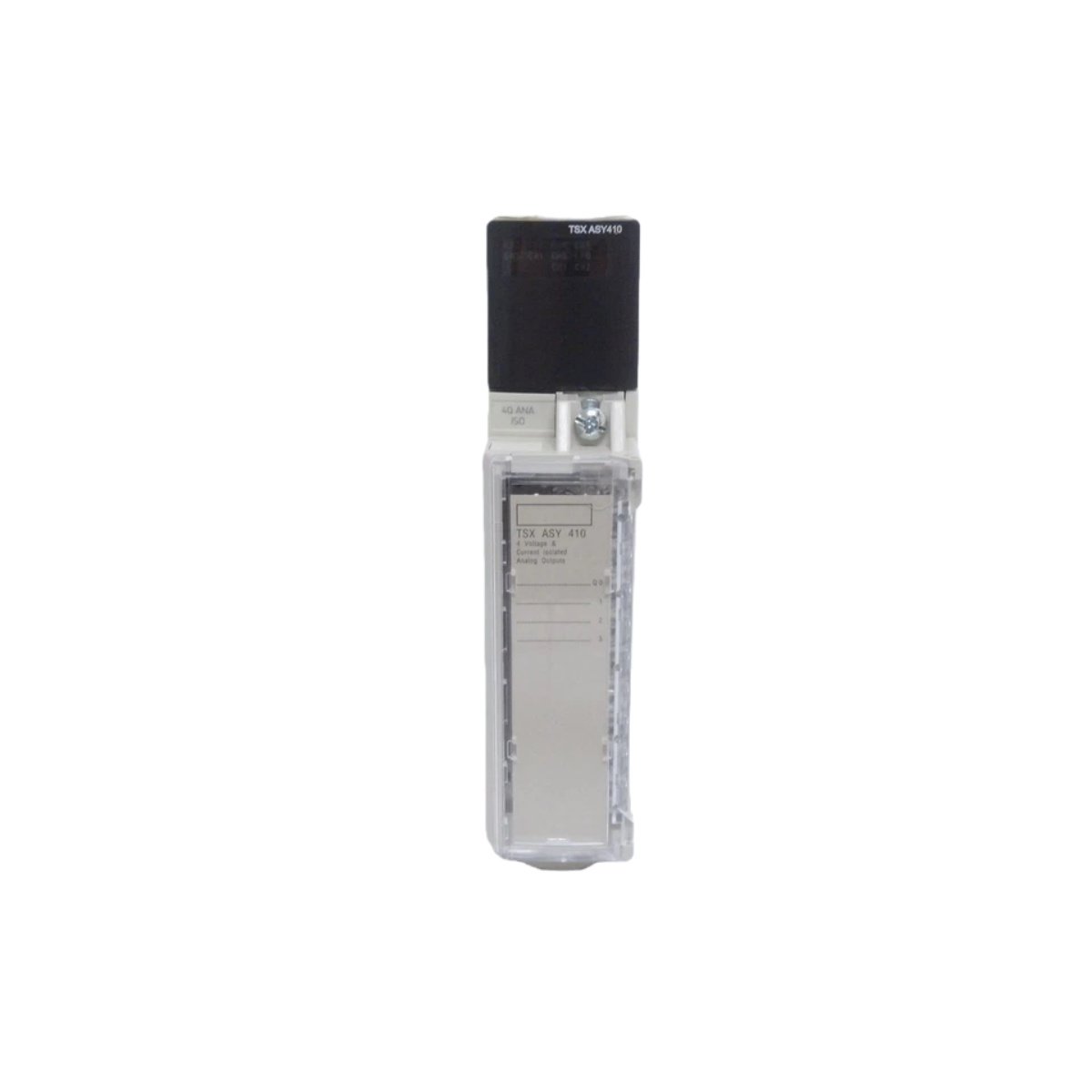

You can mount this single-slot module into any standard Premium backplane using its compact form factor. Its front panel includes a 15-pin D-sub connector for all field output wiring connections. LED indicators display power presence and channel activity for each output point. The unit’s narrow 40-millimeter width allows efficient space utilization in control cabinets. The module’s rugged construction meets IP20 protection requirements for indoor industrial installations.

Memory Resources and Configuration

The TSXASY410 stores output data and scaling parameters in 2 kilobytes of internal dual-port RAM. It retains user configuration settings in 512 bytes of non-volatile EEPROM memory. This module maps each analog channel to a specific register address in the processor’s I/O table. It automatically restores output values to configured safe states during communication loss. The unit also stores calibration coefficients to maintain accuracy throughout its operational life.

Power Supply and Environmental Performance

This module draws a typical current of 120 milliamperes from the 5-volt DC backplane supply. It also requires an external 24-volt DC field supply rated at 200 milliamperes for output circuitry. The TSXASY410 operates reliably across a temperature range of 0 to 60 degrees Celsius. It withstands humidity levels from 5% to 95% without condensation. The unit provides 500 volts of galvanic isolation between the analog outputs and the logic bus.

Integration and Operational Flexibility

You can assign each output channel independently for voltage or current operation through software configuration. It provides programmable scaling factors to convert engineering units directly to analog values. The TSXASY410 also includes diagnostics that detect open-circuit conditions on current output channels. This feature facilitates rapid troubleshooting and minimizes production downtime.
