Core Mixed Analog Interface for TSX Micro Systems

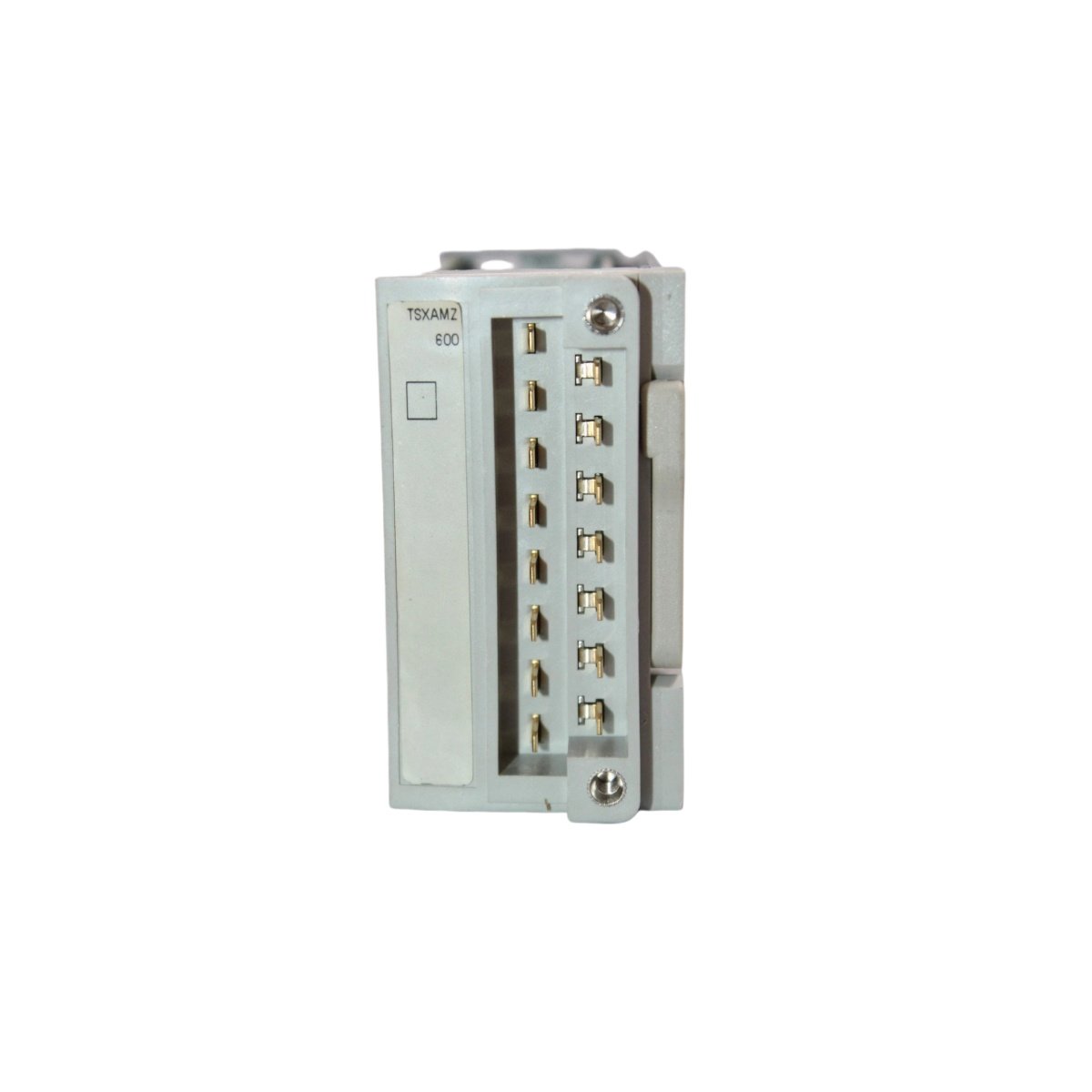

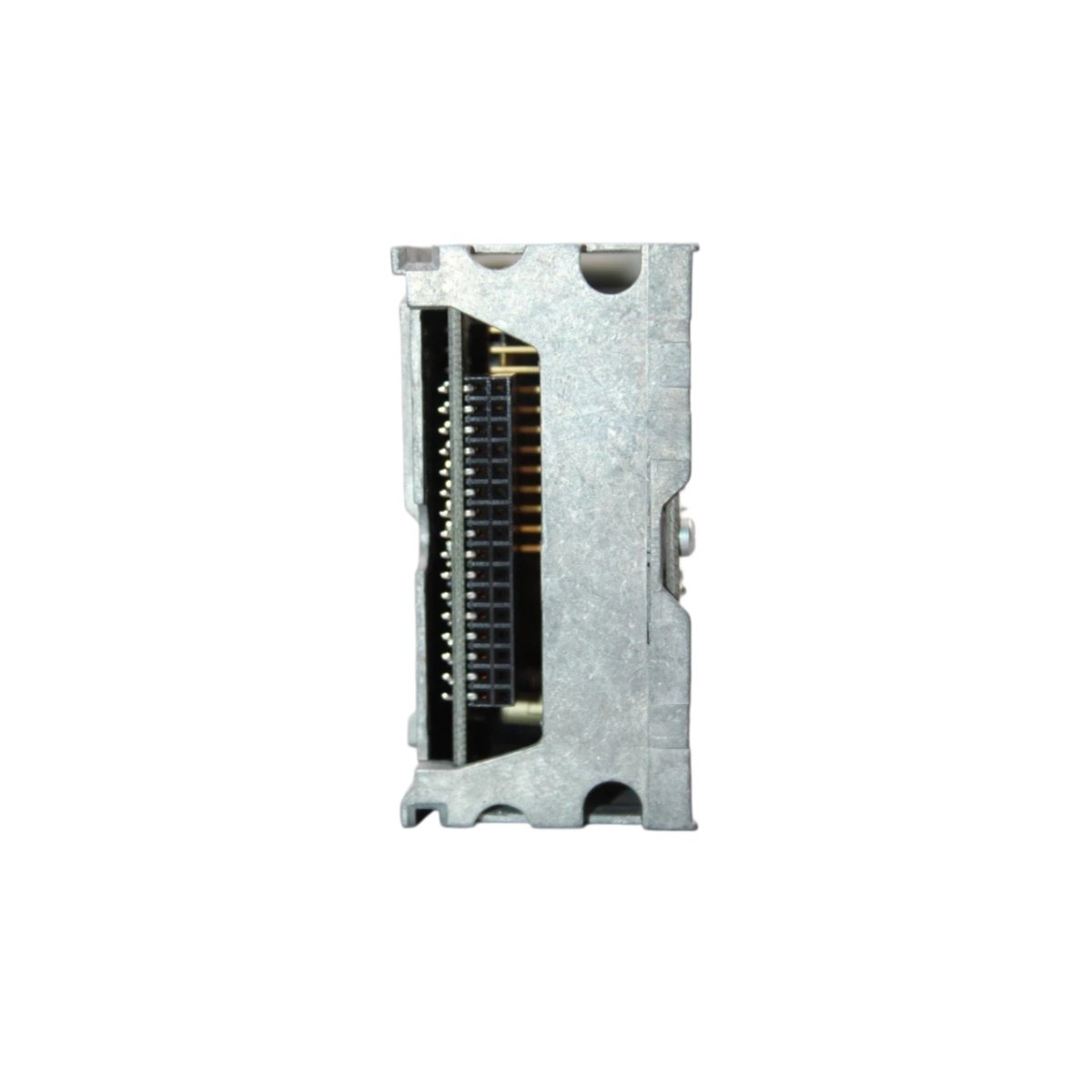

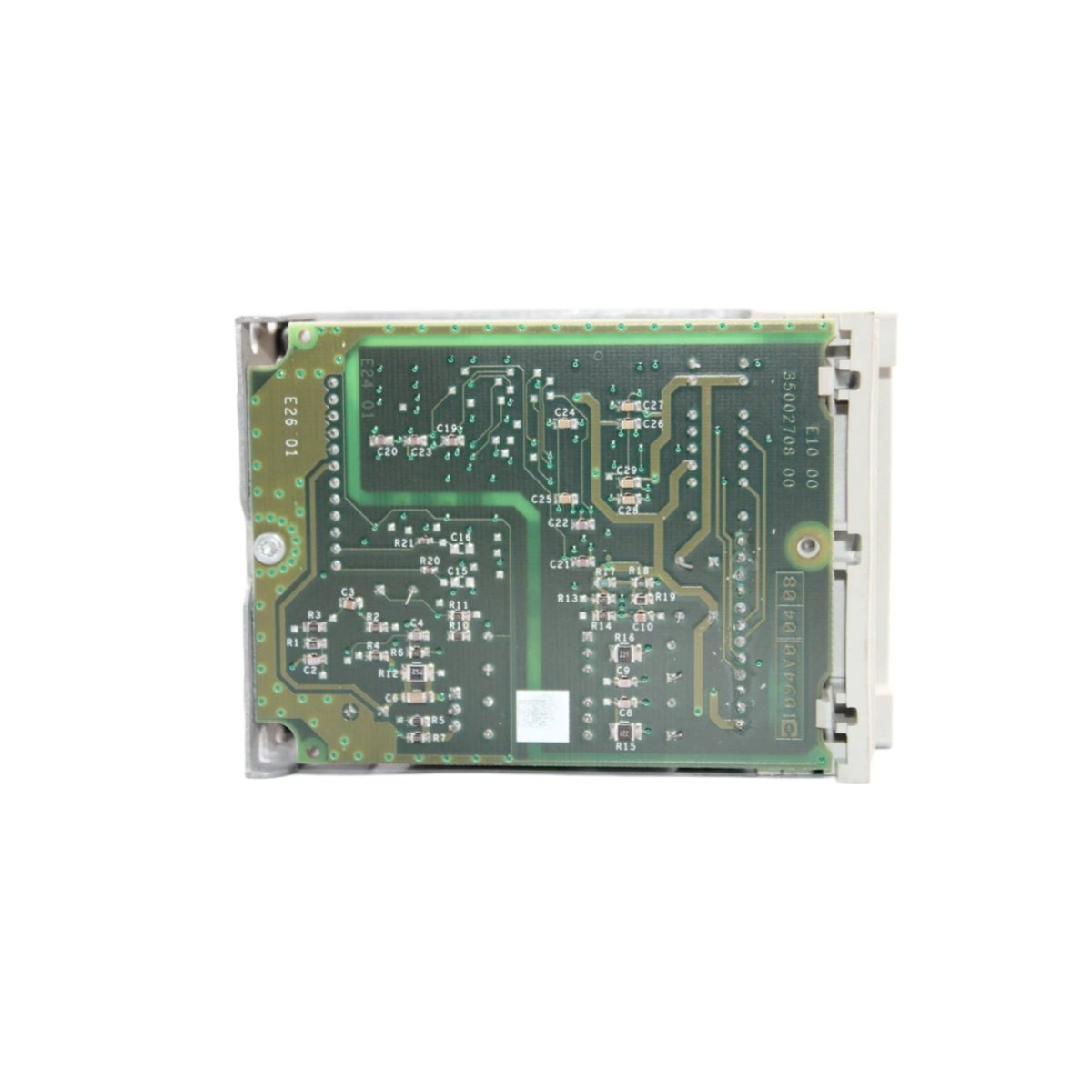

The Schneider TSXAMZ600 is a mixed analog input/output module for the Modicon Micro and TSX 37 programmable logic controller families . This module provides 4 analog input channels and 2 analog output channels, offering a flexible interface for process monitoring and control applications . It directly accepts ±10V, 0-10V, and 0-20mA signals, making it suitable for a wide array of industrial sensors and actuators . Consequently, it is a core component for space-constrained automation architectures requiring both analog input and output capabilities.
Designed for Versatile Signal Conditioning and Reliability
The TSXAMZ600 handles analog signals with 11-bit plus sign resolution for voltage inputs, providing a measurement of 6mV per step (3800 points) for ±10V range . It features configurable measurement filtering and rapid acquisition cycles down to 4ms per active channel for responsive control . The module offers an input impedance of 2.2 MΩ for voltage channels and 250Ω for current channels . Furthermore, it provides 1000V isolation between the analog channels and the bus and ground, ensuring reliable signal acquisition in electrically noisy industrial environments .
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer / Series | Schneider Electric / Modicon TSX Micro |
| Product Model | TSXAMZ600 |
| Module Type | Mixed Analog I/O Module |
| Analog Inputs | 4 Channels |
| Input Ranges | ±10 V, 0-10 V, 0-20 mA |
| Input Impedance | 2.2 MΩ (Voltage) / 250 Ω (Current) |
| Input Resolution | 11-bit + sign (Voltage) / 11-bit (Current) |
| Acquisition Time | 16 ms normal / 4 ms per active channel rapid |
| Analog Outputs | 2 Channels (mixed interface) |
| Isolation | 1000V (channels to bus and ground) |
| Overvoltage Protection | ±30 V on inputs |
| Accuracy (at 25°C) | 0.16% of full scale (Voltage) |
Application in Legacy System Support
Plant engineers use this module to maintain and support existing Modicon Micro and TSX 37 installations. It is a critical component for industries where these legacy controllers remain in daily operation. The Schneider TSXAMZ600 is essential for lifecycle management of classic Schneider Electric automation platforms . Therefore, sourcing tested units from specialized suppliers is crucial for ensuring long-term system reliability.
Details
| Weight | 0.25 kg |
|---|---|
| Dimensions | 130 × 100 × 20 mm |
