Precision Analog Signal Acquisition for Industrial Control

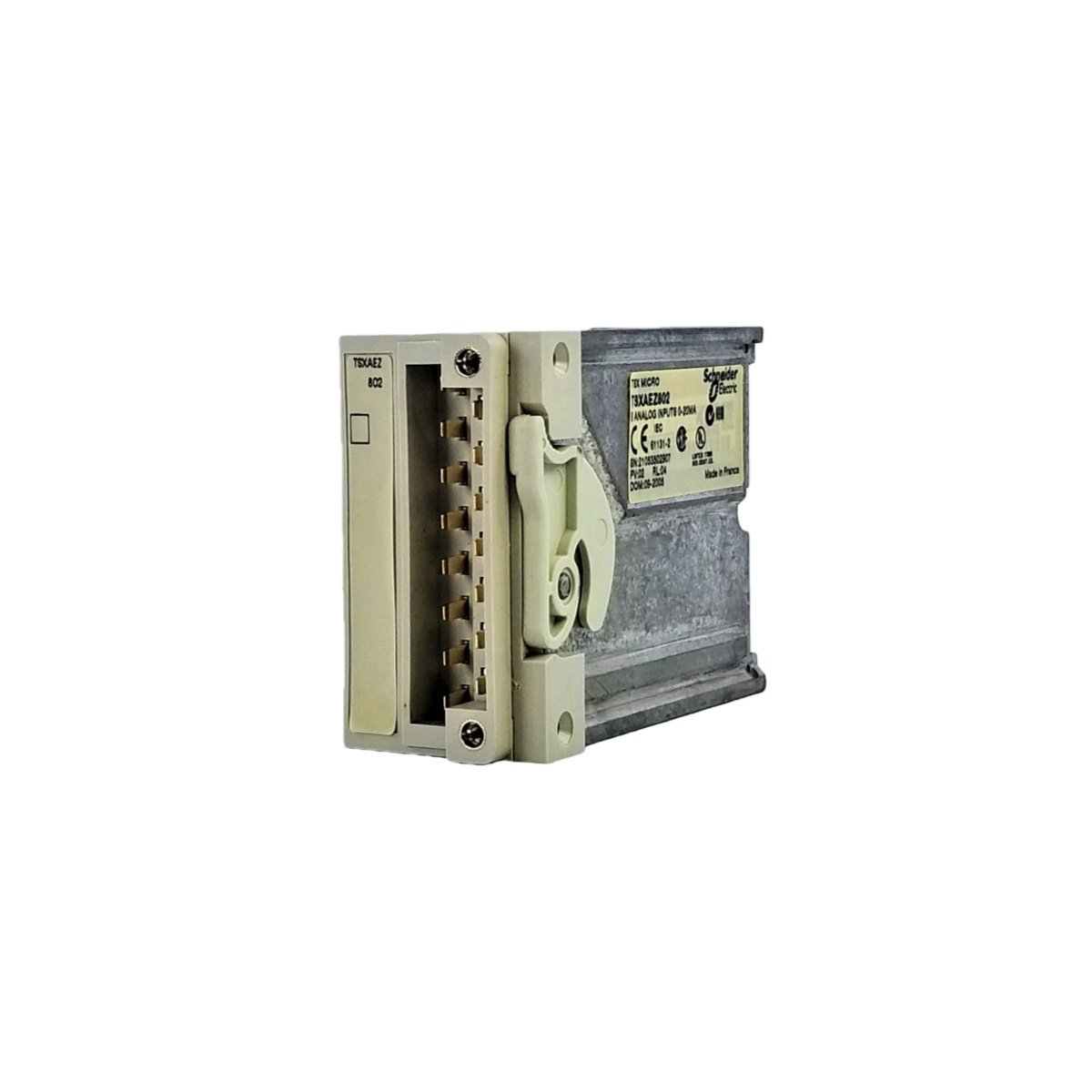

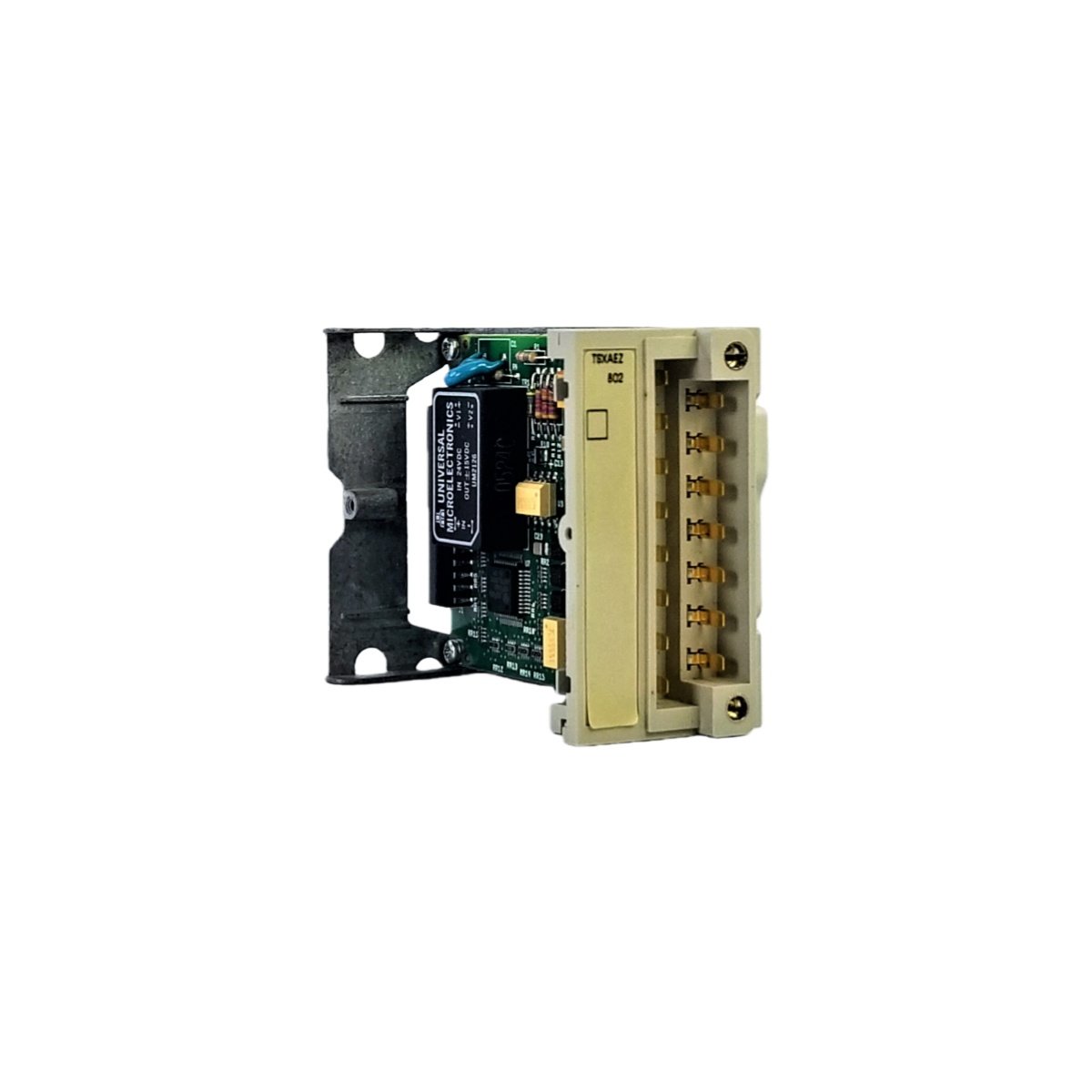

The Schneider TSXAEZ802 functions as a high-performance analog input module within the Modicon Premium automation platform. This module accepts up to 8 differential analog channels, each supporting 4-20 mA current loops or 0-10 V voltage signals. Its compact housing measures 130 mm in height, 40 mm in width, and 100 mm in depth, enabling efficient use of backplane space. The unit weighs roughly 0.35 kg, making it one of the lighter analog input solutions in its category.

For accurate signal conversion, this module employs a 12-bit resolution ADC with a sampling rate of 10 ms per channel. The following table summarizes its core technical specifications for system designers:

Channel Configuration and Signal Conditioning

Each of the 8 input channels operates independently, allowing mixed signal types across the module. This flexibility lets engineers connect pressure transmitters, thermocouples, and flow meters simultaneously. The module provides built-in filtering to suppress high-frequency noise from industrial environments. Such filtering ensures stable readings even near variable-frequency drives or welding equipment.

Power Architecture and System Integration

The TSXAEZ802 draws its operating power directly from the Premium backplane at 5 V DC. Total power consumption remains below 1.2 watts, which minimizes heat generation inside the control cabinet. This low thermal output extends the lifespan of adjacent components and reduces cooling requirements. The module communicates with the CPU through the standard Modicon bus architecture, ensuring seamless data exchange.

Environmental Resilience and Installation Flexibility

Operating temperatures from 0°C to +60°C cover most indoor industrial applications without active cooling. The storage temperature range from -25°C to +70°C protects the module during transportation or warehouse storage. A 500 V AC isolation barrier separates the input channels from the internal bus, safeguarding the control system from ground-loop issues. Panel mounting or direct rack insertion provides straightforward integration into existing Premium systems.
