Technical Overview

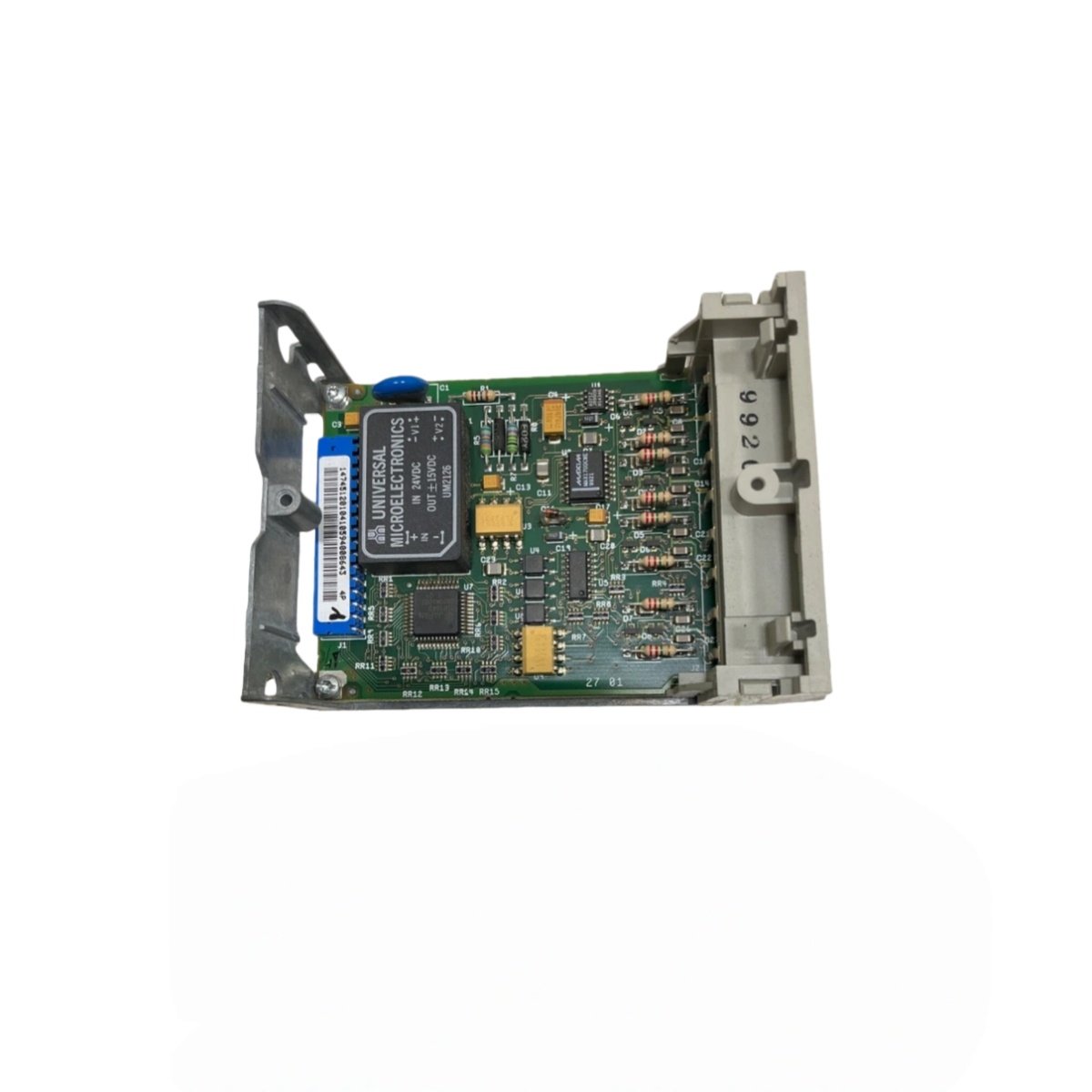

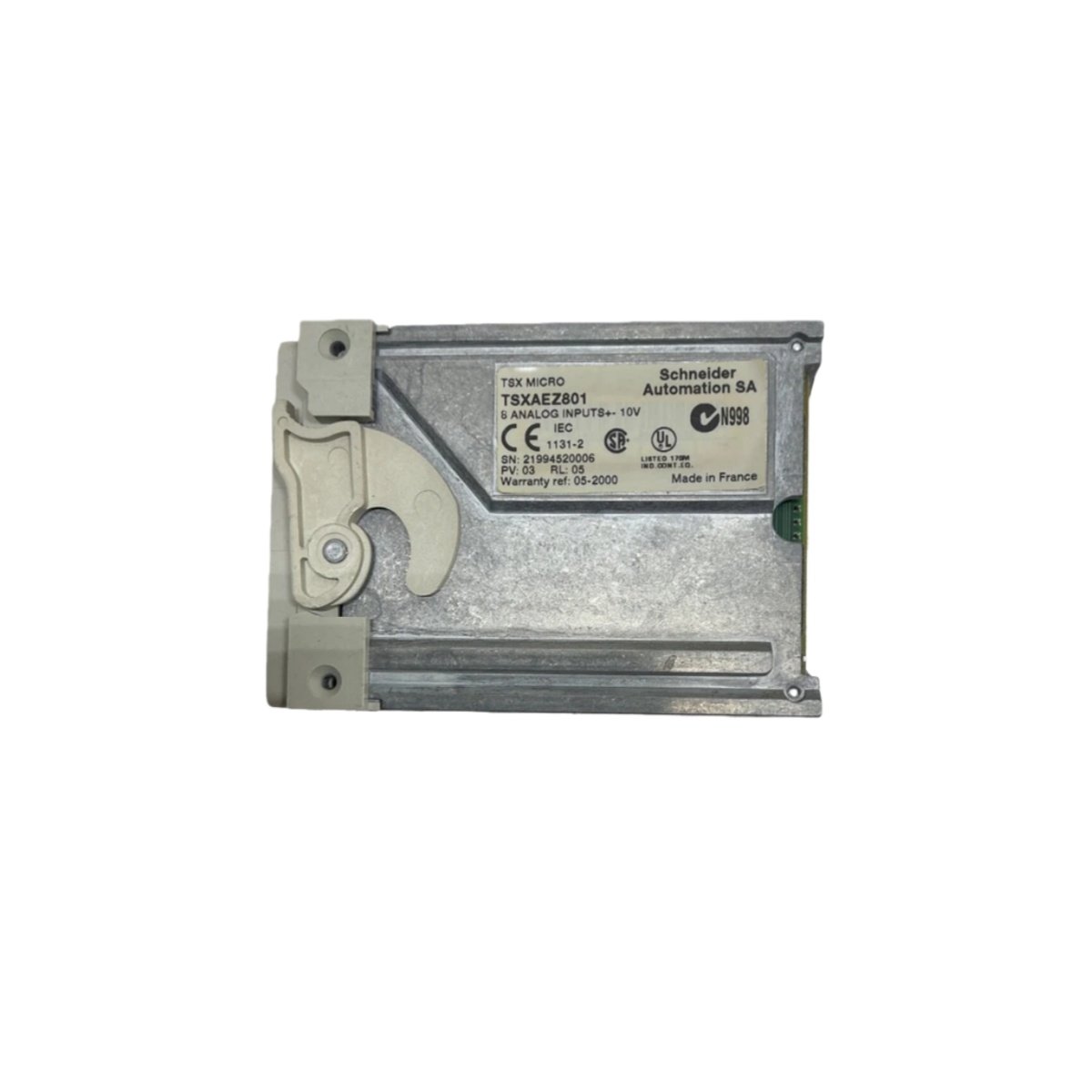

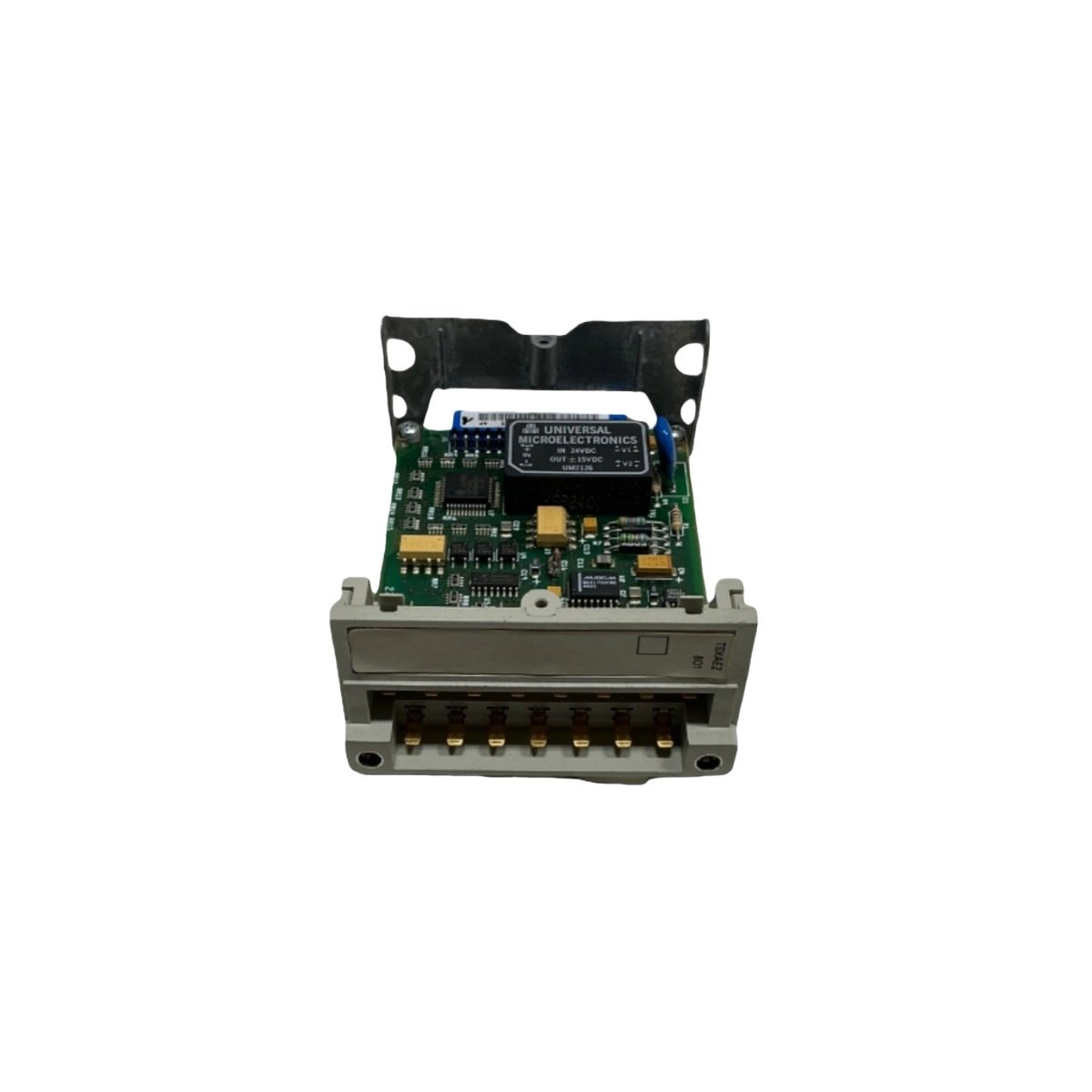

The Schneider Electric TSXAEZ801 is an 8-channel analog input module designed for the Modicon TSX Micro automation platform . This unit acquires voltage signals from field sensors and converts them into digital values for the PLC processor . It supports two input ranges: ±10 V and 0-10 V, providing flexibility for various industrial applications . An 11-bit plus sign analog-to-digital converter delivers precise measurement for process control tasks . The module features a 32 ms acquisition period in normal scan mode, ensuring consistent and reliable data capture . Moreover, it includes 1000 V AC isolation between the bus and the channels, effectively protecting the control system from voltage transients .

Technical Specifications

Key Features

8-Channel High-Level Inputs – This module provides eight analog inputs with a common point, saving valuable rack space within the TSX Micro chassis .

Configurable Input Ranges – Each channel supports ±10 V or 0-10 V ranges, offering flexibility for different sensor types .

High Isolation Voltage – The 1000 V AC isolation between the bus and channels ensures reliable operation and protects the PLC from electrical noise .

Efficient Data Acquisition – The 32 ms acquisition period in normal scan mode delivers consistent and reliable measurements for process control .

Low Temperature Drift – The 0.068% per 10°C drift ensures stable measurements across varying ambient conditions .

Half-Format Design – The compact half-format module reduces cabinet space requirements and simplifies installation .

Applications

The Schneider Electric TSXAEZ801 suits industrial automation applications requiring precise voltage signal acquisition. It performs reliably in process control, machine monitoring, and data acquisition systems within the Modicon TSX Micro platform . The module is ideal for manufacturing, packaging, and material handling environments where stable analog measurement is essential.
