Versatile High-Level Input Processing for Modicon Premium

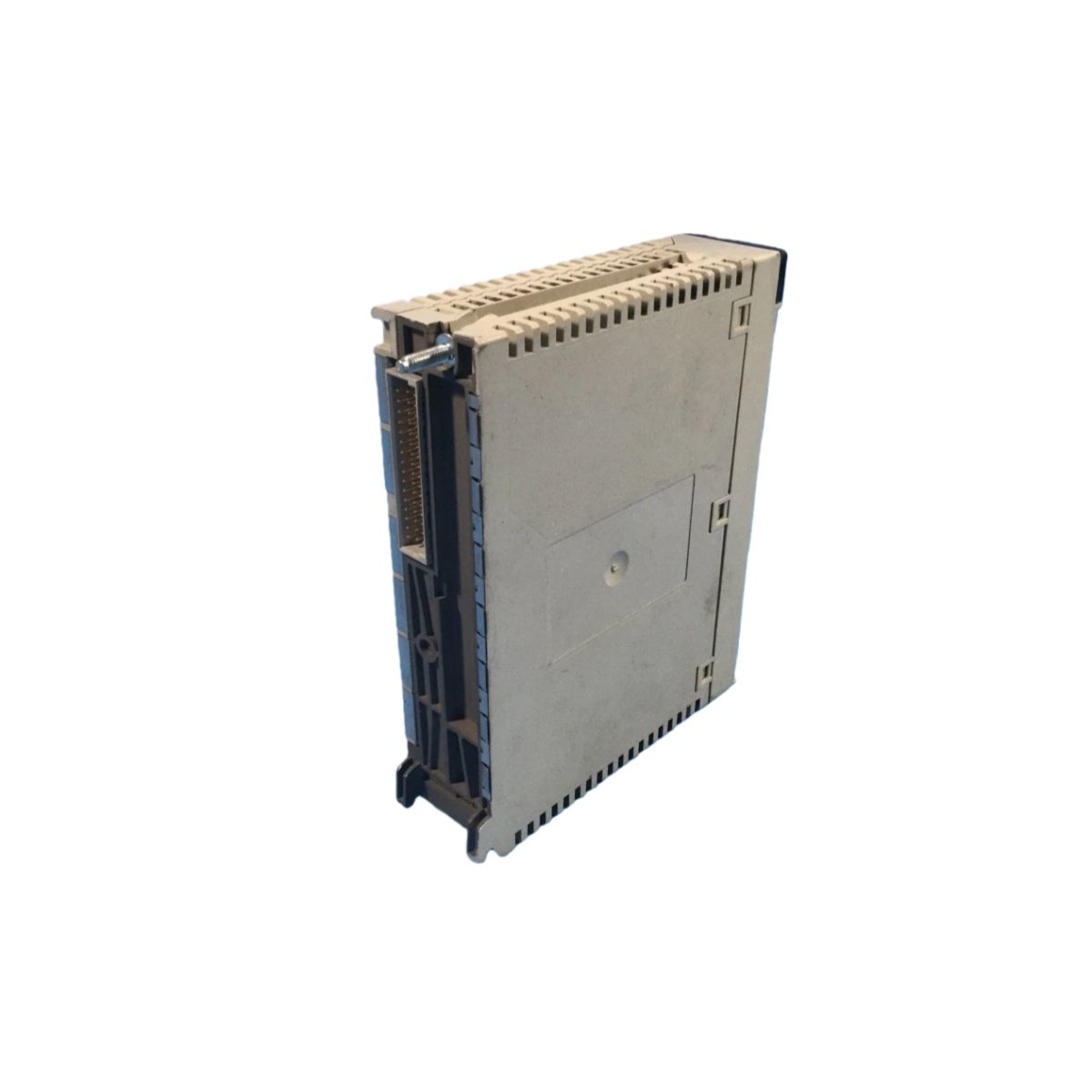

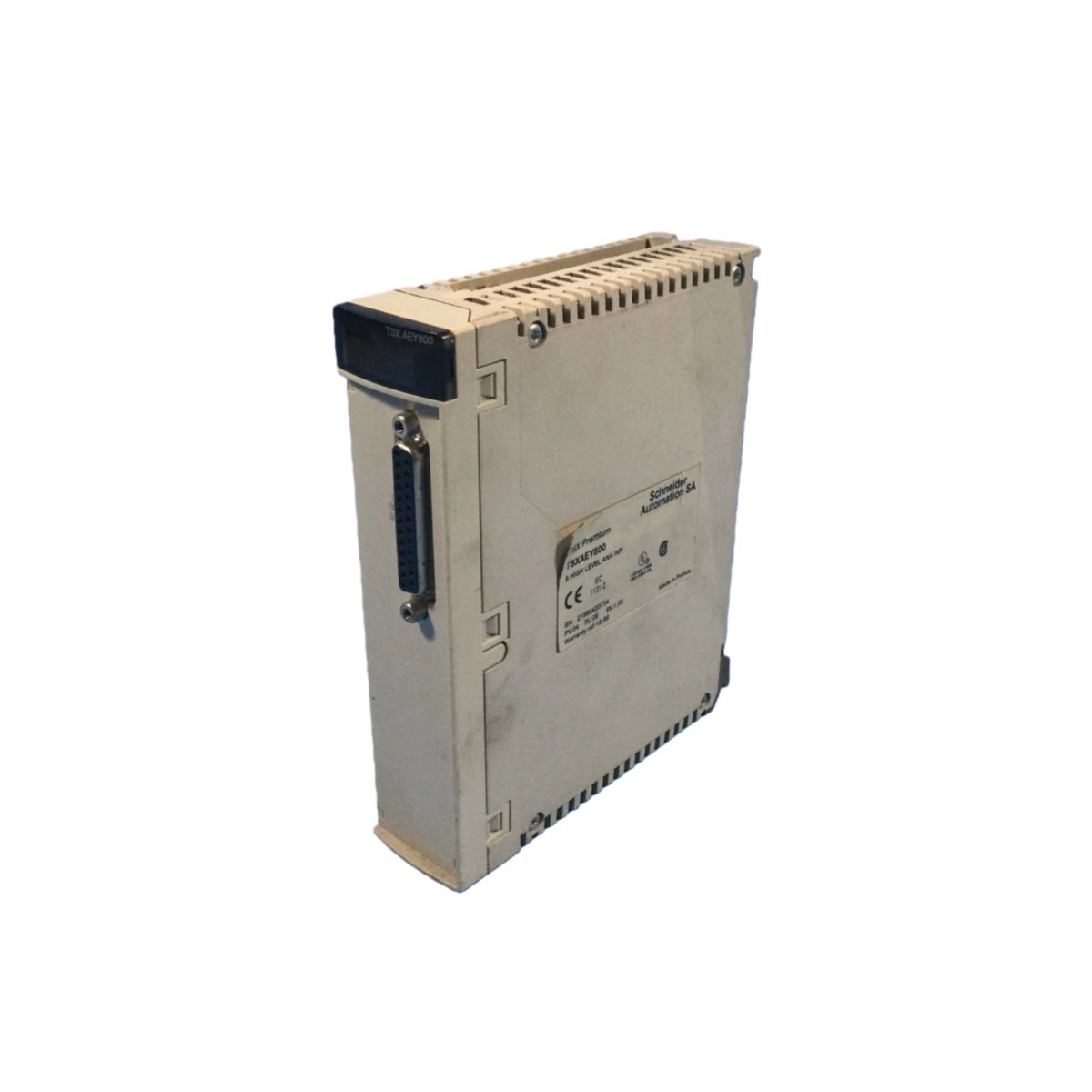

The TSXAEY800 analog input module belongs to the Modicon Premium Automation Platform and handles eight high-level input channels . This module supports both current and voltage signal types for maximum application flexibility. It uses a 25-pin SUB-D connector for all field wiring terminations . The unit provides 12-bit analog-to-digital conversion, ensuring precise data acquisition for your control system .
Technical Specifications
The table below details the key technical parameters for the TSXAEY800 analog input module.
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Product Type | Analog Input Module |
| Input Channels | 8 high-level inputs |
| Input Types | Current: 0-20 mA, 4-20 mA; Voltage: ±10 V, 0-10 V, 0-5 V, 1-5 V |
| A/D Conversion | 12 bits |
| Nominal Read Cycle | 27 ms |
| Fast Read Cycle | 3 ms + 3 ms × number of channels used |
| Measurement Error | 0.15% to 0.41% of full scale (depends on input type and temperature) |
| Isolation | 1000 Vrms (channels to bus); 1000 Vrms (channels to ground) |
| Input Protection | Overvoltage: -15 to +15 V (state 0), -30 to +30 V (state 1) |
| Current Consumption | 270 mA at 5 V DC |
| Connection | 1 × SUB-D 25 connector |
| Protection Rating | IP20 |
| Weight | Approx. 0.31 kg |
| Operating Temperature | 0 to 60 °C |
| Storage Temperature | -25 to 70 °C |
| Certifications | DNV, RINA, GL, BV, LR, RMRS, ABS |
Performance and Protection Features
The TSXAEY800 delivers reliable signal acquisition with its robust isolation and protection schemes. It offers 1000 Vrms isolation between both channels and the bus and between channels and ground, safeguarding the system from electrical interference . The module also includes input overvoltage protection and overcurrent protection for enhanced reliability . Furthermore, users can configure input filtering on each channel to suppress noise, with response times ranging from 0.75 ms to 3.442 ms depending on the selected filter level .
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 110 × 55 × 90 mm |
