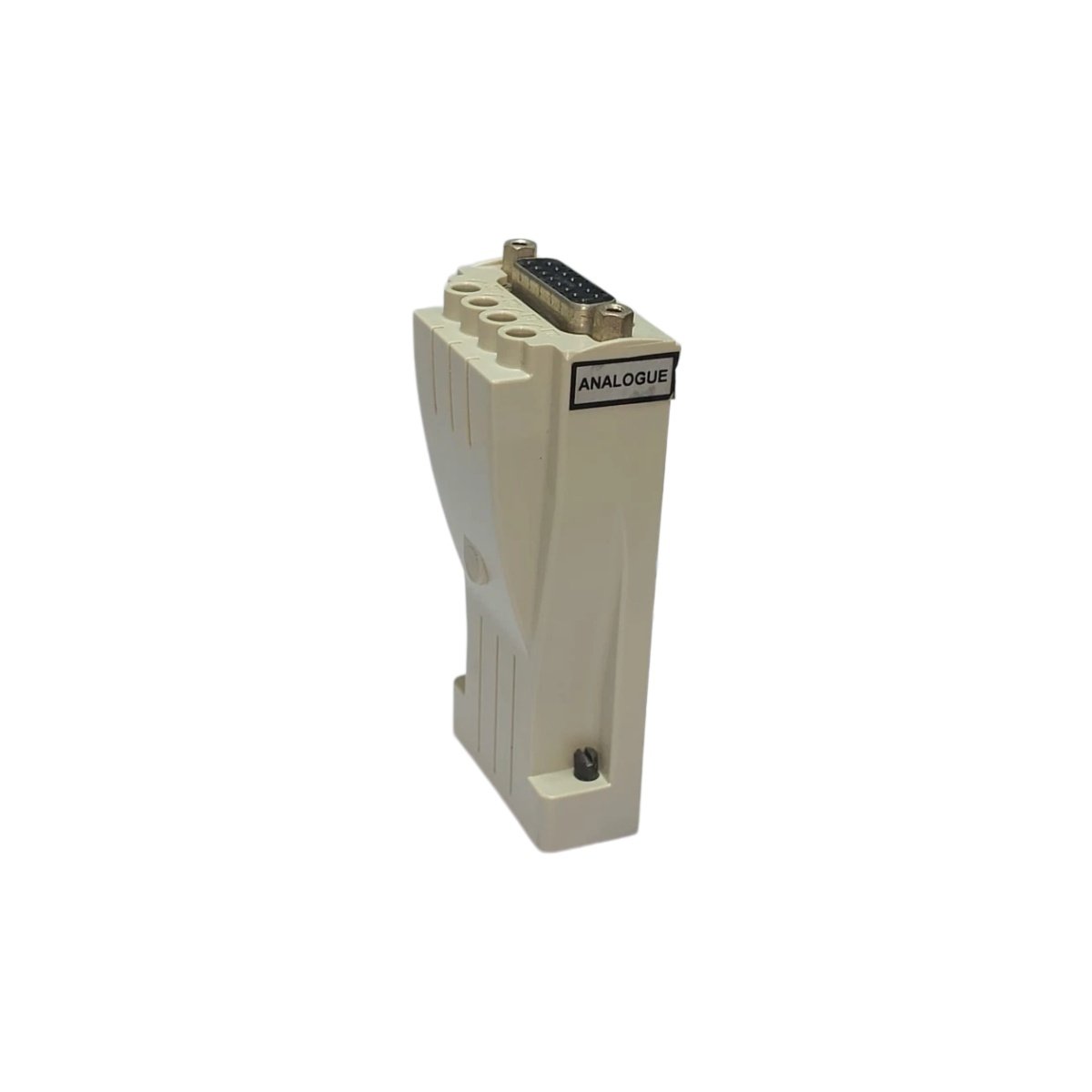

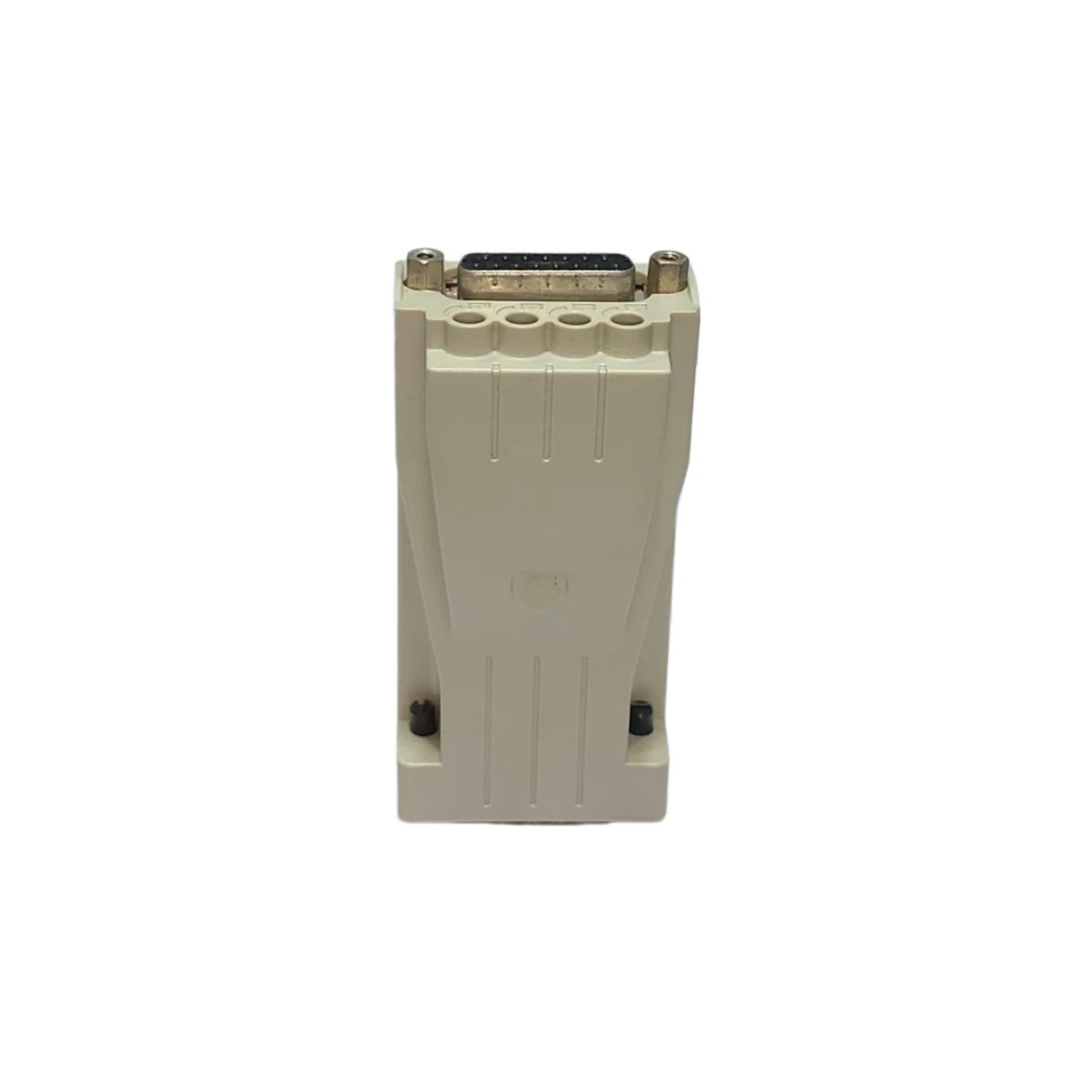

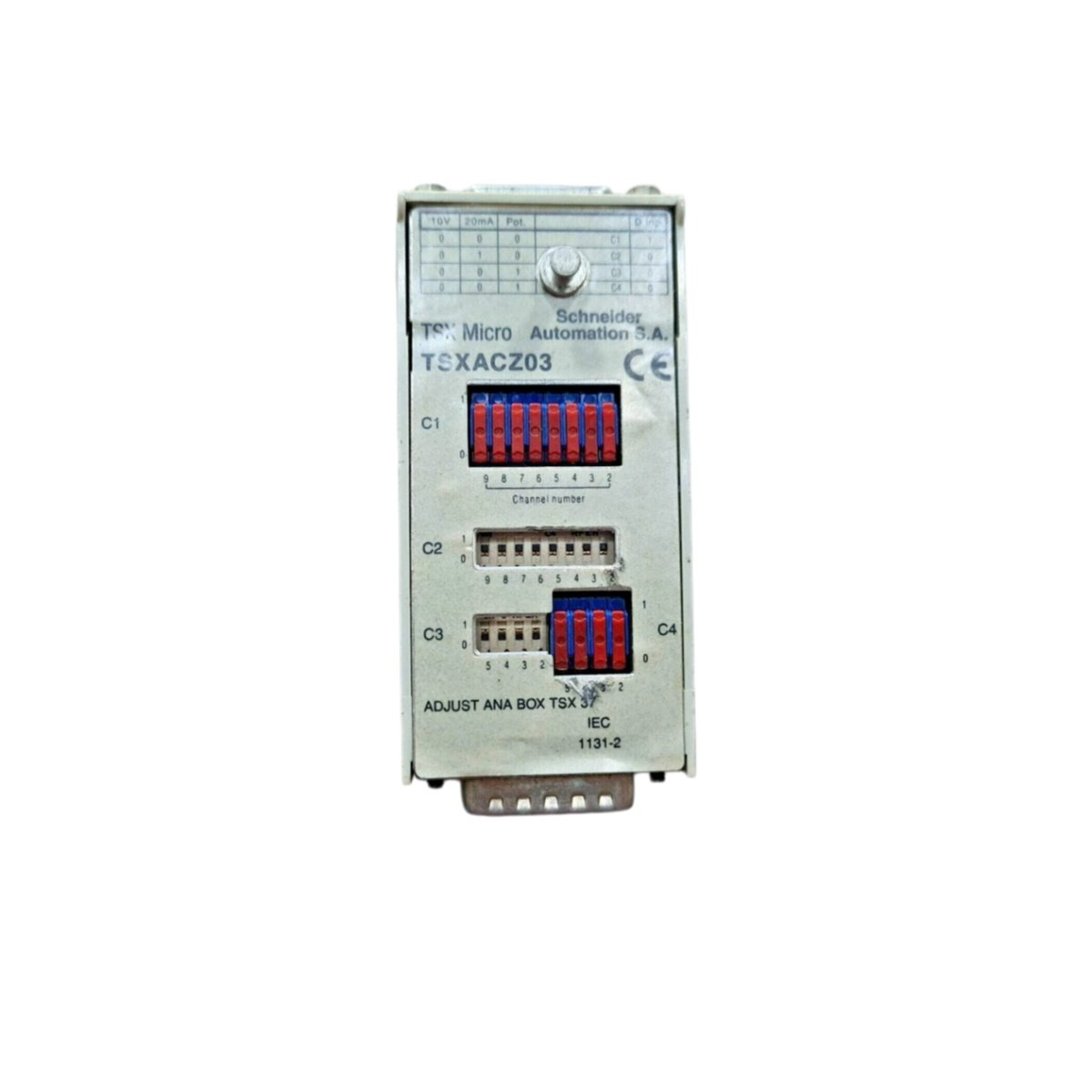

The TSXACZ03 handles analog signal acquisition inside Schneider’s Modicon TSX automation platform. This module measures roughly 9.4 inches long, 1.0 inch wide, and 5.1 inches high. Moreover, it weighs about 0.6 pounds, which keeps cabinet layouts efficient. Engineers select the TSXACZ03 when they need accurate temperature or process readings from field transmitters.
Technical Specifications and Interface Details
The unit converts analog field signals into digital values for the host processor. Specifically, it provides eight differential input channels with high common-mode rejection. Additionally, it accepts voltage and current ranges through configurable jumper settings. A front-facing terminal block simplifies wiring and routine maintenance.
| Parameter | Specification |
|---|---|
| Module Type | Analog Input Module |
| Channels | 8 differential inputs |
| Input Ranges | Voltage and current, jumper-selectable |
| Dimensions | 9.4 x 1.0 x 5.1 in |
| Weight | ~0.6 lbs |
| Interface | Modicon TSX backplane |
| Terminal Block | Front-mounted |
| Resolution | 12-bit |
Energy Storage and Measurement Stability
Internal capacitors on the TSXACZ03 provide local energy storage for clean reference voltages. Consequently, the module suppresses noise from drives and contactors on the plant floor. This buffering supports stable readings across fluctuating supply conditions. The design therefore maintains measurement accuracy during extended operating cycles.
Installation and Compatibility Notes
Because the TSXACZ03 slides into standard Modicon TSX racks, technicians complete installation quickly. They should verify jumper settings before they connect field wiring to the terminals. Furthermore, the module integrates smoothly with existing TSX control hardware. Always store spare units in anti-static packaging to protect sensitive circuitry.
Details
| Weight | 0.15 kg |
|---|---|
| Dimensions | 110 × 72 × 38 mm |
