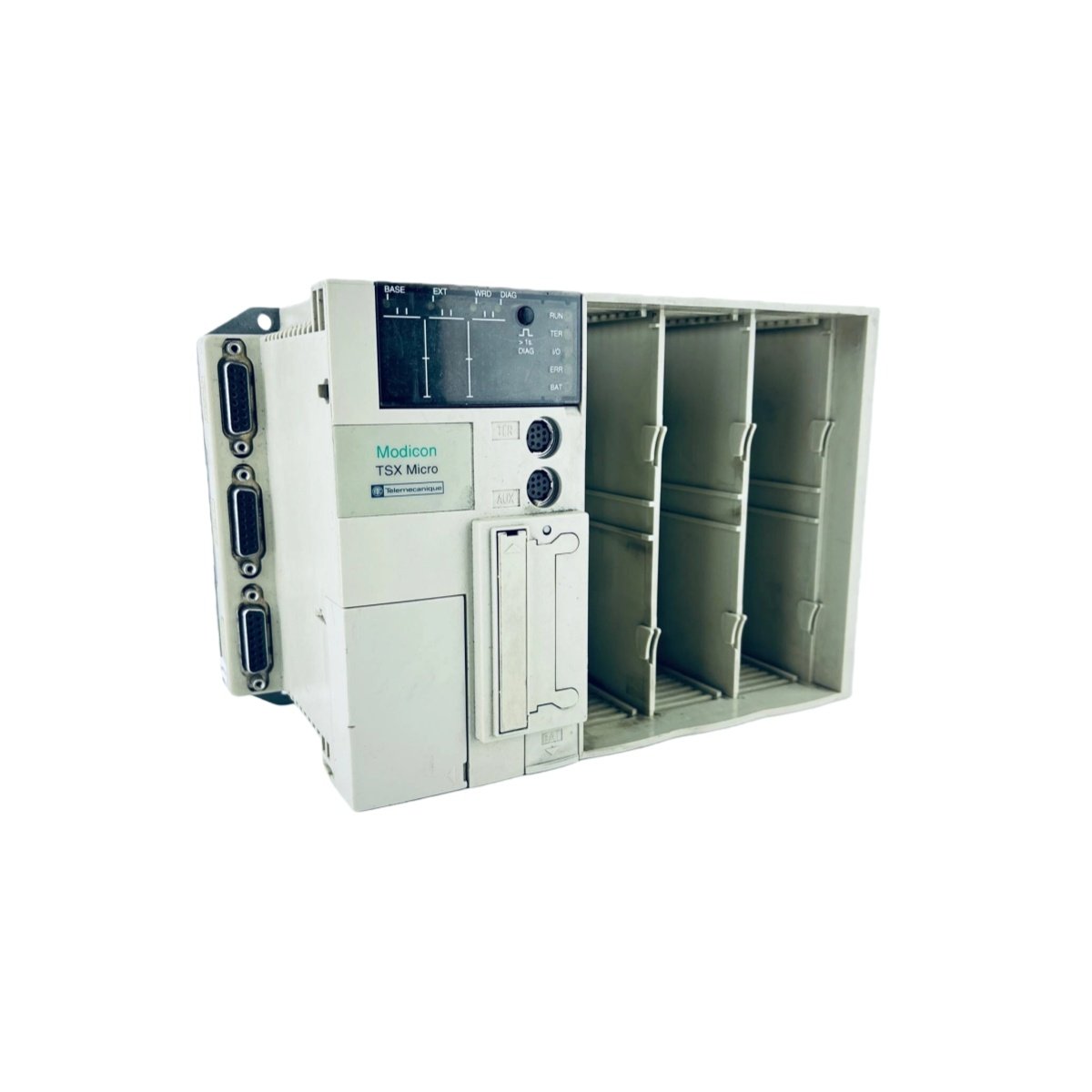

The Schneider TSX3722100 functions as a modular base for PLC systems. This controller weighs exactly 0.9 kilograms for easy cabinet mounting. Its dimensions measure 130 mm in height and 100 mm in depth. The width stands at 60 mm for standard rack integration.

Technical Specifications of TSX3722100

The Schneider TSX3722100 includes 256 KB of internal RAM memory. It also provides 128 KB of flash storage for program retention. The controller operates on a 24 V DC power supply. It consumes only 4.5 watts during typical processing tasks. Therefore, this base unit delivers efficient performance for small to medium applications.

Below is a complete breakdown of key parameters:

Memory and Storage Features

The Schneider TSX3722100 uses battery-backed RAM for data retention. This battery maintains stored data for up to 1000 hours. The controller also includes one PCMCIA Type II expansion slot. Consequently, you can add extra memory cards or communication modules. The unit stores no energy beyond its small backup battery.

Interface and Connectivity Options

The Schneider TSX3722100 features a built-in RS-232 serial port. It also provides one RS-485 port for multi-drop networking. The controller includes a 40-pin expansion connector for I/O modules. For similar industrial control solutions, see the RMS-TSG-TZ-C static trip unit. That unit provides reliable protection for power distribution systems. However, the TSX3722100 focuses specifically on PLC base control functions.

Installation and System Integration

You can mount this controller on a standard DIN rail. It requires only 60 mm of horizontal panel space. The Schneider TSX3722100 works seamlessly with TSX series I/O modules. Moreover, its modular design allows easy system expansion over time. These features make it ideal for factory automation and process control.
