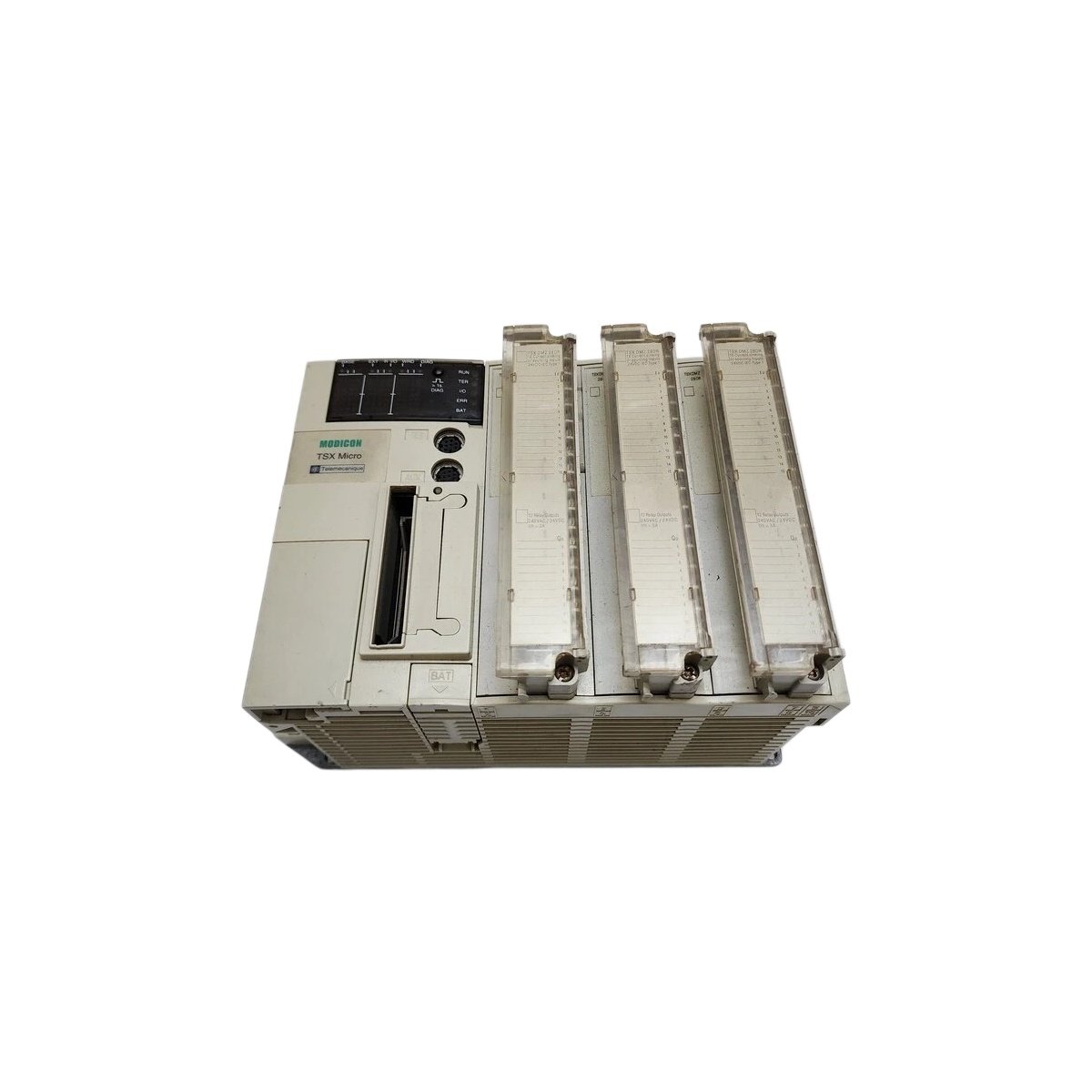

The Schneider TSX3721AC serves as the base unit inside Modicon TSX Nano and Micro automation platforms. Engineers select this unit when compact control tasks demand an integrated power and processing platform. Consequently, the base delivers reliable logic execution across continuous plant operations.
Physical Dimensions and Weight Data
Cabinet space often limits how technicians arrange controller hardware inside compact enclosures. Therefore, this base keeps a slim profile while supporting full integrated functionality. It weighs roughly 0.6 kg and measures 110 mm in height. Additionally, its width spans 75 mm with a depth of 90 mm.
Interfaces and Connectivity Features
Reliable control depends on secure terminations at every input and output point. The unit provides screw terminals that accept wires up to 2.5 mm². Furthermore, front-panel LEDs let technicians verify channel and fault status instantly. The base mounts directly onto DIN rail without additional brackets.
Component Count and Energy Storage
Internal architecture shapes both diagnostic coverage and service life. This base carries more than 200 discrete components across its integrated stages. Moreover, a lithium battery retains configuration data for up to 90 days. This storage protects non-volatile memory whenever plant power drops.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Module Type | Base unit |
| Series | Modicon TSX Nano/Micro |
| Dimensions | 110 × 75 × 90 mm |
| Weight | 0.6 kg |
| Mounting | DIN rail |
| Integrated I/O | 14 inputs, 10 outputs |
| Component Count | 200+ discrete parts |
| Energy Storage | Lithium battery, 90-day retention |
| Operating Temperature | 0°C to 60°C |
| Supply Voltage | 100–240 VAC |
| Scan Cycle Time | 10 ms typical |
| Memory | 8 MB non-volatile |
| Isolation Voltage | 1500 VAC |
| Diagnostic Coverage | Over 99% |
Processing Performance and Compliance
Fast scan cycles directly influence overall control loop accuracy. The base completes typical logic scans within 10 ms. Meanwhile, isolation voltage reaches 1500 VAC between supply and internal circuits. Diagnostic coverage exceeds 99%, which strengthens fault detection.
Industrial sites also demand strict safety certifications before deployment. The base complies with IEC and UL standards for industrial control equipment. In addition, it meets CE requirements for electromagnetic compatibility. These credentials support dependable operation in harsh plant environments.
