Compact Micro PLC Solution

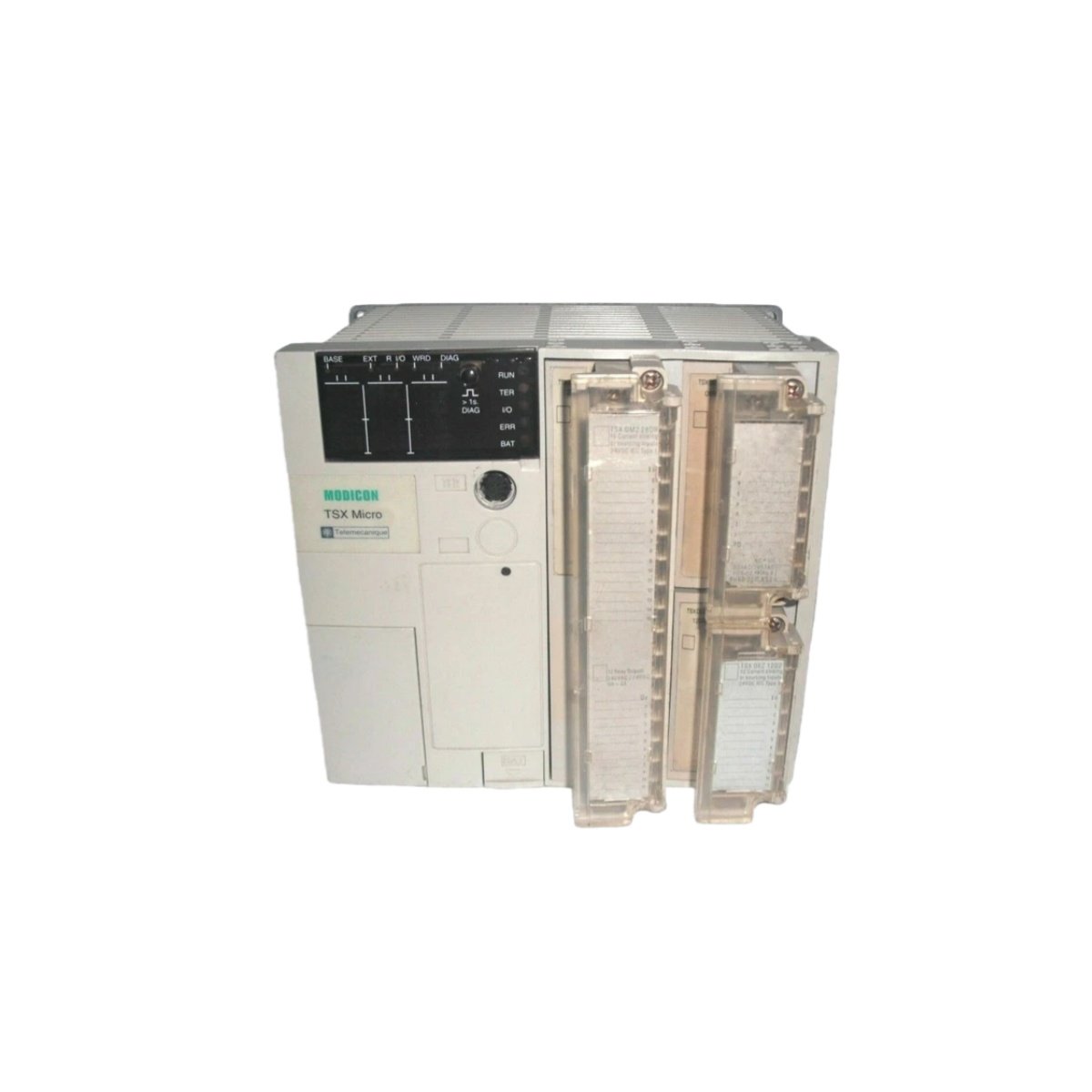

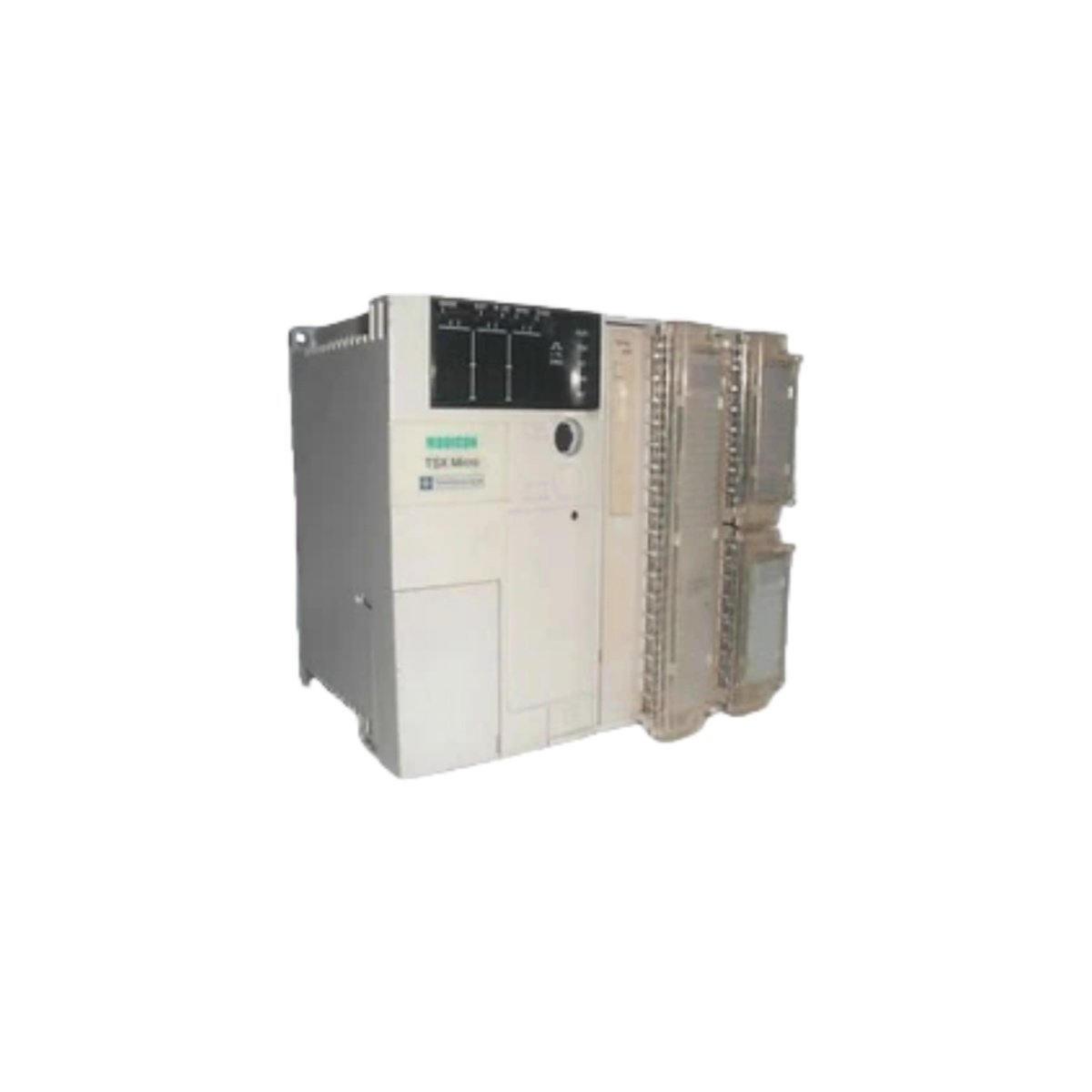

The Schneider TSX3710AC functions as a micro programmable logic controller for small to medium automation tasks. This unit combines a CPU, power supply, and I/O points in a single housing . It delivers 100 watts of total system power for driving connected loads . Therefore, this PLC provides a cost-effective control solution for packaging lines and simple machinery.

I/O Configuration and Capability

The TSX3710AC includes built-in discrete inputs and outputs for basic control operations. It supports 24 V DC digital signals for sensor and actuator interfacing directly . The controller accepts a mix of sinking and sourcing configurations for flexible wiring . Additionally, it accommodates expansion I/O modules for enhanced system capacity .

Processing and Memory Specifications

This controller executes application logic with a consistent scan time for reliable performance. It stores user programs in internal RAM with battery backup against power loss . The Schneider TSX3710AC provides sufficient memory for ladder logic and function block diagrams . Consequently, users can implement moderate-complexity control algorithms without external memory upgrades .

Communication and Programming Interface

A built-in serial port enables connection to a programming terminal or operator interface . The TSX3710AC supports Modbus communication protocol for simple network integration . Furthermore, the module includes a second port for connecting remote displays or printers . This communication flexibility simplifies system commissioning and maintenance significantly .

Physical Dimensions and Mounting

The unit weighs 2.3 kilograms and measures 200 x 160 x 130 millimeters approximately . It mounts directly onto a DIN rail or panel using standard brackets . The enclosure carries an IP20 rating for controlled industrial environments . LED indicators on the front panel provide real-time status for power, run, and fault conditions .

Technical Specifications

Details
