Compact Modular Base Controller for Premium Automation Platforms

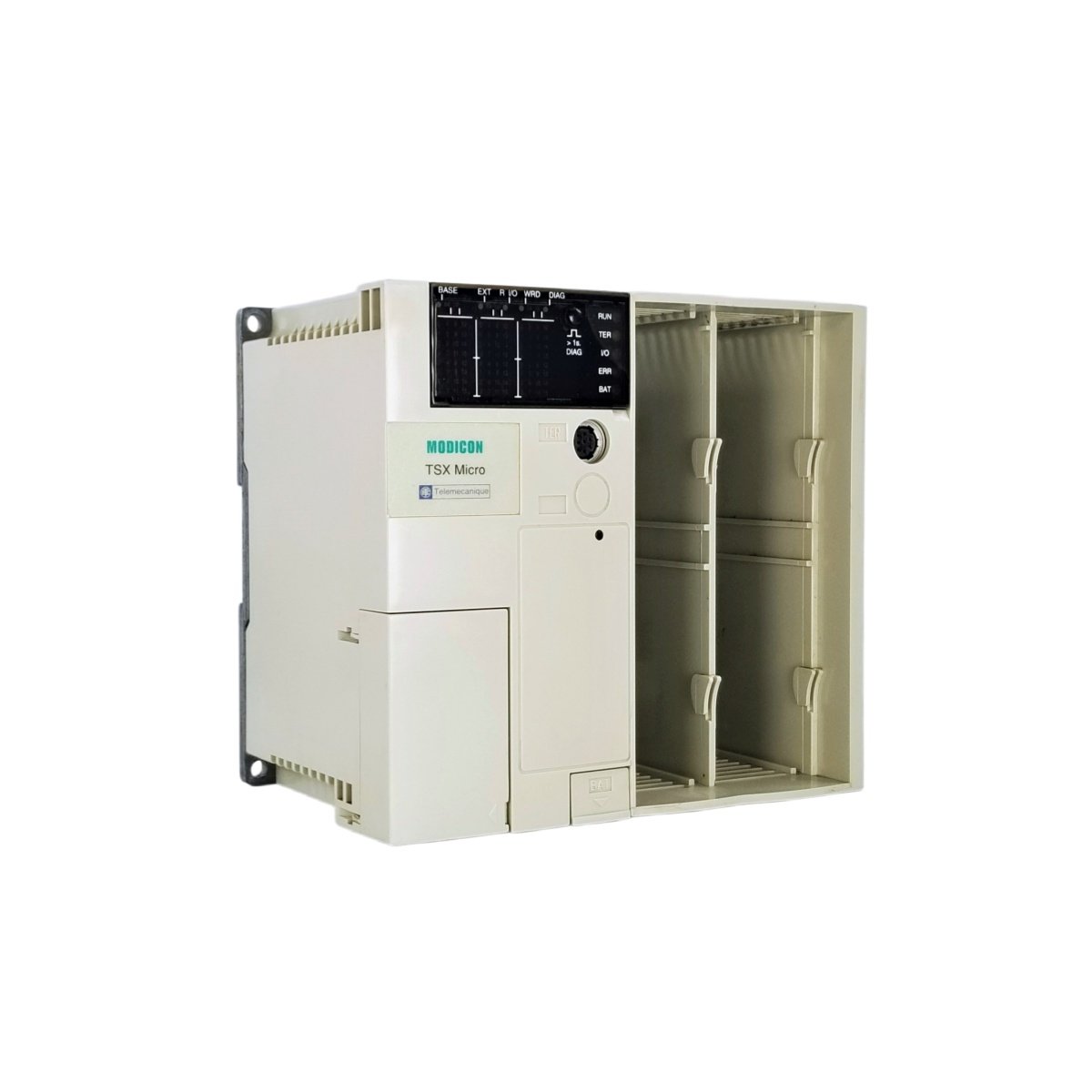

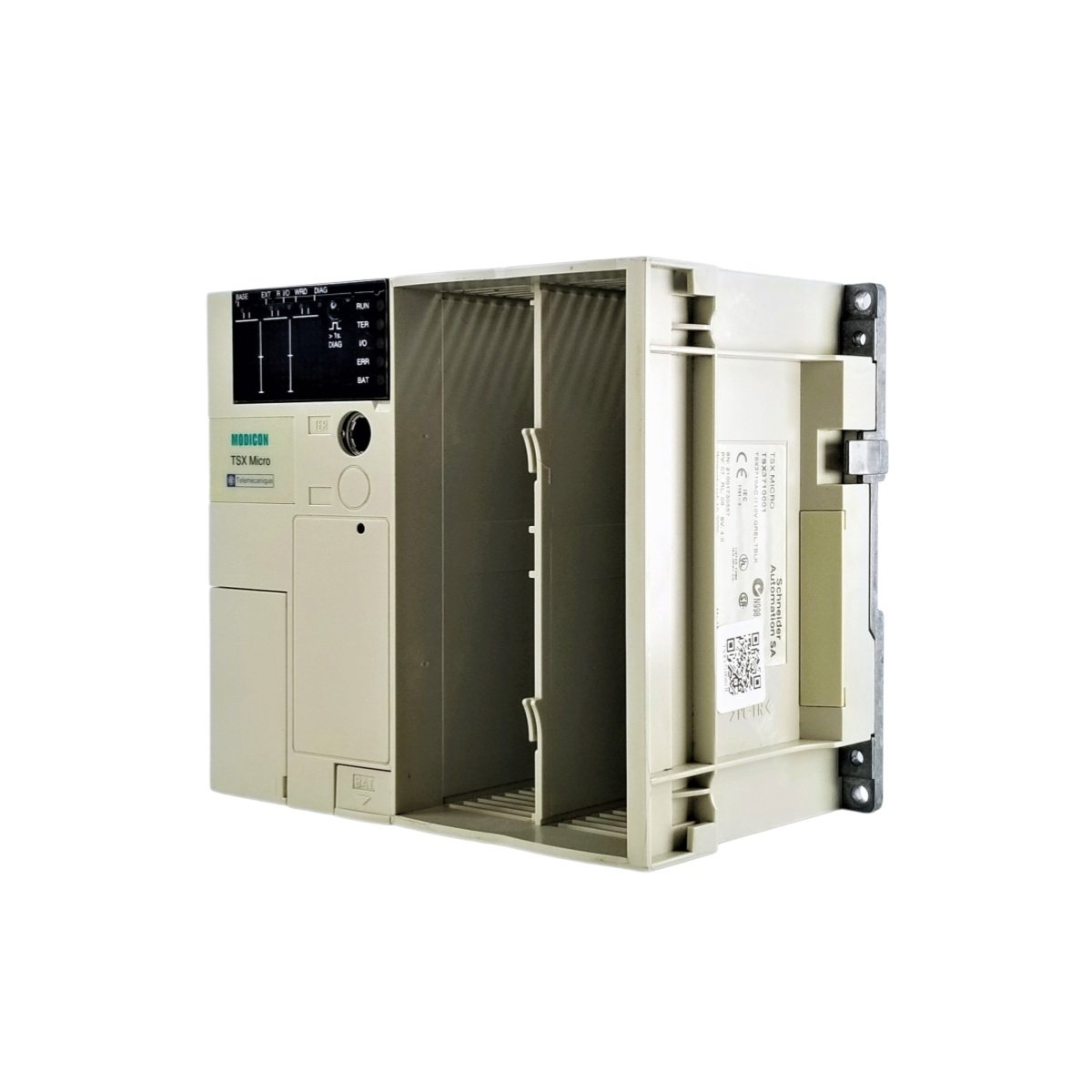

The Schneider TSX3710001 serves as a modular base controller within the Modicon Premium automation platform. This controller manages logic execution, I/O scanning, and communication tasks for mid-sized industrial systems. Its modular design accommodates multiple I/O modules for flexible system configuration.
This base controller features a built-in Ethernet port for integration with supervisory networks. Its 144 MHz processor handles complex control algorithms and fast response requirements. The unit supports up to 1024 discrete I/O points and 128 analog channels.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | TSX3710001 |
| Type | Modular Base Controller |
| Platform | Modicon Premium |
| Processor Speed | 144 MHz |
| Memory | 448 KB RAM, 128 KB Flash |
| Discrete I/O Capacity | Up to 1024 points |
| Analog I/O Capacity | Up to 128 channels |
| Communication Ports | Ethernet (1), Modbus (2) |
| DIN Rail Mounting | Yes |
| Dimensions | 130 x 100 x 110 mm |
| Weight | 0.50 kg (approx.) |
| Operating Temp | 0 °C to 60 °C |
| Compliance | UL, CSA, CE, ATEX |
The TSX3710001 combines a fast 144 MHz processor with 448 KB of user memory for demanding applications. Its two Modbus ports enable seamless integration with field devices and HMIs. The Ethernet port provides connectivity to SCADA and MES systems for data monitoring.
This modular base controller offers significant I/O capacity in a compact housing. Its built-in power supply delivers stable power to connected I/O modules. The unit mounts on standard DIN rails for simplified installation.
The TSX3710001 integrates seamlessly with Premium I/O modules and accessories. Its robust design operates reliably across industrial temperature extremes. Therefore, this controller provides a balanced solution for mid-range automation requirements.
Details
| Weight | 0.50 kg |
|---|---|
| Dimensions | 130 × 100 × 110 mm |
