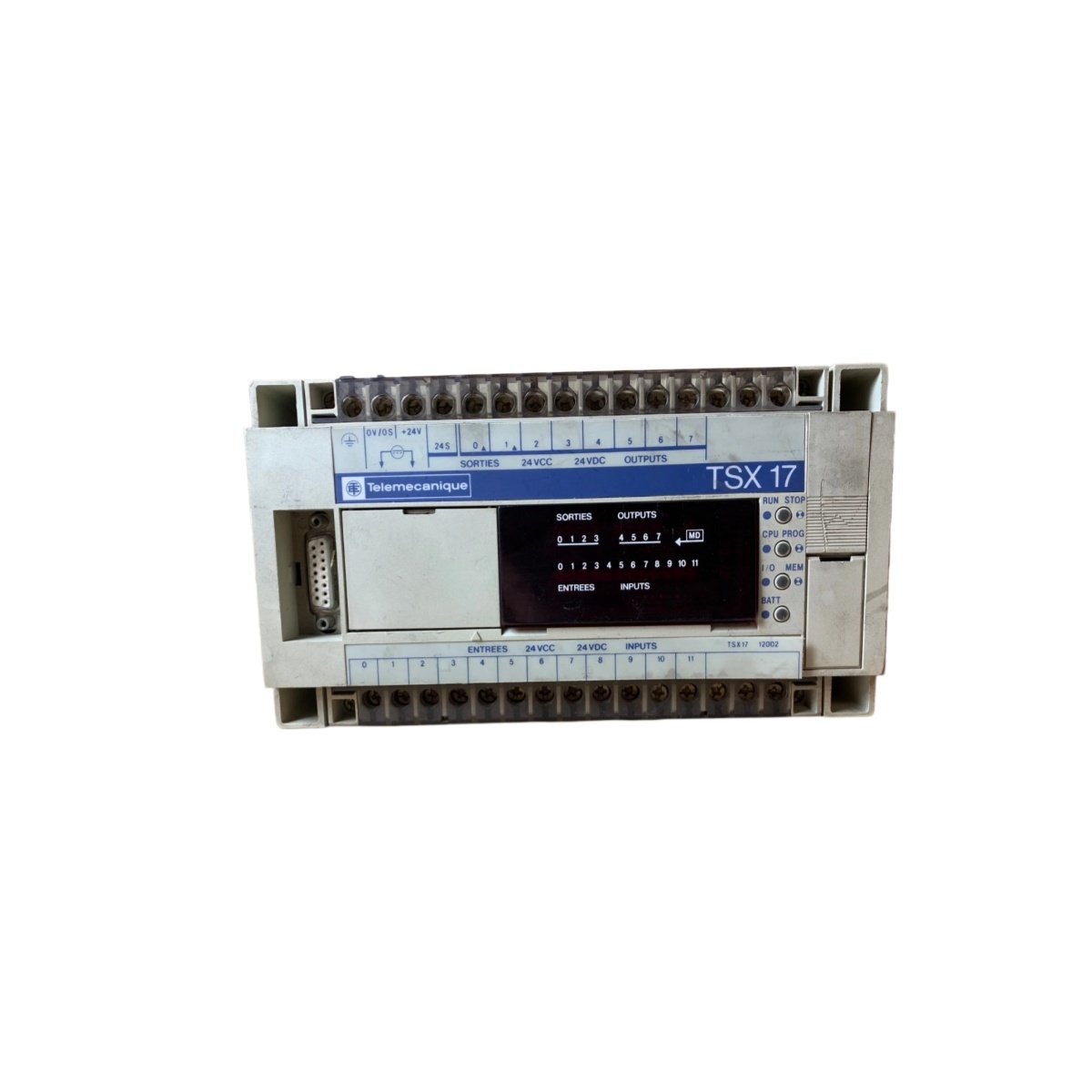

Technical Overview of the TSX1712002

This compact programmable logic controller delivers reliable logic control for small to medium-scale automation tasks. The TSX1712002 operates on a standard 24 VDC power supply for both its inputs and outputs. It provides 11 digital inputs and 7 digital outputs for versatile machine control applications. Its brick-style form factor features a space-saving design, making it ideal for control cabinets with limited room. Furthermore, the controller supports DIN rail mounting, which simplifies installation and ensures secure deployment. The TSX1712002 weighs approximately 0.3 kg, adding minimal weight to your panel configuration.

Specifications and Environmental Ratings

The TSX1712002 offers robust performance across a broad range of operating conditions. It functions reliably in ambient temperatures from 5 °C to 55 °C. Additionally, the unit can withstand storage temperatures between -25 °C and 70 °C. With an IP20 protection rating, the controller resists solid objects and dust ingress. Consequently, it is well-suited for typical industrial settings. For installation, you can mount this PLC at altitudes up to 2000 meters, demonstrating its versatility across different environments.

Technical Specifications

Application and Installation Guidance

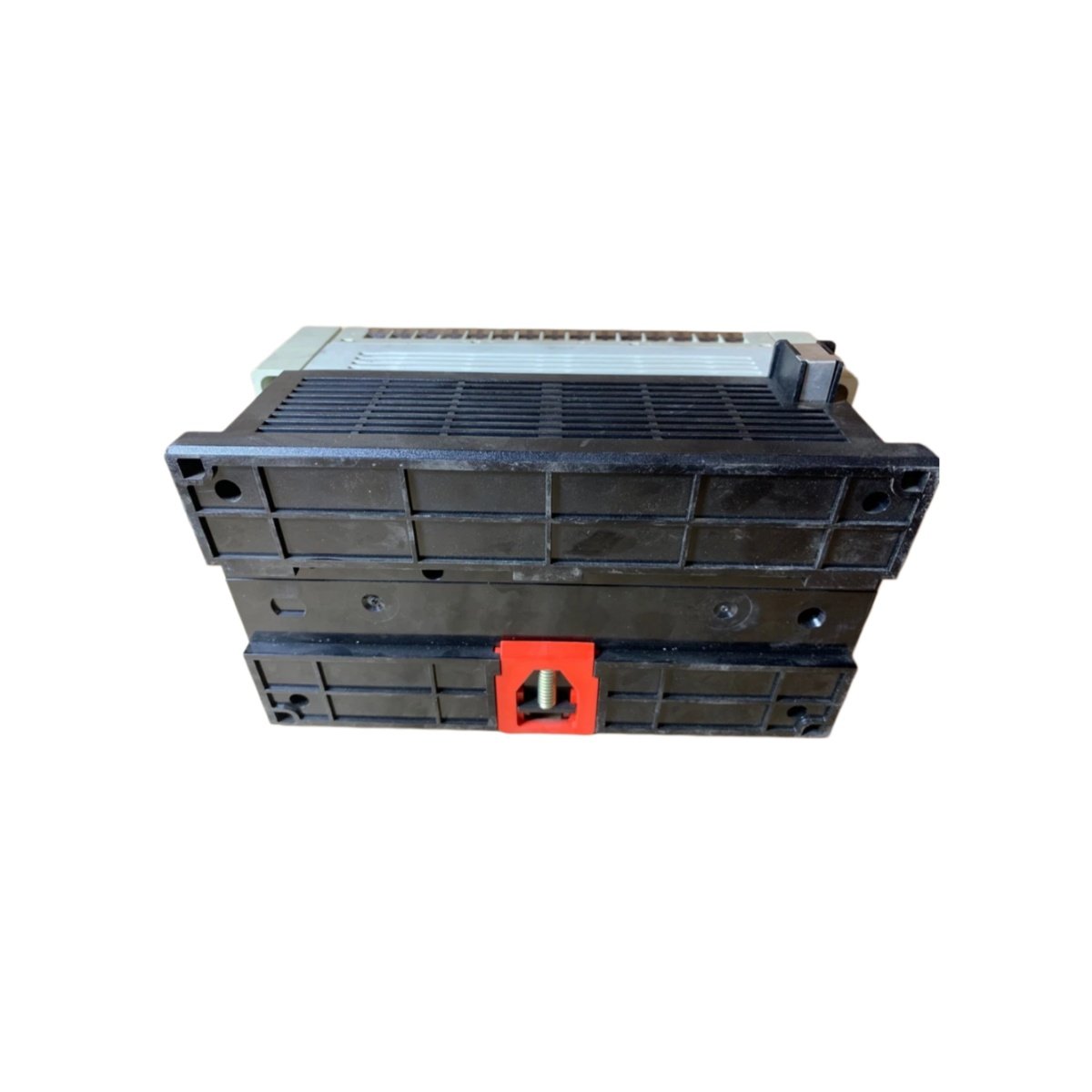

This PLC provides a reliable solution for machine control and discrete manufacturing systems. Before wiring, ensure the power supply remains disconnected. Mount the unit on a standard 35 mm DIN rail until it clicks securely into place. Above all, route signal cables away from high-voltage power lines to minimize electromagnetic interference. The TSX1712002 also adheres to the IEC 1131-2 standard for programmable controllers, guaranteeing high-quality international compliance.
