Integrated Controller for Small-to-Medium Automation Tasks

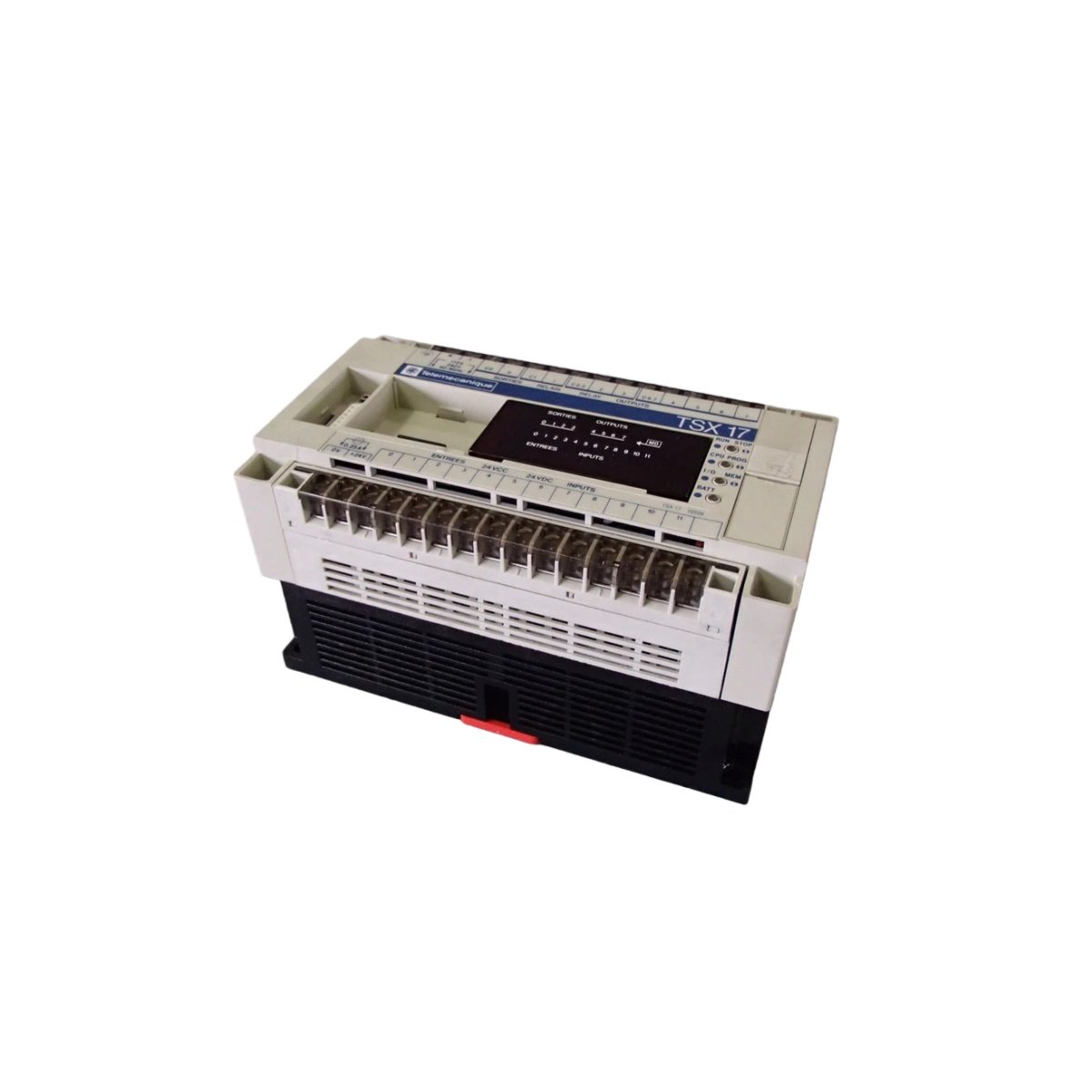

The TSX1702028 programmable controller combines a power supply, processor, and I/O into a single compact unit for space-constrained applications . This all-in-one design simplifies installation and reduces the overall system footprint. It belongs to the Modicon TSX 17 Micro family and serves as a reliable core for machine control and process automation. Moreover, this unit includes a built-in programming port for straightforward configuration and program uploads .
Technical Specifications
The table below details the key technical parameters for the TSX1702028 programmable controller.
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Product Type | Programmable Controller (Micro-PLC) |
| Series | Modicon TSX 17 Micro |
| Input Voltage | 110 to 240 V AC |
| Frequency | 50/60 Hz (47 to 63 Hz allowable range) |
| Discrete Inputs | 12 x 24 V DC (isolated) |
| Relay Outputs | 8 x relay outputs |
| I/O Total | 20 discrete I/O points |
| Program Memory | 8K bytes internal RAM (battery-backed) |
| Memory Cartridge Slot | Accepts EEPROM or EPROM cartridges |
| Sensor Supply Output | 24 V DC, 250 mA |
| Status Indicators | 5 LEDs for system and I/O status |
| Operating Temperature | 5 to 55 °C |
| Storage Temperature | -25 to 70 °C |
| Humidity | 30% to 95% (non-condensing) |
| Weight | Approx. 1.2 kg |
Configuration and Programming

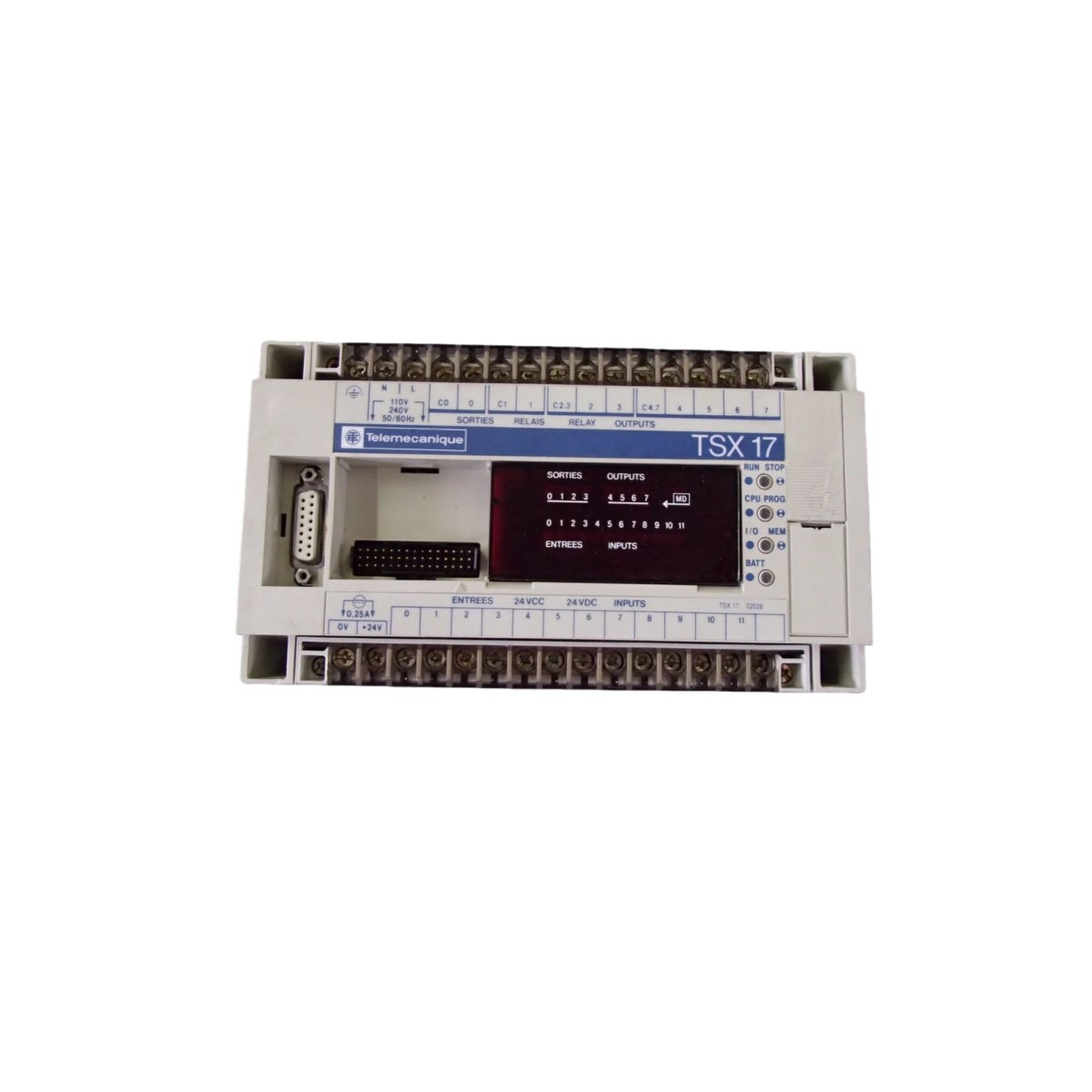

The TSX1702028 provides 8K bytes of internal RAM for user program storage and includes a battery to retain data for up to one year . It also features a slot for an optional EEPROM or EPROM memory cartridge, allowing users to save or transfer programs easily . The controller integrates 12 isolated 24V DC inputs and 8 relay outputs with clear front-panel status LEDs . Additionally, it supplies 24V DC sensor power at 250mA, enabling direct connection to field devices without an external power supply .
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 110 × 55 × 90 mm |
