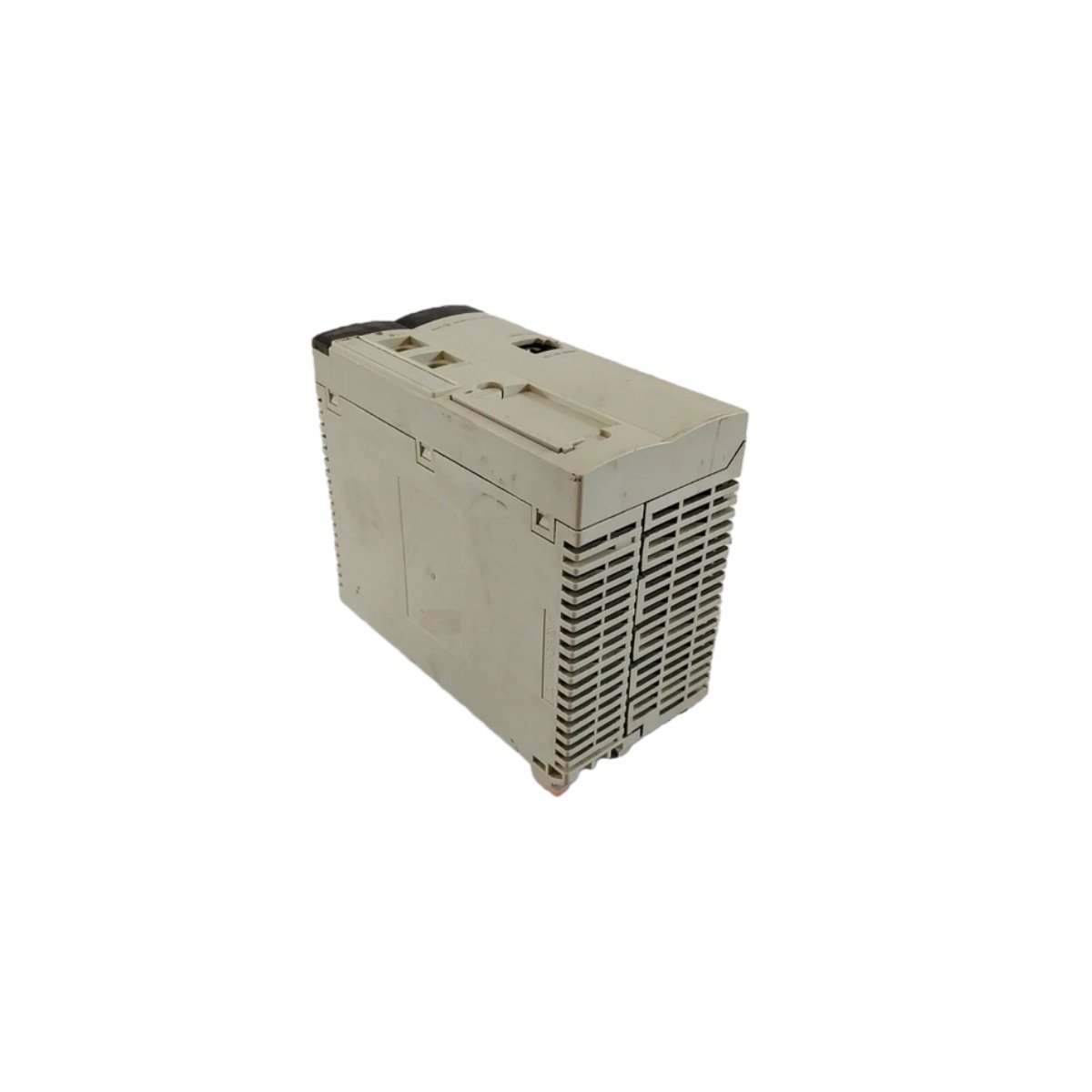

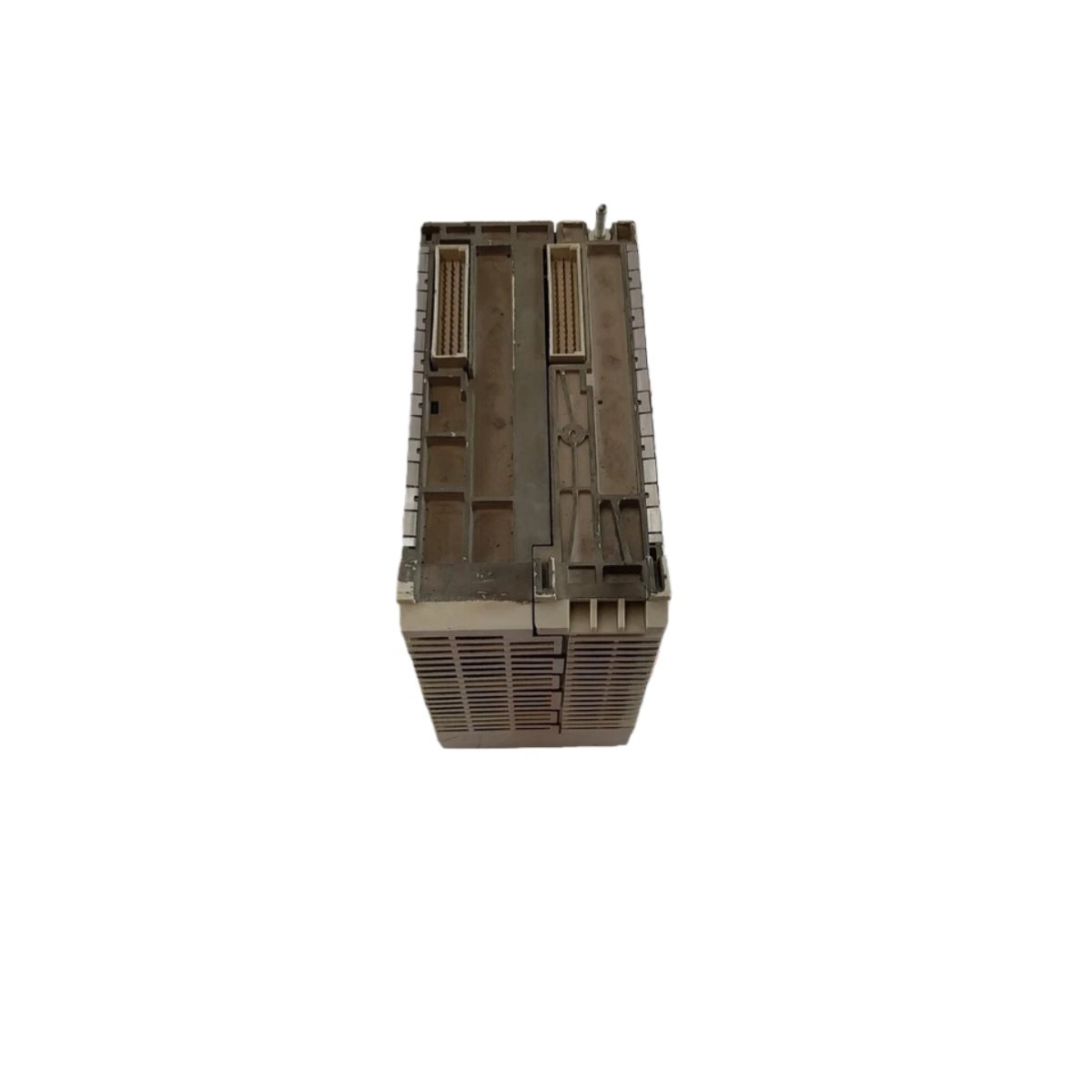

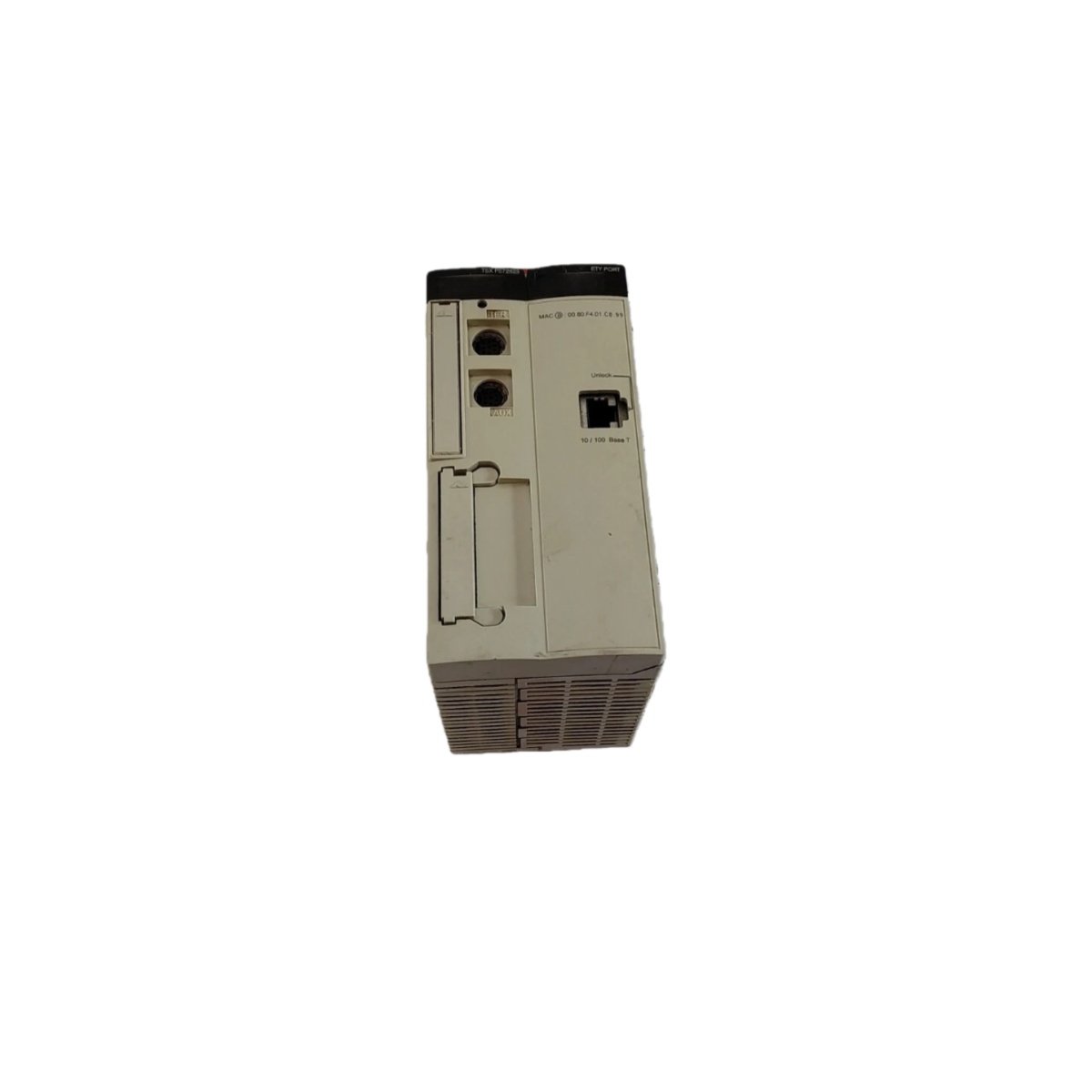

High-Performance Dual-Format Processor for Modicon Premium
The TSX P572623M serves as a dual-format PL7 processor for the Modicon Premium automation platform. This processor supports both local and remote I/O configurations and offers flexible system design . It executes complex control tasks using the PL7 programming environment. The TSX P572623M features two independent communication channels for networking flexibility. The dual-format design enables compatibility with multiple memory card types for expanded storage.
Technical Specifications
The table below details the key technical parameters for the TSX P572623M processor.
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Product Type | Dual-Format PL7 Processor |
| Series | Modicon Premium |
| Local I/O Capacity | Up to 1024 I/O |
| Remote I/O Capacity | Up to 2048 I/O |
| User Program Memory | 896 KB |
| Internal Memory | 112 KB |
| Integrated Communication Ports | Two (supports CANopen, Ethernet, or Modbus) |
| Power Consumption | 5 V DC, <1000 mA |
| Programming Software | PL7 Junior/Pro, Unity Pro |
| Dimensions (WxHxD) | 95 x 90 x 70 mm |
| Weight | Approx. 0.45 kg |
Performance and System Integration
The TSX P572623M combines two distinct processor modes in a single package, offering versatile control options. It supports both local racks (up to 1024 I/O) and remote stations (up to 2048 I/O) within the Premium architecture. For networking, you can equip this processor with dual communication ports that support CANopen, Ethernet, or Modbus . The PL7 environment provides intuitive programming for complex logic, motion control, and process automation . Furthermore, the dual-format architecture simplifies upgrades, eliminating the need for complete hardware replacement .
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 110 × 55 × 90 mm |
