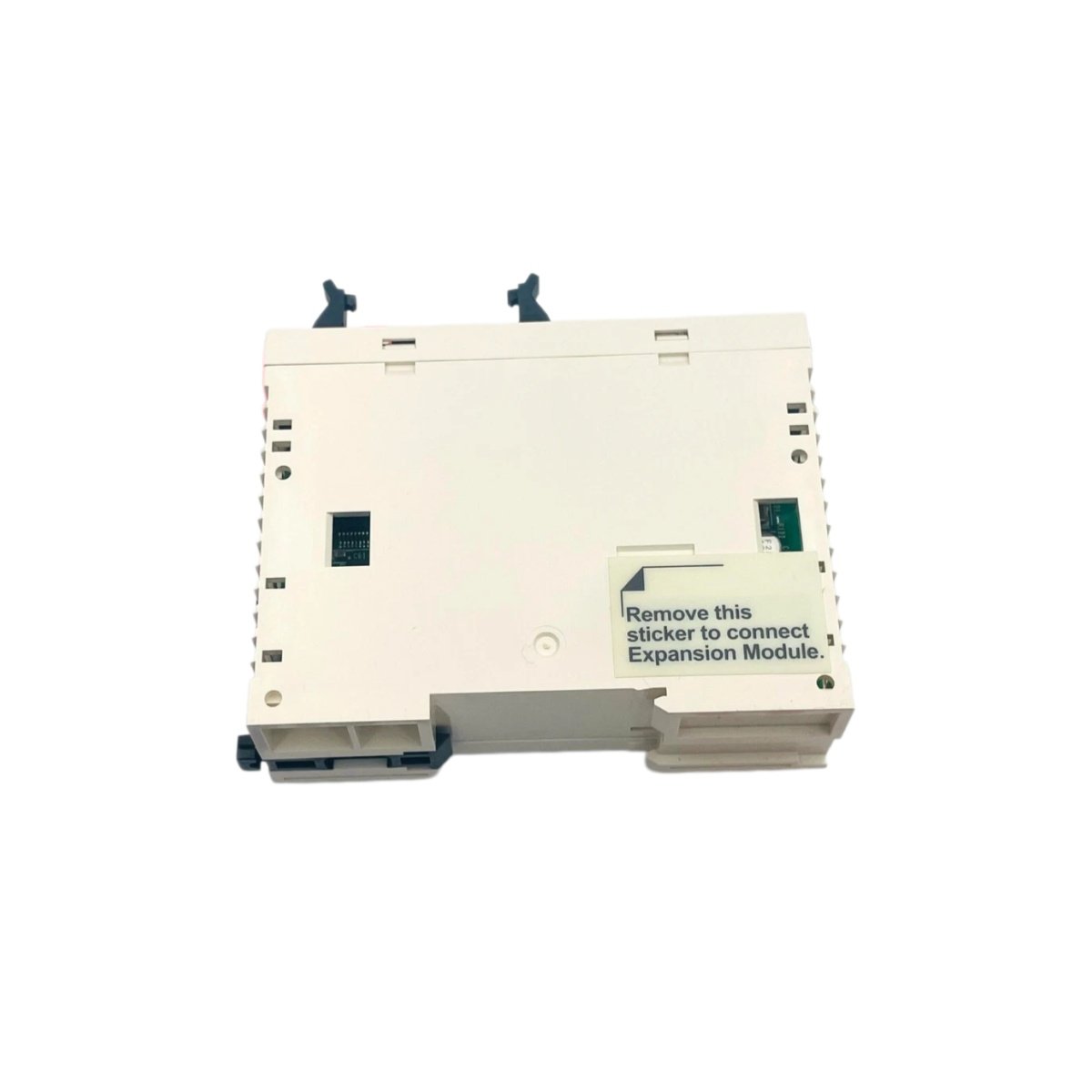

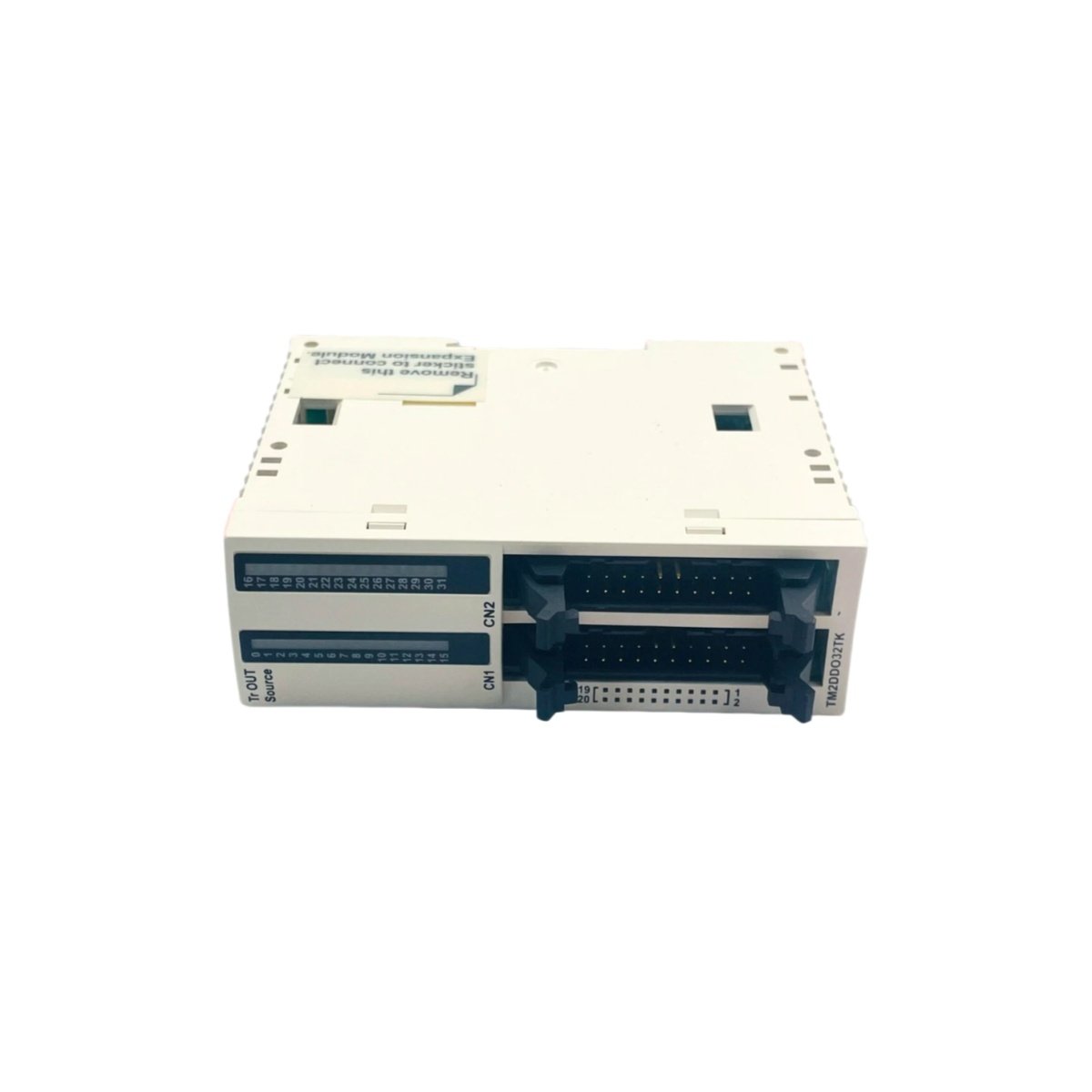

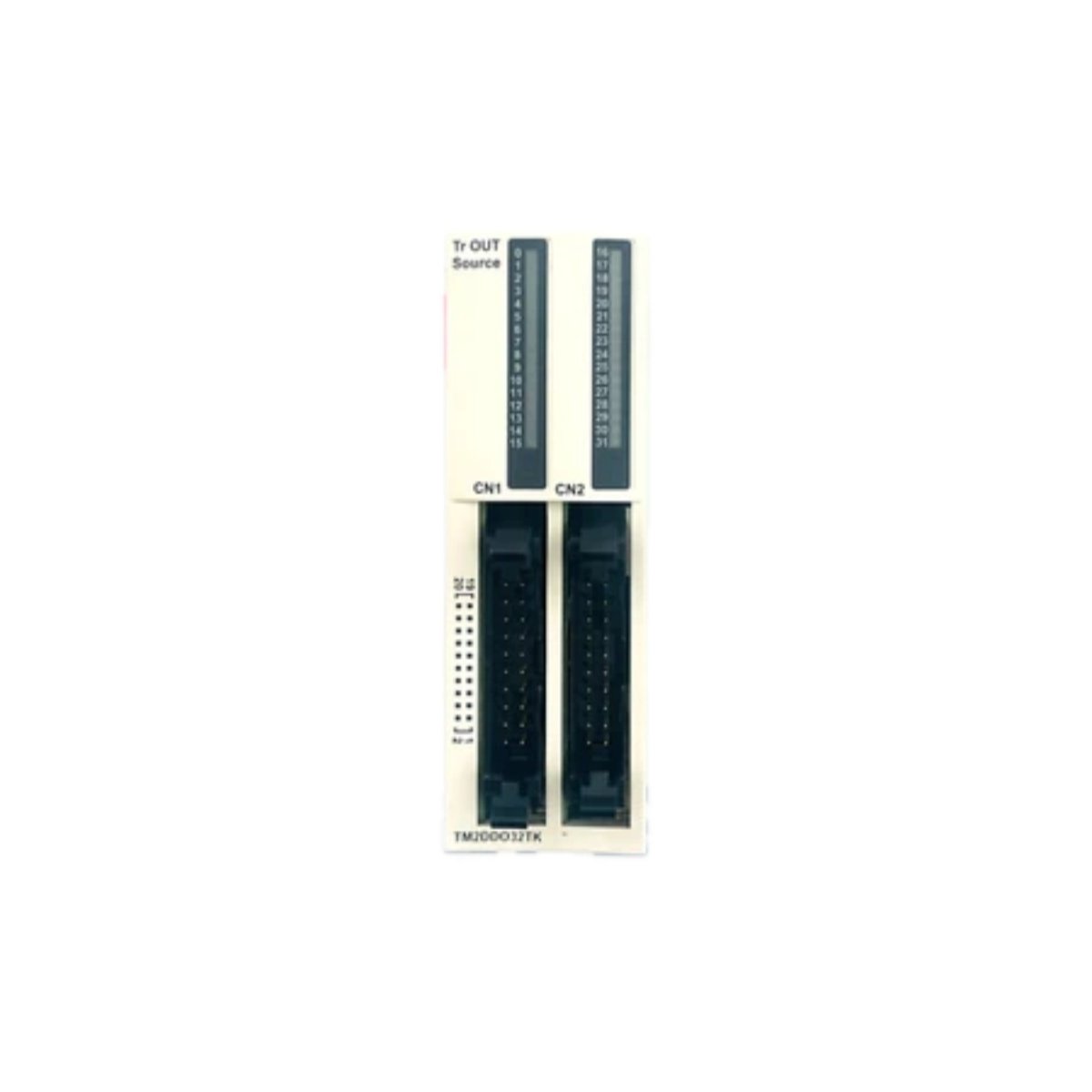

The Schneider TM2DDO32TK is a high-density discrete output module for the Modicon M200 and M221 PLC systems. This module provides 32 transistor outputs for driving DC loads such as solenoids, relays, and indicator lights. It delivers reliable switching performance with fast response times for demanding automation applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Discrete Output Module for Modicon M200/M221 |
| Number of Outputs | 32 channels |
| Output Type | Transistor, source configuration |
| Output Voltage | 24 V DC (nominal) |
| Output Current | 0.1 A per channel |
| Total Current | 3.2 A per module |
| Response Time | 100 µs (OFF to ON), 130 µs (ON to OFF) |
| Protection | Overcurrent, short-circuit, overtemperature |
| Isolation | 500 V AC (field-to-logic) |
| Power Consumption | 40 mA (from 5 V DC backplane) |
| Dimensions (W x H x D) | 30 mm x 90 mm x 85 mm |
| Weight | Approx. 0.12 kg |
| Operating Temperature | 0°C to 55°C |
| Protection Rating | IP20 |
Output Configuration and Performance
The Schneider TM2DDO32TK provides 32 independent transistor outputs for precise on/off control. Each channel delivers 0.1 A at 24 V DC, suitable for driving small solenoids and indicator lamps. The module’s fast response time of 100 µs ensures accurate timing for high-speed applications. Furthermore, it offers comprehensive protection against overcurrent, short-circuit, and overtemperature conditions.
Diagnostic and Monitoring Features
This discrete output module includes diagnostic features for enhanced system reliability. It detects open-circuit and short-circuit conditions on each output channel. LED indicators on the front panel provide visual status of each individual point. The module also supports feedback monitoring for verifying output state. Additionally, it reports channel faults back to the controller for quick troubleshooting.
System Integration and Applications
The Schneider TM2DDO32TK integrates seamlessly into the Modicon M200 and M221 ecosystems via the backplane bus. It supports configuration through EcoStruxure Machine Expert and SoMachine software. Users can hot-swap the module during operation for convenient maintenance. Typical applications include conveyor control, packaging machines, small assembly lines, and material handling systems.
Details
| Weight | 0.12 kg |
|---|---|
| Dimensions | 30 × 90 × 85 mm |
