Product Overview

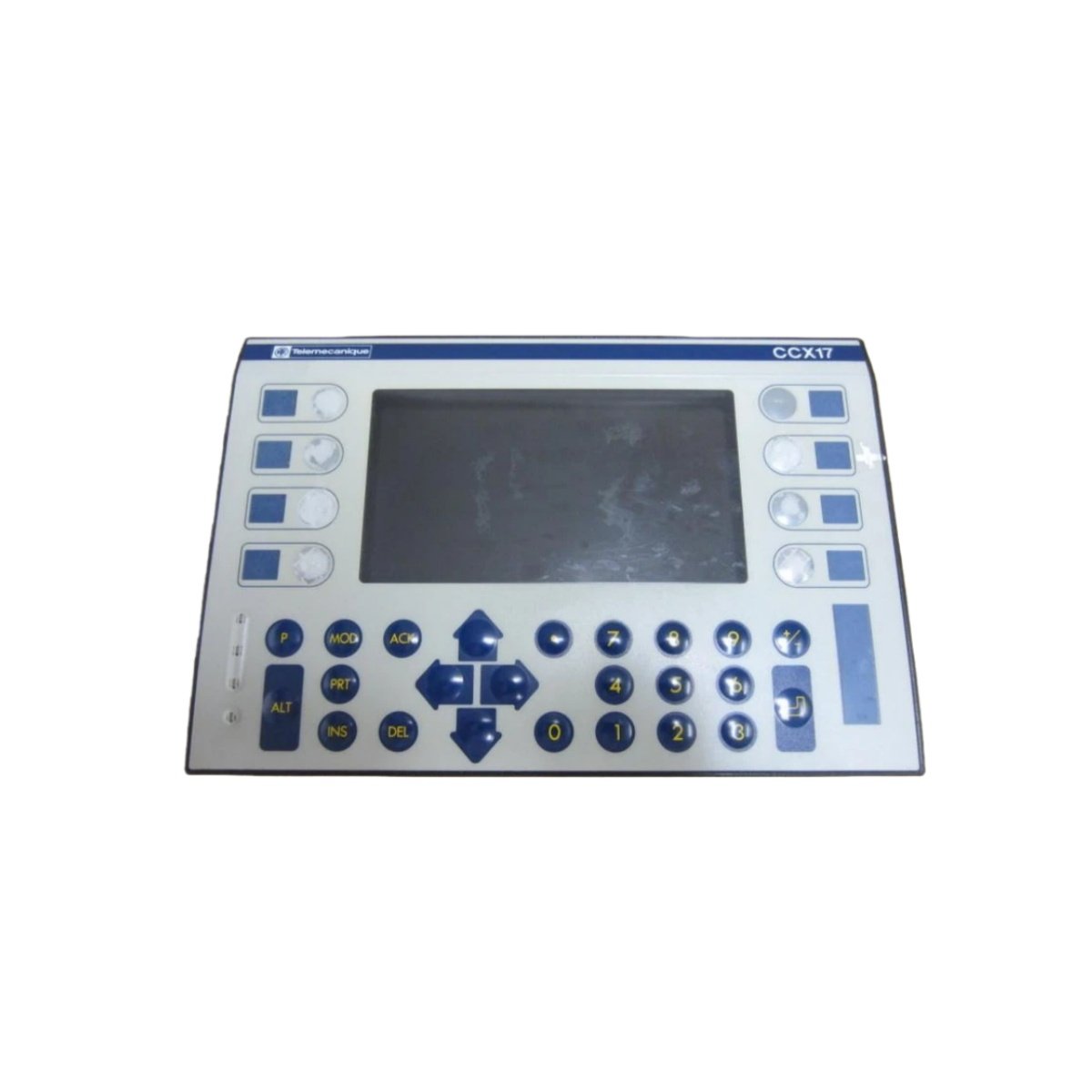

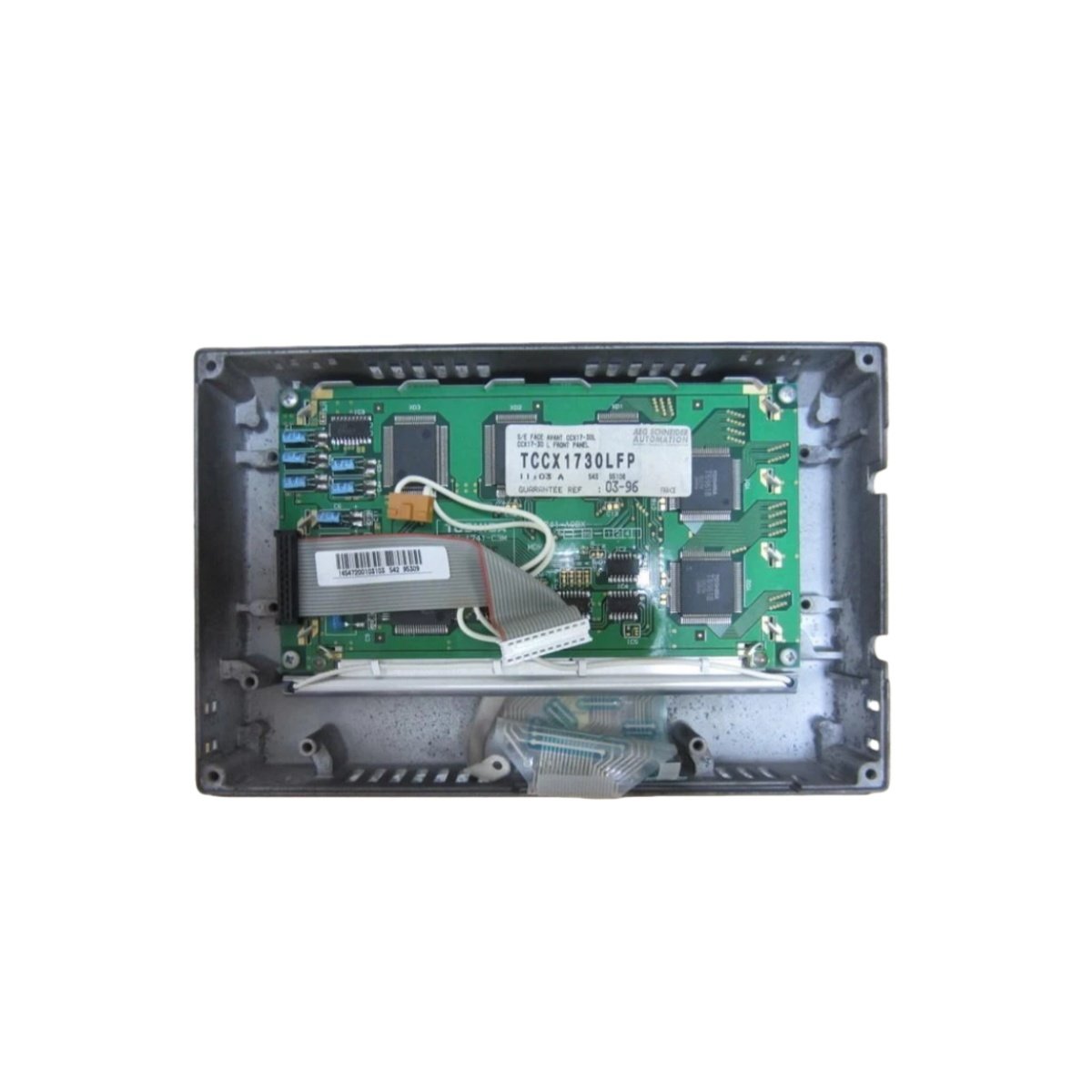

The Schneider TCCX1720L provides a user-friendly interface for machine control and monitoring. This operator panel displays critical process data and enables manual inputs for equipment operation. Factory operators rely on this unit for efficient machine interaction and real-time status updates. The panel’s robust design ensures reliable operation in demanding industrial conditions.
Technical Specifications
This operator panel features a high-visibility graphical display for clear data presentation. The Schneider TCCX1720L includes a membrane keypad with tactile feedback keys. Its compact housing fits standard control cabinet cutouts. The unit’s front bezel provides protection against dust and liquid ingress.
| Parameter | Specification |
|---|---|
| Product Type | Operator Panel / HMI Terminal |
| Series Compatibility | Schneider Modicon / Telemecanique |
| Display Type | Backlit LCD (graphical) |
| Screen Size | 5.7 inches (diagonal) |
| Resolution | 320 x 240 pixels (QVGA) |
| Display Colors | Monochrome (blue mode) |
| Backlight Lifetime | 50,000 hours typical |
| Number of Keys | 24 programmable membrane keys |
| Key Lifecycle | 1 million actuations minimum |
| Key Type | Tactile dome switches |
| Dimensions (W x H x D) | 210 mm x 150 mm x 50 mm |
| Weight | Approximately 0.80 kg |
| Energy Storage | 256 KB flash memory for screen configurations |
| Backup Battery | None (flash retains without power) |
| Protection Rating | IP65 (front face) |
| Communication Ports | 1 x RS-232C, 1 x RS-485 |
| Protocol Support | Modbus, Modbus Plus, Uni-Telway |
| Supply Voltage | 24 V DC (nominal) |
| Current Consumption | Maximum 0.35 A at 24 V DC |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +60°C |
| Humidity | 5% to 95% RH (non-condensing) |
Display and Visualization
The Schneider TCCX1720L presents process values, alarms, and system statuses effectively. Its high-contrast screen remains readable under various lighting conditions. The display supports text messages and simple graphical elements. Engineers configure screen layouts using dedicated configuration software.
Keypad Functionality
The membrane keypad includes dedicated keys for numeric entry and navigation. The Schneider TCCX1720L allows users to customize key assignments for specific machine tasks. Each key provides clear tactile feedback through integrated dome switches. The keypad supports operation even when users wear industrial gloves.
Configuration and Data Storage
The Schneider TCCX1720L stores all configuration data in non-volatile flash memory. This eliminates battery dependency and simplifies maintenance requirements. Users can download updated screen layouts from a PC-based engineering station. The panel’s memory supports multiple display pages and application-specific variables.
Application Scenarios
Machine builders integrate this panel on packaging lines, conveyor systems, and assembly stations. It also serves in material handling and test equipment applications. The Schneider TCCX1720L provides a cost-effective HMI solution for medium-scale automation.
Details
| Weight | 0.8 kg |
|---|---|
| Dimensions | 210 × 150 × 50 mm |
