Technical Overview

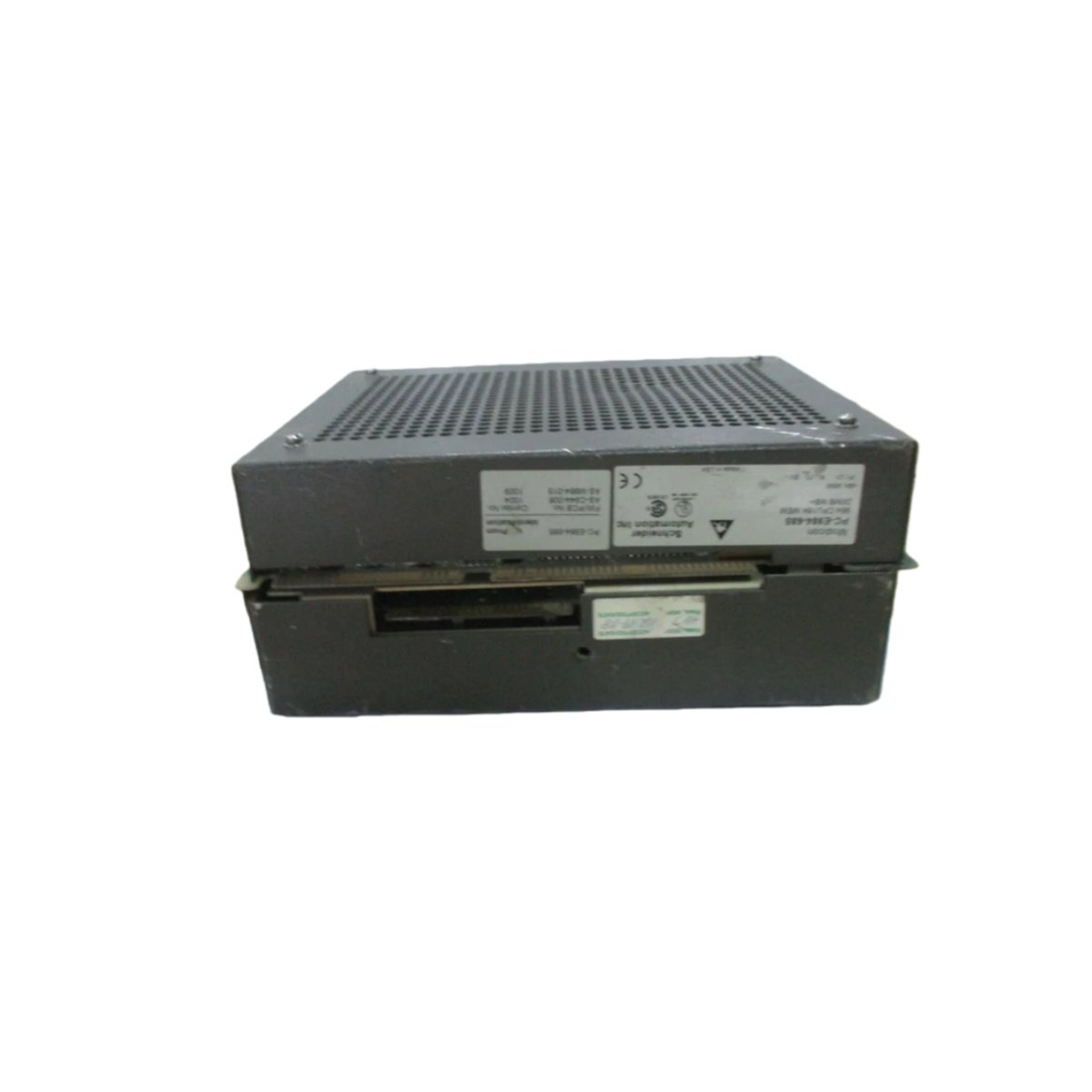

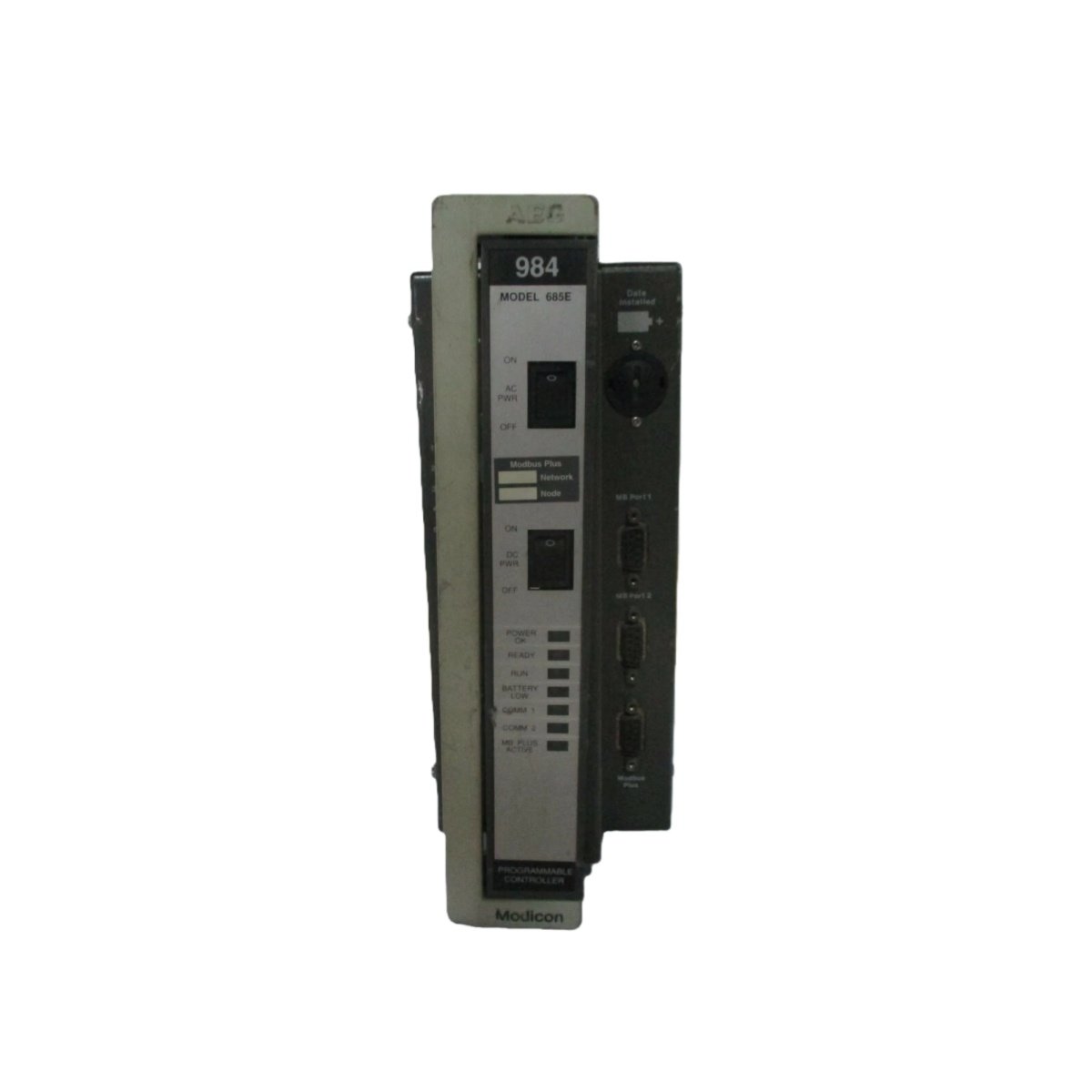

The Schneider PCE984685 programmable controller delivers robust logic execution for critical industrial processes. This compact unit supports both discrete and analog I/O configurations. It handles complex automation tasks with scan cycles under 10 milliseconds. The controller integrates seamlessly into existing Modicon 984 family architectures.

Core Processor and Memory Architecture

The controller features a 16-bit microprocessor running at 16 MHz. It provides 32 kilobytes of user-configurable RAM for application storage. A separate 8-kilobyte EEPROM retains critical data during power interruptions. The system uses battery-backed memory for retaining runtime variables. This design ensures program integrity across unexpected shutdowns.

I/O Capacity and Expansion Options

This programmable controller supports up to 256 discrete I/O points per rack. It accommodates 16 analog channels with 12-bit resolution. The unit offers four built-in high-speed counter inputs for encoder feedback. You can expand the system using remote I/O drops over coaxial cable. Each expansion adds 64 additional I/O points to the network.

Communication Interfaces and Protocols

The controller includes one RS-232 serial port for programming access. A second RS-485 port supports Modbus RTU master-slave communication. The unit also features a dedicated programming port for direct laptop connection. These interfaces allow data exchange with HMIs and SCADA systems. The Modbus protocol ensures compatibility with hundreds of third-party devices.

Physical Dimensions and Mounting Specifications

The module measures 250 millimeters in width and 180 millimeters in height. Its depth totals 80 millimeters including the front face. The unit weighs approximately 1.8 kilograms without optional batteries. It mounts directly on a standard DIN rail inside control cabinets. Four mounting clips secure the controller for vibration resistance.

Power Requirements and Energy Storage

The Schneider PCE984685 operates on 24 V DC nominal supply voltage. It draws 500 milliamperes under full load conditions. The internal power supply includes transient voltage suppression for surge protection. A replaceable lithium battery maintains real-time clock and RAM data. This battery provides backup power for up to six months.

Environmental Ratings and Operating Conditions

The controller functions reliably between 0°C and 55°C ambient temperatures. It withstands humidity levels from 5% to 95% non-condensing. The unit meets IEC 61131-2 standards for industrial electromagnetic compatibility. Its enclosure offers IP20 protection against solid objects. The design excludes moving parts for enhanced long-term reliability.

Diagnostic and Status Indication

Three LED indicators display power, run, and fault status at a glance. A four-character alphanumeric display shows error codes for troubleshooting. The controller logs the last 100 system events in non-volatile memory. This diagnostic capability reduces mean time to repair significantly. Operators can retrieve fault logs via the programming software.
