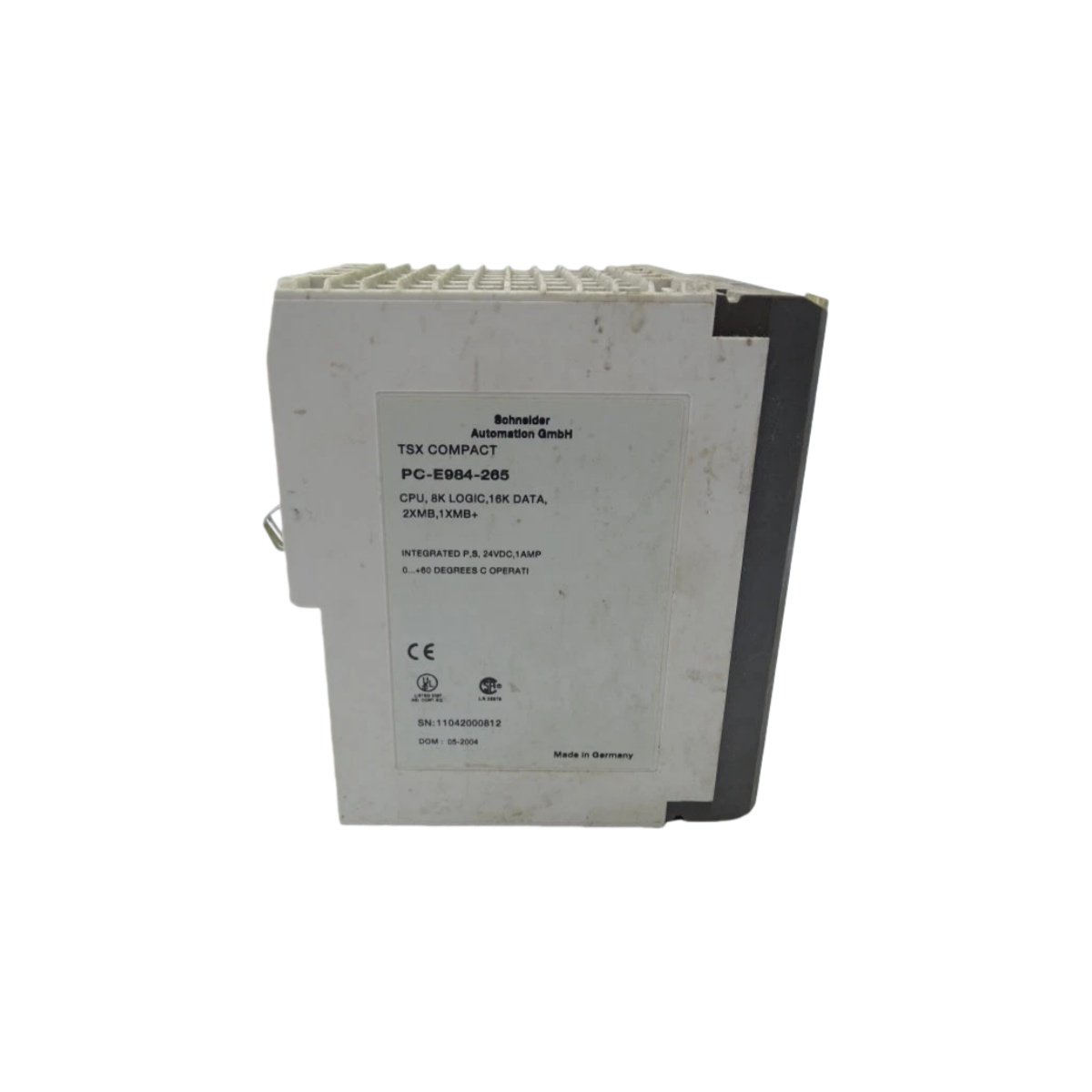

The Schneider PCE984265C is a central processing unit for the Modicon TSX Compact PLC platform. This compact controller serves small to medium-scale automation applications efficiently . The processor module offers 512K of memory and includes an integrated 386-class controller . Its modular architecture supports flexible system expansion and easy configuration .
Technical Specifications
The Schneider PCE984265C features 512K of Flash RAM and 8K words of user memory . The CPU supports 16K words of State RAM with a total memory capacity of 24K words . It provides 128K words of configurable SDA 6X registers for data storage . The module integrates two Modbus ports and one Modbus Plus port for versatile networking . The “C” suffix indicates conformal coating for enhanced protection against harsh conditions. The unit operates across an extended temperature range of -40 °C to 70 °C .
Key Technical Data
| Parameter | Specification |
|---|---|
| Brand | Schneider Electric |
| Product Type | TSX Compact CPU Module |
| Model | PCE984265C |
| Processor | 386-class controller |
| Flash RAM | 512K |
| User Memory | 8K words |
| State RAM | 16K words |
| Configurable Registers | 128K words (SDA 6X) |
| Modbus Ports | 2 |
| Modbus Plus Ports | 1 |
| Protection | Conformal coating |
| Operating Temperature | -40 °C to 70 °C |
| Compatibility | Modicon TSX Compact, Modicon Quantum |
Connectivity and System Integration
The Schneider PCE984265C integrates seamlessly into TSX Compact and Modicon Quantum systems. The Modbus ports enable communication with operator terminals, computers, and other PLCs . Modbus Plus support provides high-speed networking for distributed applications. The CPU supports both IEC programming languages and the enhanced 984 instruction set . An InterBus interface allows remote I/O connectivity with Compact and Momentum I/O modules . It can also operate as a slave on Quantum InterBus networks.
Environmental Protection and Applications
The conformal coating on the Schneider PCE984265C protects the module in extreme environments. The wide operating temperature range supports outdoor and cold storage applications. The module’s high noise immunity and shock resistance ensure reliable performance in industrial settings . It is ideally suited for demanding applications including compressor control, conveyor systems, and water treatment. The Schneider PCE984265C provides a robust solution for oil and gas pipeline control and substation automation .
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 110 × 55 × 90 mm |
