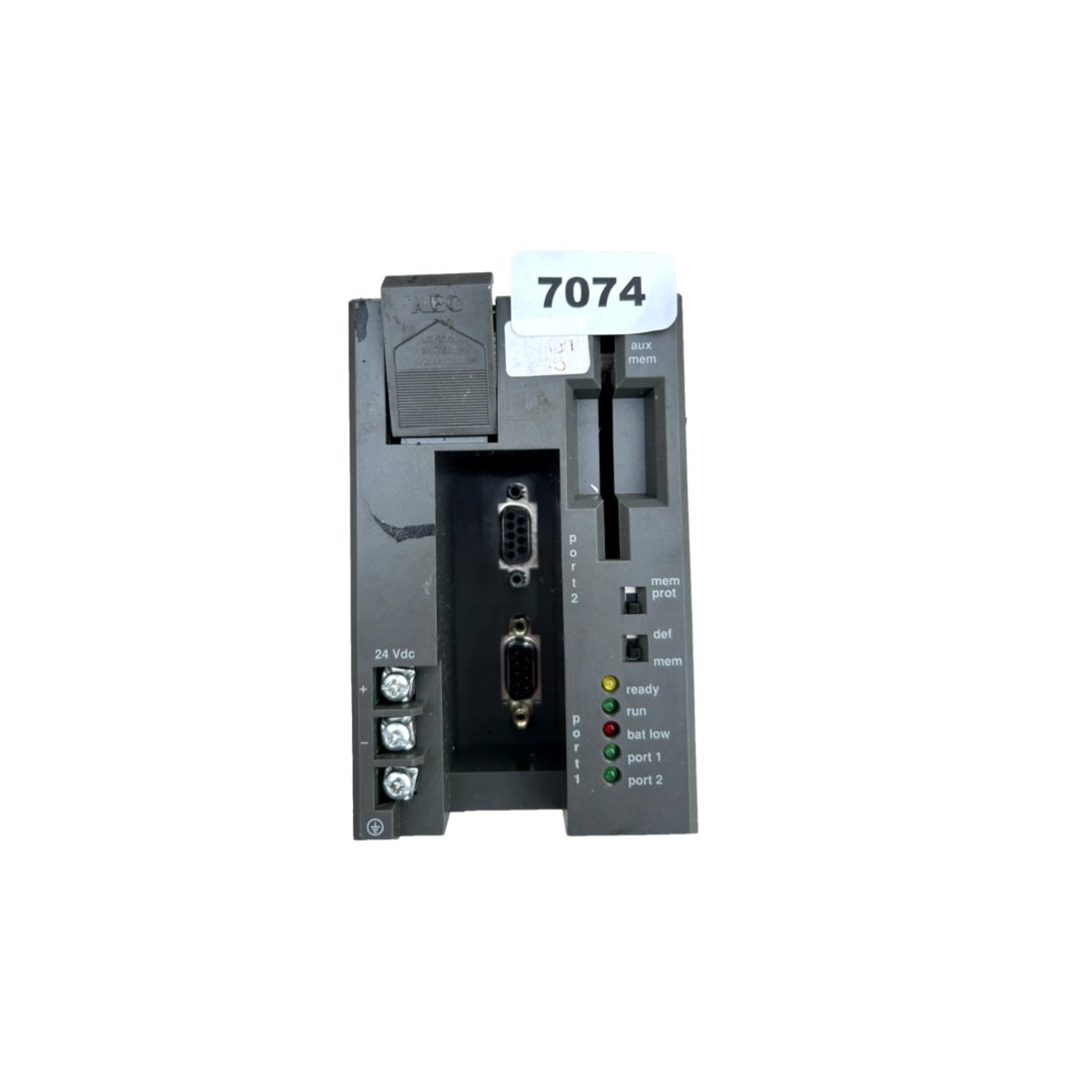

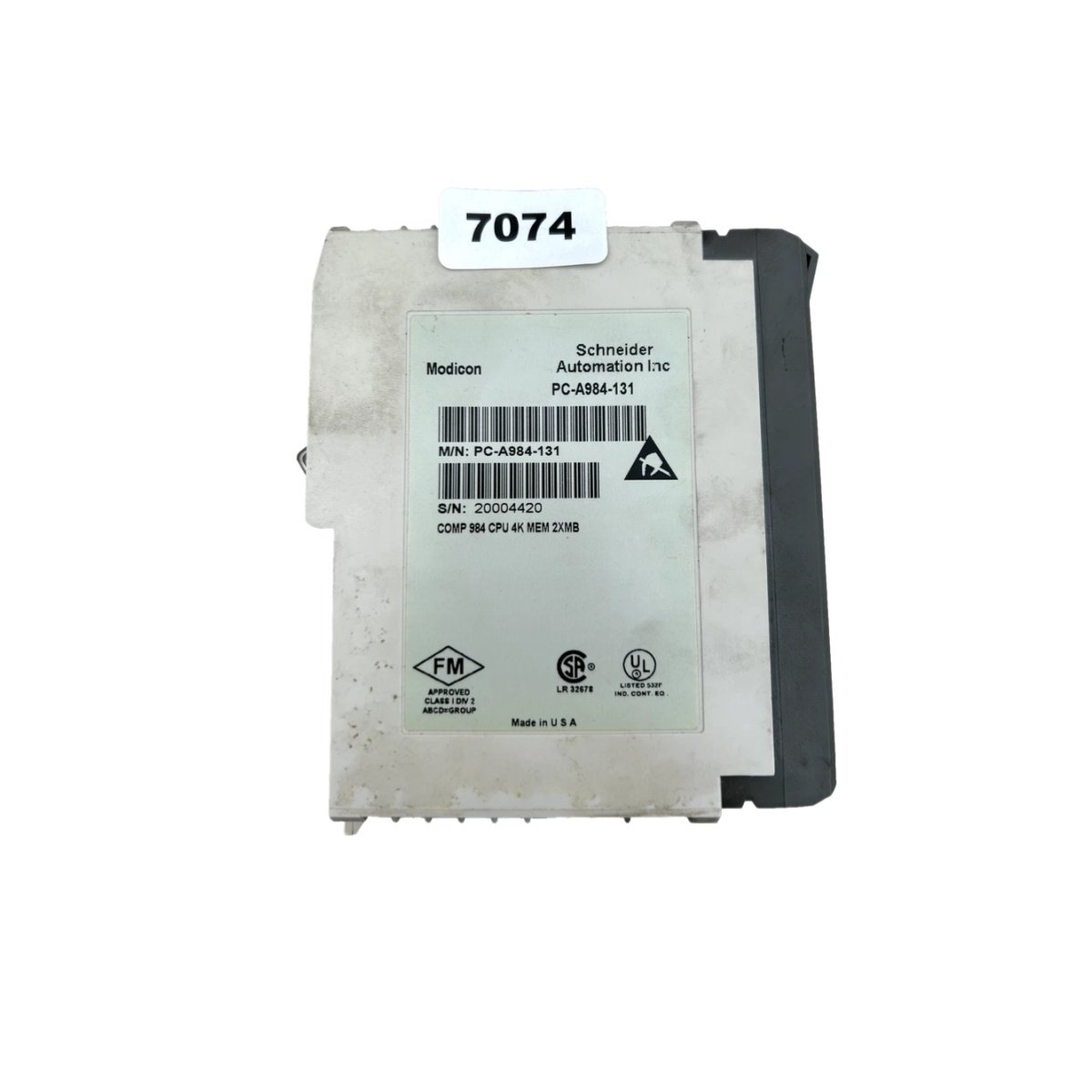

The PCA984131 CPU module delivers high-performance processing for Modicon 185 Base Compact automation platforms. Schneider Electric engineered this 16-bit processor to execute complex logic operations with exceptional speed and reliability. Engineers integrate this module seamlessly into manufacturing, packaging, and material handling systems.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Schneider Electric |
| Model | PCA984131 |
| Series | RMS-TSG-TZ-C / 185 Base Compact |
| Category | CPU Module |
| Processor Type | 16-bit PLC CPU |
| Processor Speed | 8 MHz |
| User Logic Memory | 4K words |
| Signal Memory | 2K words |
| Total Memory | 6K words |
| Communication Ports | 2x Modbus |
| Maximum I/O Capacity | 800 points |
| Power Supply | 24 VDC |
| Cycle Time | 1 ms typical |
| Dimensions | 183 x 127 x 41 mm |
| Weight | 0.41 kg |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 75°C |
| Certifications | CE, UL, RoHS |
Key Features and Benefits
This CPU module provides 4K words of user logic memory for complex PLC programs . The 8 MHz processor executes instructions rapidly while maintaining consistent 1ms cycle times . Consequently, the module handles demanding control loops without performance degradation.
Additionally, the PCA984131 supports two Modbus communication ports for flexible network integration . The EEPROM slot accommodates 8-byte or 32-byte memory modules for customized data storage . Furthermore, the compact 185 Base design reduces panel space requirements significantly.
Applications and Compatibility
This processor excels in material handling, packaging, and textile machine applications . It manages up to 800 I/O points for comprehensive system control . The module interfaces directly with sensors, actuators, and other 185 Base Compact modules.
Details
| Weight | 0.41 kg |
|---|---|
| Dimensions | 183 × 127 × 41 mm |
