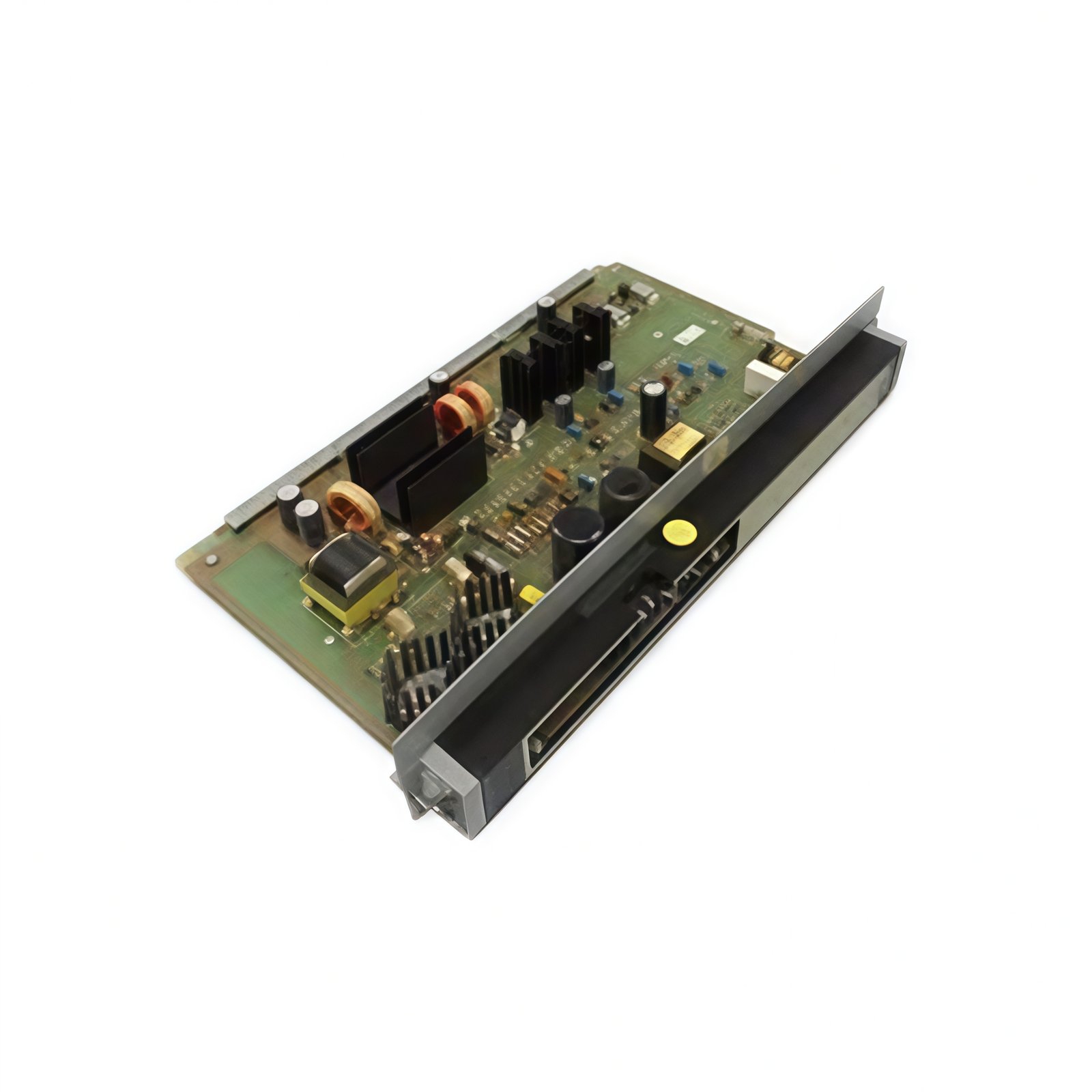

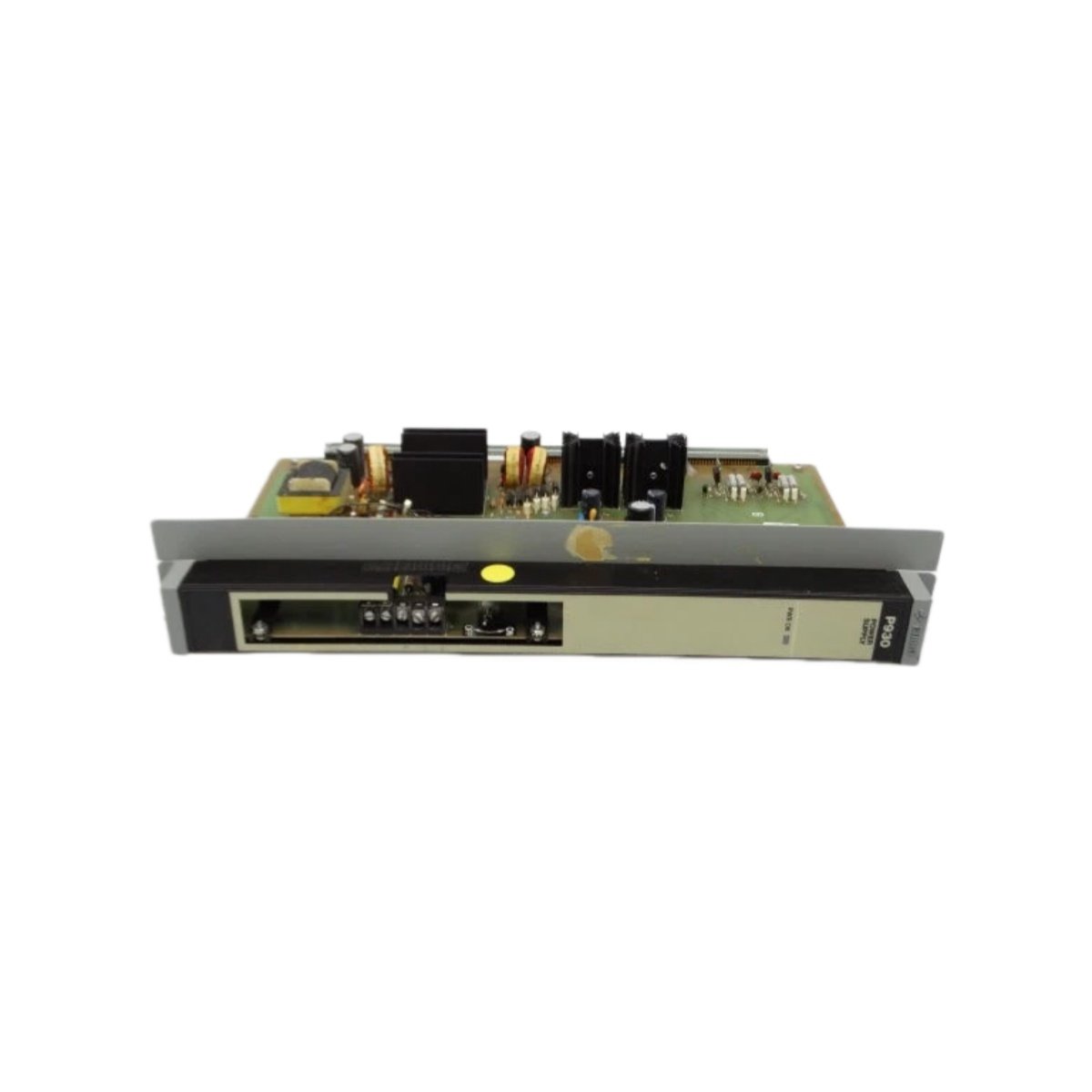

The P930 interface board delivers reliable signal processing for Schneider automation platforms. Schneider Electric engineered this module to handle communication tasks between control systems and peripheral devices. Engineers value its stable performance and straightforward integration into existing control architectures.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Schneider Electric |
| Model | P930 |
| Series | RMS-TSG-TZ-C |
| Category | Interface Board |
| Input Voltage | 24 VDC |
| Power Consumption | 2 W maximum |
| Isolation | 600 VAC channel isolation |
| Communication Protocol | Modbus RTU, DeviceNet |
| Analog Inputs | 4–20 mA, 0–10 VDC |
| Digital Contacts | 2 Form C relays |
| Relay Rating | 250 VAC / 3 A |
| Dimensions | 115 x 110 x 45 mm |
| Weight | 0.35 kg |
| Mounting Type | DIN rail mount |
| Protection Class | IP20 |
| Operating Temperature | -20°C to +70°C |
| Certifications | CE, UL, RoHS |
Key Features and Benefits
This interface board supports multiple communication protocols for flexible system integration. The 600V isolation protects control circuits from electrical interference in demanding environments. Consequently, signal integrity remains stable across industrial applications.
The P930 provides four analog input channels with configurable current or voltage ranges. Additionally, two Form C relay contacts enable alarm and interlock functions. The compact DIN rail design simplifies installation in crowded control cabinets.
Applications and Compatibility
This module excels in distributed control systems and process automation environments. It connects field instruments to main control processors through standard industrial protocols. Furthermore, the board supports power generation, chemical processing, and manufacturing applications.
Details
| Weight | 0.25 kg |
|---|---|
| Dimensions | 130 × 100 × 20 mm |
