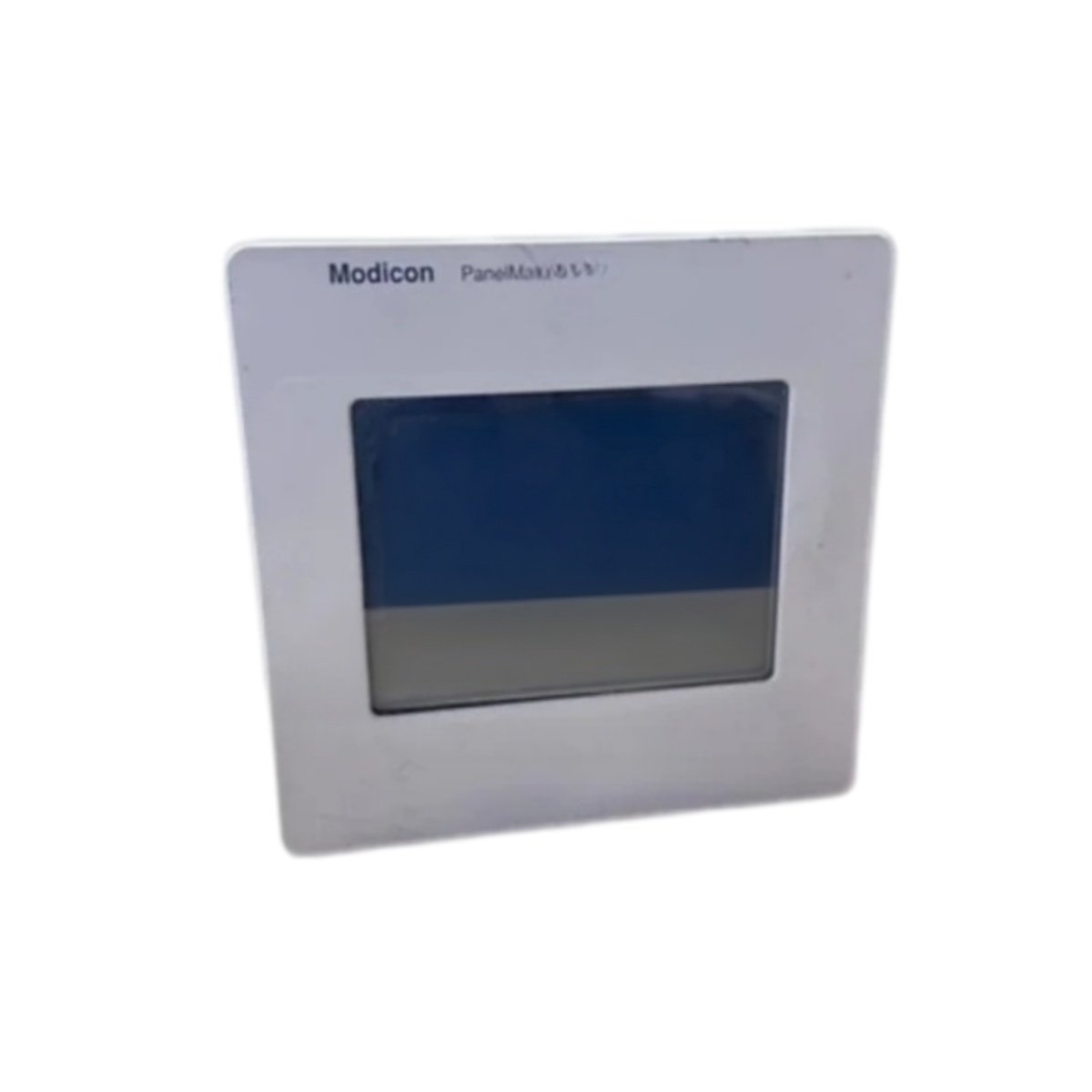

The MMPMD24TOC serves as an operator interface terminal within Schneider’s PanelMate HMI lineup. This unit measures about 11.4 inches wide, 8.7 inches tall, and 2.4 inches deep. Moreover, it weighs roughly 3.5 pounds, which suits panel-door mounting. Operators rely on the MMPMD24TOC for clear process visualization and responsive touch control.
Technical Specifications and Interface Details
The terminal combines a color display with a resistive touchscreen overlay for durable input. Specifically, it offers a 10.4-inch active matrix screen with 640 x 480 resolution. Additionally, the front panel meets NEMA 4 ratings for washdown protection. Rear connectors provide serial and network links to PLC hardware.
| Parameter | Specification |
|---|---|
| Module Type | HMI Interface Terminal |
| Display | 10.4 in color TFT |
| Resolution | 640 x 480 pixels |
| Touchscreen | Resistive, analog |
| Dimensions | 11.4 x 8.7 x 2.4 in |
| Weight | ~3.5 lbs |
| Rating | NEMA 4 front panel |
| Interfaces | Serial and network ports |
| Power | 24 VDC nominal |
Energy Storage and Display Stability
Internal capacitors on the MMPMD24TOC provide local energy storage for stable backlight drive. Consequently, the display resists flicker during supply fluctuations on the plant floor. This buffering also protects configuration memory during brief outages. The design therefore supports consistent screen performance across long shifts.
Installation and Compatibility Notes
Because the MMPMD24TOC mounts through a standard panel cutout, technicians finish installation quickly. They should confirm gasket seating before they tighten the mounting clips. Furthermore, the terminal communicates with many PLC families through configurable drivers. Always store spare units in anti-static packaging to protect sensitive electronics.
Details
| Weight | 0.15 kg |
|---|---|
| Dimensions | 110 × 72 × 38 mm |
