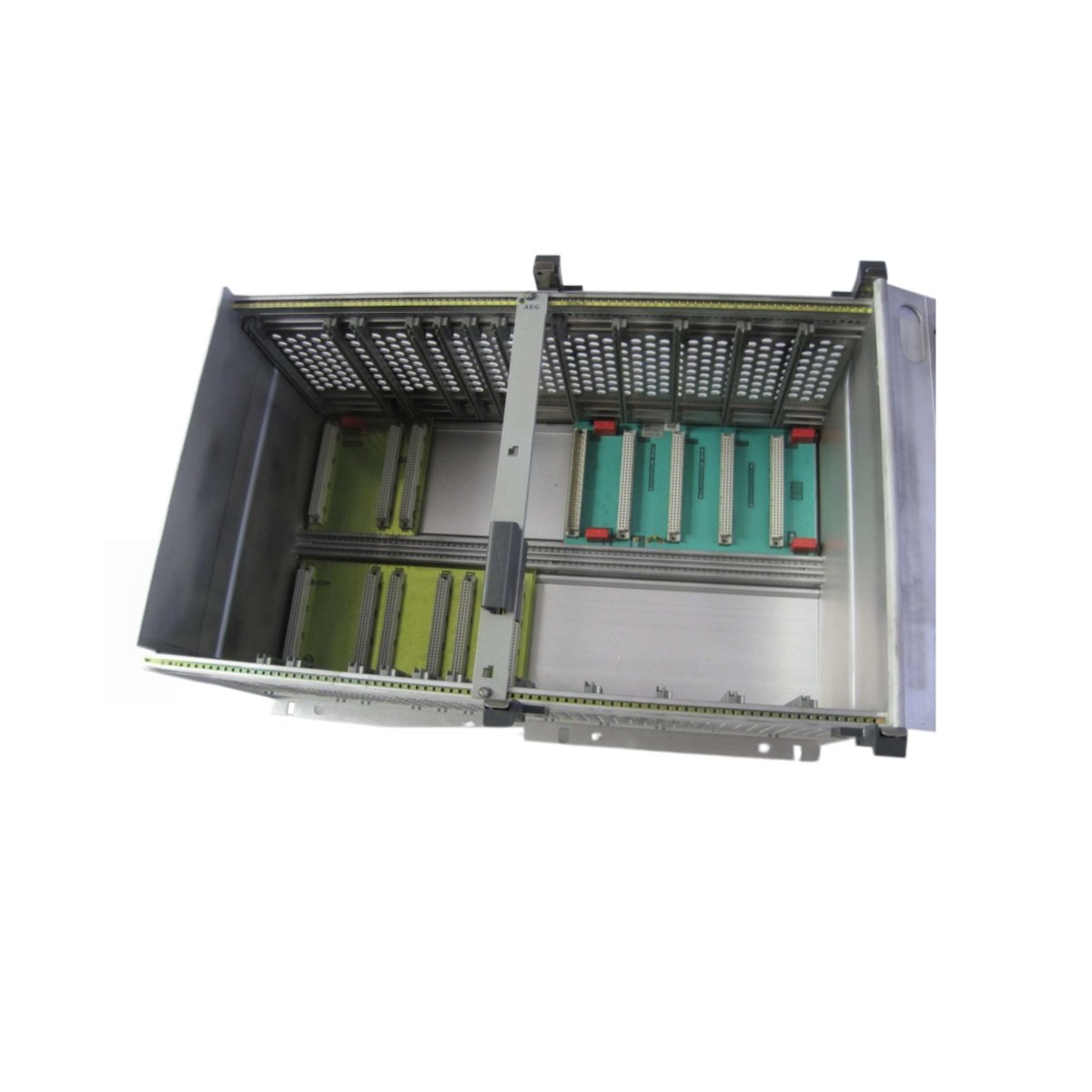

High-Precision 4-Channel Output for Modicon A250, A350, and A500 Systems
The DTA 150 serves as a high-performance analog output module within Schneider Electric’s Modicon process automation platform. Engineers deploy this unit to deliver precise voltage or current signals to actuators, valves, and drives. Consequently, the module enables accurate closed-loop control across manufacturing and process environments.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | DTA 150 |
| Manufacturer | Schneider Electric (AEG) |
| Product Type | Analog Output Module |
| Output Channels | 4 Analog Outputs |
| Output Voltage Range | 0–10V DC |
| Resolution | 16 bits |
| Output Accuracy | ±0.1% of Full Scale |
| Conversion Time | 1 ms per channel |
| Power Supply | 24V DC |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Mounting Type | Rack Mountable |
| Communication Protocols | Modbus RTU, Profibus DP |
| Protection Class | IP20 |
| Operating Altitude | Up to 2,000 meters |
| Weight | 1.11 kg (2.45 lbs) |
| Protection Features | Overvoltage, Overcurrent |
| System Compatibility | Modicon A250, A350, A500 |
Analog Output Performance
The DTA 150 delivers 16-bit resolution across all four output channels simultaneously. Conversion time reaches just 1 millisecond per channel for responsive control execution. Therefore, the module suits high-speed applications requiring precise signal generation and minimal latency.
Configuration and Wiring
Jumpers K1 through K8 configure each channel for voltage or current output independently. The module accepts shielded twisted-pair cables of 2 × 0.5 mm² per channel. Additionally, engineers should maintain distances greater than 0.5 meters from power supply lines to minimize electromagnetic interference .
System Integration and Diagnostics
The DTA 150 operates seamlessly with Modicon A250, A350, and A500 programmable controllers. Two LED indicators provide immediate status feedback for external power supply and module readiness. Furthermore, the watch-dog relay monitors internal processing integrity for reliable fault detection .
Details
| Weight | 0.25 kg |
|---|---|
| Dimensions | 130 × 100 × 20 mm |
