Core Technical Specifications

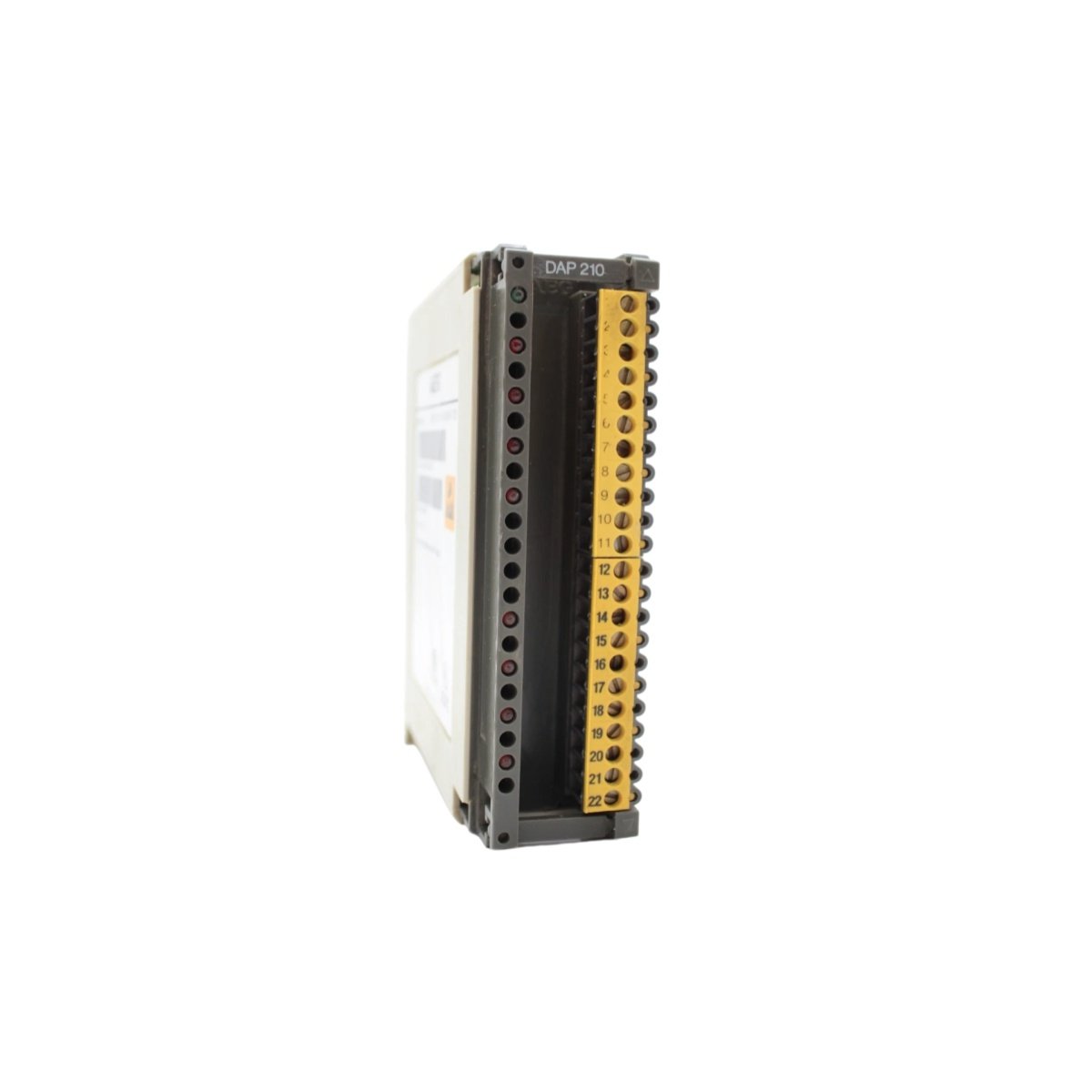

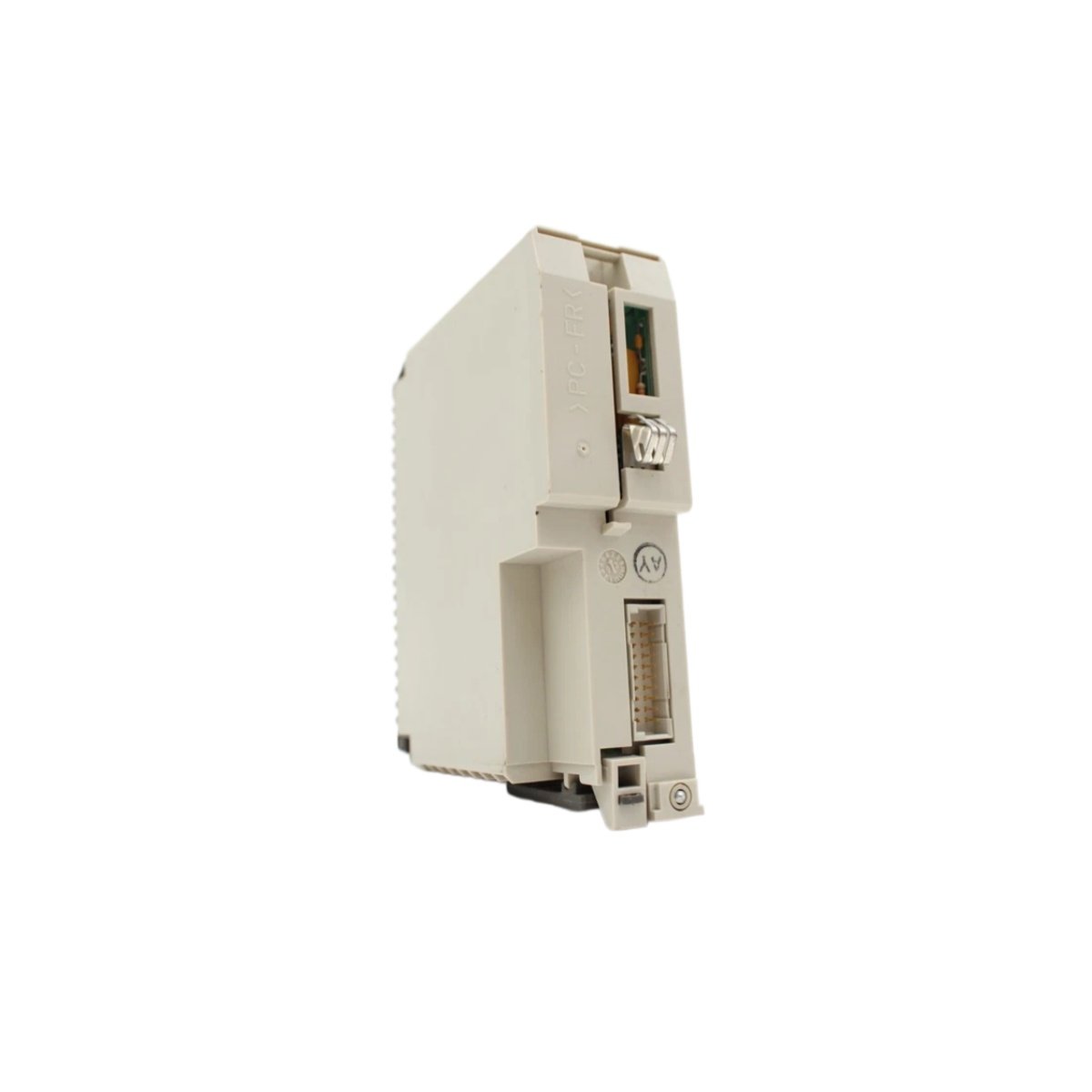

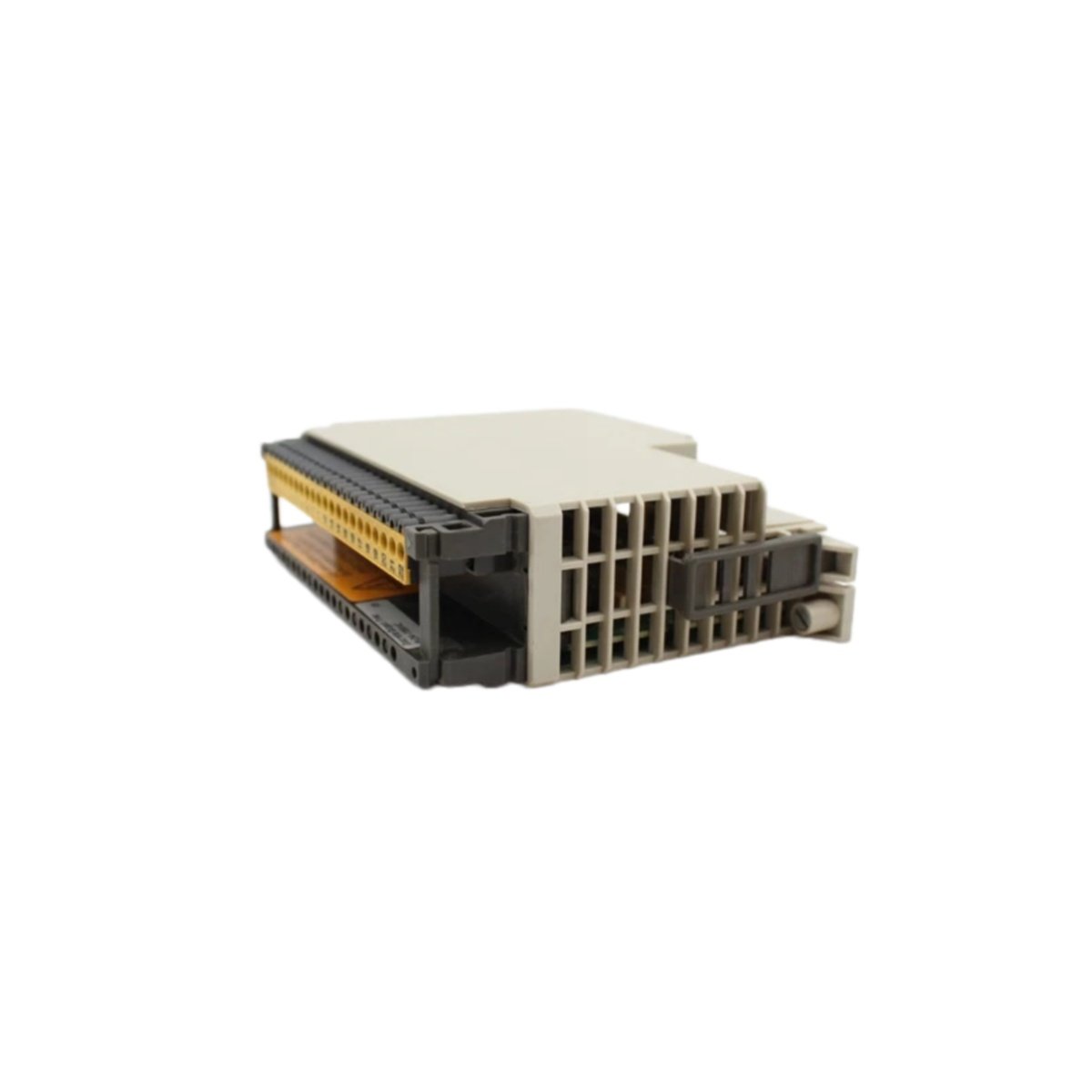

This discrete output module delivers precise and robust control for your automation system. We engineered the DAP 210 to drive various actuators with high reliability.
| Parameter | Specification |
|---|---|
| Product Type | Discrete Output Module |
| Dimensions | 99 mm x 114 mm x 70 mm (W x H x D) |
| Weight | 0.38 kg |
| Supply Voltage | 24 V DC nominal (range: 20.4 V to 28.8 V) |
| Output Channels | 8 isolated discrete outputs |
| Output Type | Solid-state, sourcing |
| Output Current | 2 A per channel, 8 A total per module |
| Protection | Short-circuit and over-temperature protection |
| Communication Bus | Direct backplane connection to the PLC rack |
| Response Time | 1 ms typical from command to output |
| Isolation | 500 V AC between channels and the logic side |
| Operating Temp. | 0 °C to 60 °C |
| Mounting | Rack-mounted (compatible with standard chassis) |
| Certifications | CE, UL, and CSA approved |
Robust Output Performance
The DAP 210 features eight fully isolated discrete outputs for driving solenoids and relays. Each channel sources up to 2 A of current without derating across the operating temperature. This capability allows direct control of small to medium-sized actuators without external interposing relays. Consequently, you can simplify your panel wiring and reduce overall component costs.
Intelligent Protection and Diagnostics
This module incorporates short-circuit and over-temperature protection on every output channel. These features automatically shut down a faulty channel to prevent damage to the module or connected loads. In addition, the DAP 210 provides diagnostic feedback through the backplane bus. This feedback notifies the PLC processor of overcurrent or thermal fault conditions instantly. Therefore, you can implement conditional logic for safer machine operation.
Installation and Integration
This module mounts directly into a standard Schneider rack using the backplane connector. Its compact dimensions of 99 x 114 x 70 mm occupy minimal space in your control cabinet. At just 0.38 kg, the module places negligible strain on the backplane and surrounding components. You can install or replace it quickly without disturbing adjacent modules, which minimizes downtime during maintenance.
System Compatibility and Reliability
The DAP 210 integrates seamlessly with all Schneider Modicon PLC families. Its fast 1 ms response time ensures that output activation occurs almost immediately after the processor command. The 500 V AC isolation protects the sensitive logic circuitry from noisy field devices, enhancing overall system stability. This rugged design guarantees long-term reliability in demanding industrial environments.
Details
| Weight | 0.55 kg |
|---|---|
| Dimensions | 140 × 49 × 145 mm |
