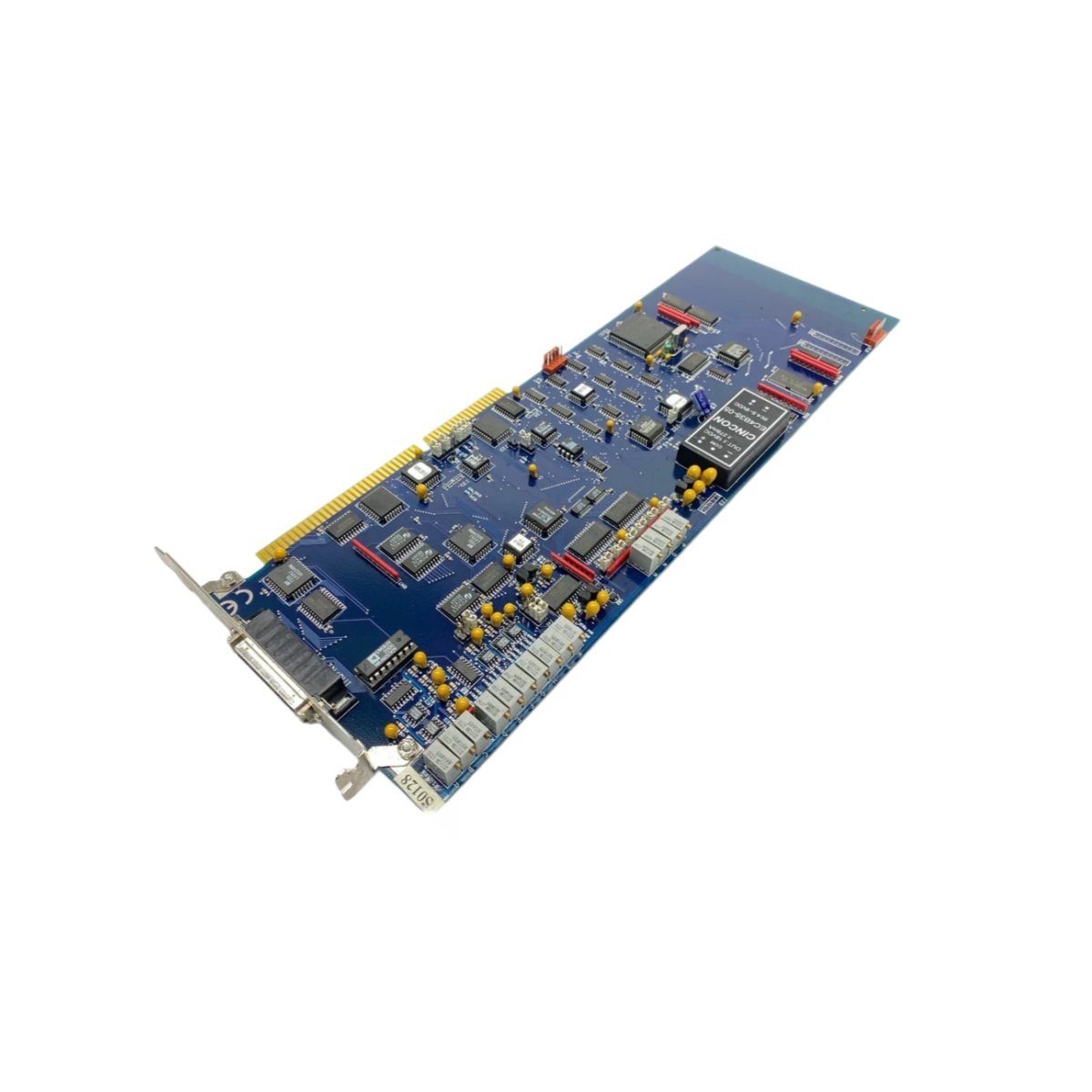

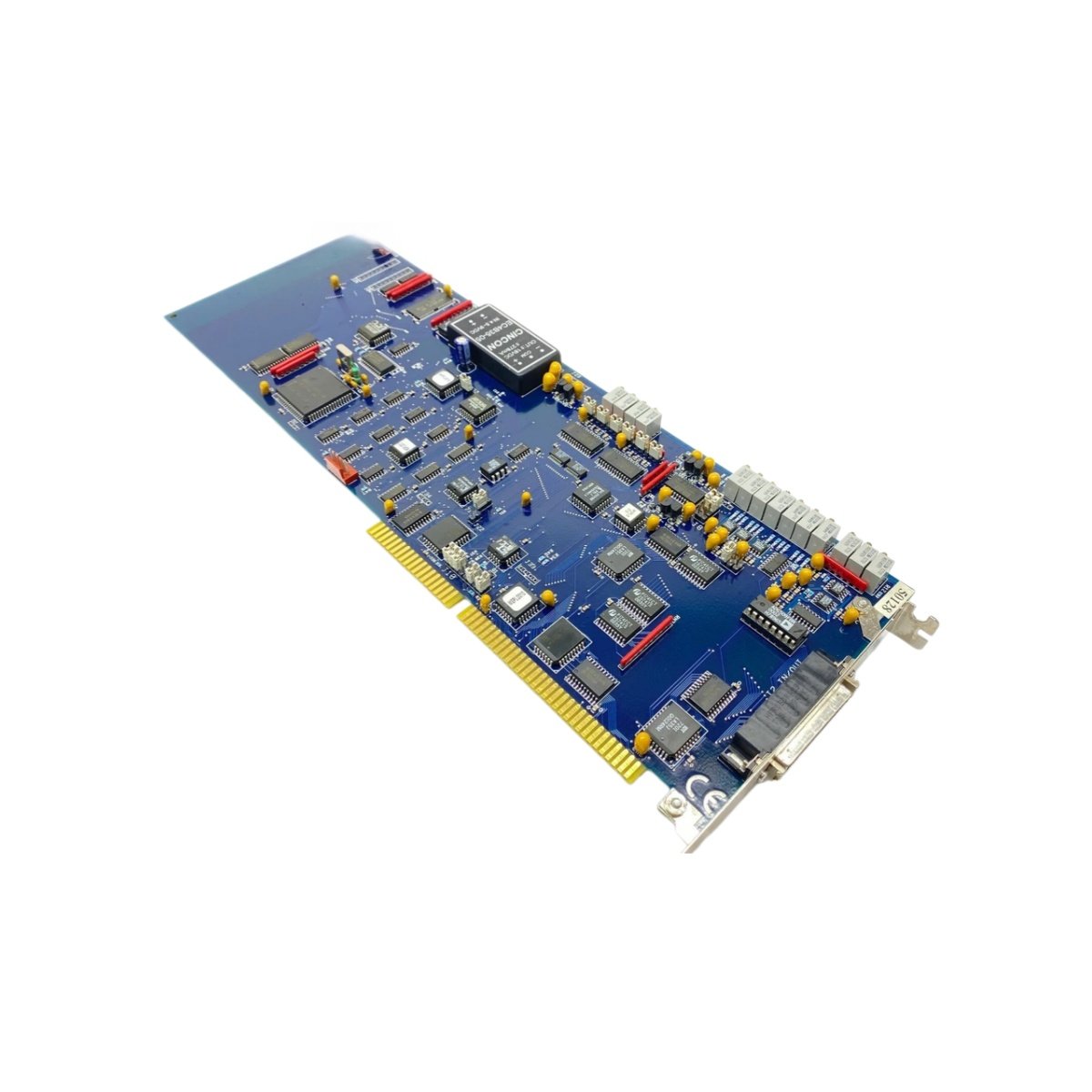

The Schneider DAP 103 digital I/O relay module switches discrete field loads within Schneider automation platforms. Engineers install this unit to drive relays, solenoids, and indicator lamps across process areas. Consequently, it serves manufacturing lines, process plants, and utility control rooms.

Technical Specifications and Hardware Details

This module occupies a single slot inside a compatible Schneider control rack. It measures roughly 160 mm long, 100 mm wide, and 30 mm thick, while it weighs about 0.4 kg. Moreover, the front panel carries status LEDs and field wiring terminals.

Functional Capabilities and System Integration

The module reads digital input signals while it drives relay outputs for field devices. Meanwhile, the backplane connector links it to the main controller and system bus. Relay contacts isolate loads, therefore switching remains reliable across the network.

Additionally, the design supports mixed input and output functions within one unit. As a result, operators reduce module count and save cabinet space. Clear terminal labeling helps technicians trace wiring during troubleshooting. Natural convection cools the module inside standard control cabinets.

Installation and Maintenance Guidelines

Technicians should power down the rack before they insert the DAP 103 module. Afterward, verifying terminal connections confirms reliable signal transfer to field devices. Periodic inspection of relay contacts prevents sticking and intermittent faults. Finally, consult Schneider documentation for contact ratings and compatible controller configurations.
