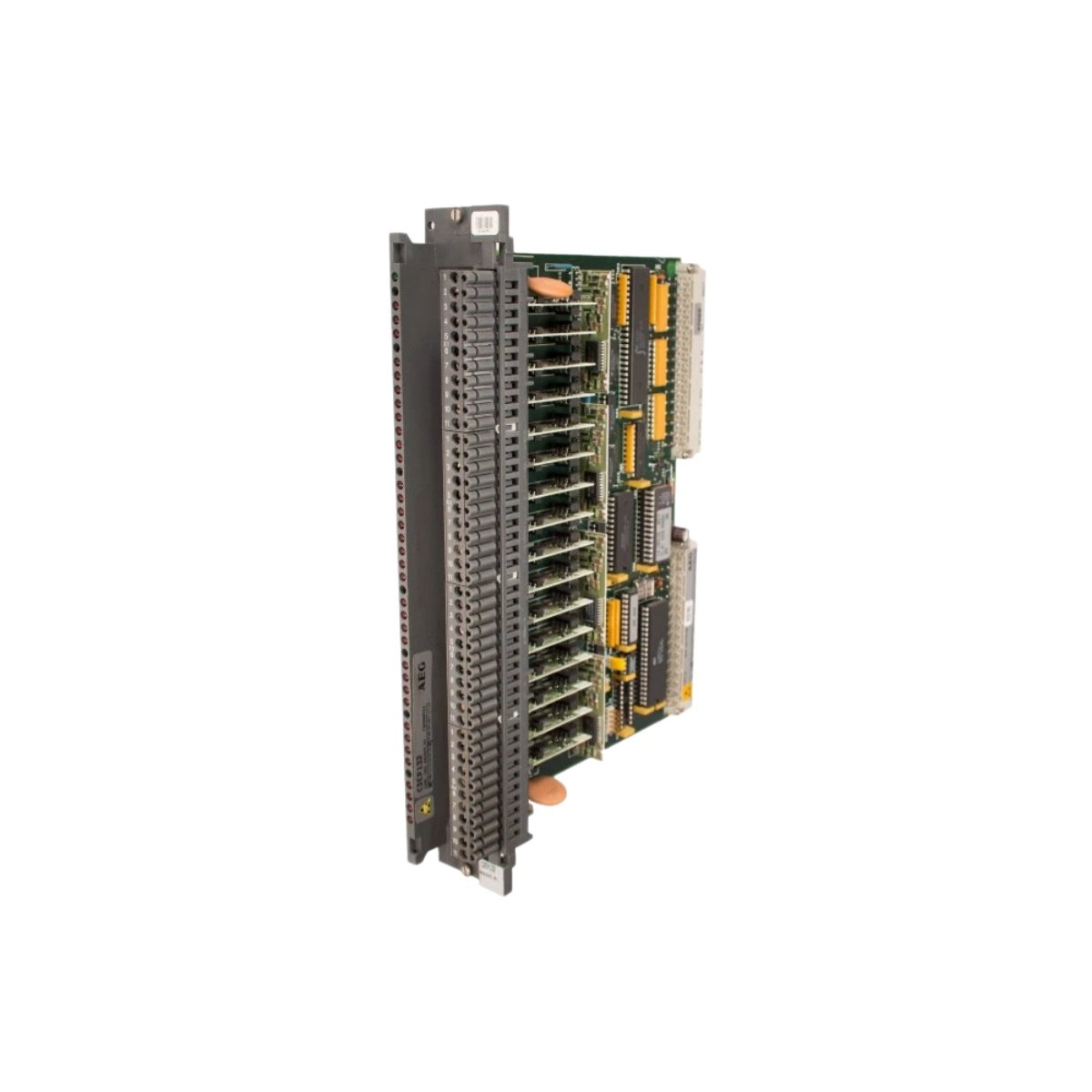

The Schneider CDEP 132 CPU module executes control logic for industrial automation systems. Engineers select this unit for dependable program processing across manufacturing environments. Moreover, its rugged housing supports straightforward integration into existing Modicon racks.
Interface and Connectivity
The processor links to the backplane connector for high-speed data exchange. Additionally, it provides embedded communication ports for programming and network tasks. These ports support Ethernet and serial protocols, therefore covering common integration requirements. Field wiring uses standard connectors that reduce installation time considerably.
Physical Dimensions and Weight
The unit measures 40 mm in width, 125 mm in height, and 110 mm in depth. Furthermore, it weighs approximately 200 grams, which reduces panel load. Consequently, technicians mount it easily on standard DIN rails.
Component Count and Energy Storage
The CDEP 132 integrates a high-speed processor core for deterministic scan cycles. It also contains one backup capacitor rated at 220 µF for data retention. Therefore, this energy storage element preserves program memory during brief power interruptions. The board carries roughly 240 discrete components for dependable operation.
Technical Specifications Table
| Parameter | Specification |
|---|---|
| Model | CDEP 132 |
| Category | CPU Module |
| Communication Ports | Ethernet / Serial |
| Memory Backup | Capacitor-Based |
| Dimensions (W×H×D) | 40 × 125 × 110 mm |
| Weight | ~200 g |
| Connector Type | Backplane / Standard |
| Energy Storage | 220 µF Backup Capacitor |
| Operating Temperature | 0°C to 60°C |
Why This Module Suits Industrial Applications
System integrators value the CDEP 132 for its stable scan performance and simple setup. Meanwhile, the backup capacitor protects program memory from data loss. As a result, system reliability improves while maintenance costs decrease.
Details
| Weight | 0.15 kg |
|---|---|
| Dimensions | 110 × 72 × 38 mm |
