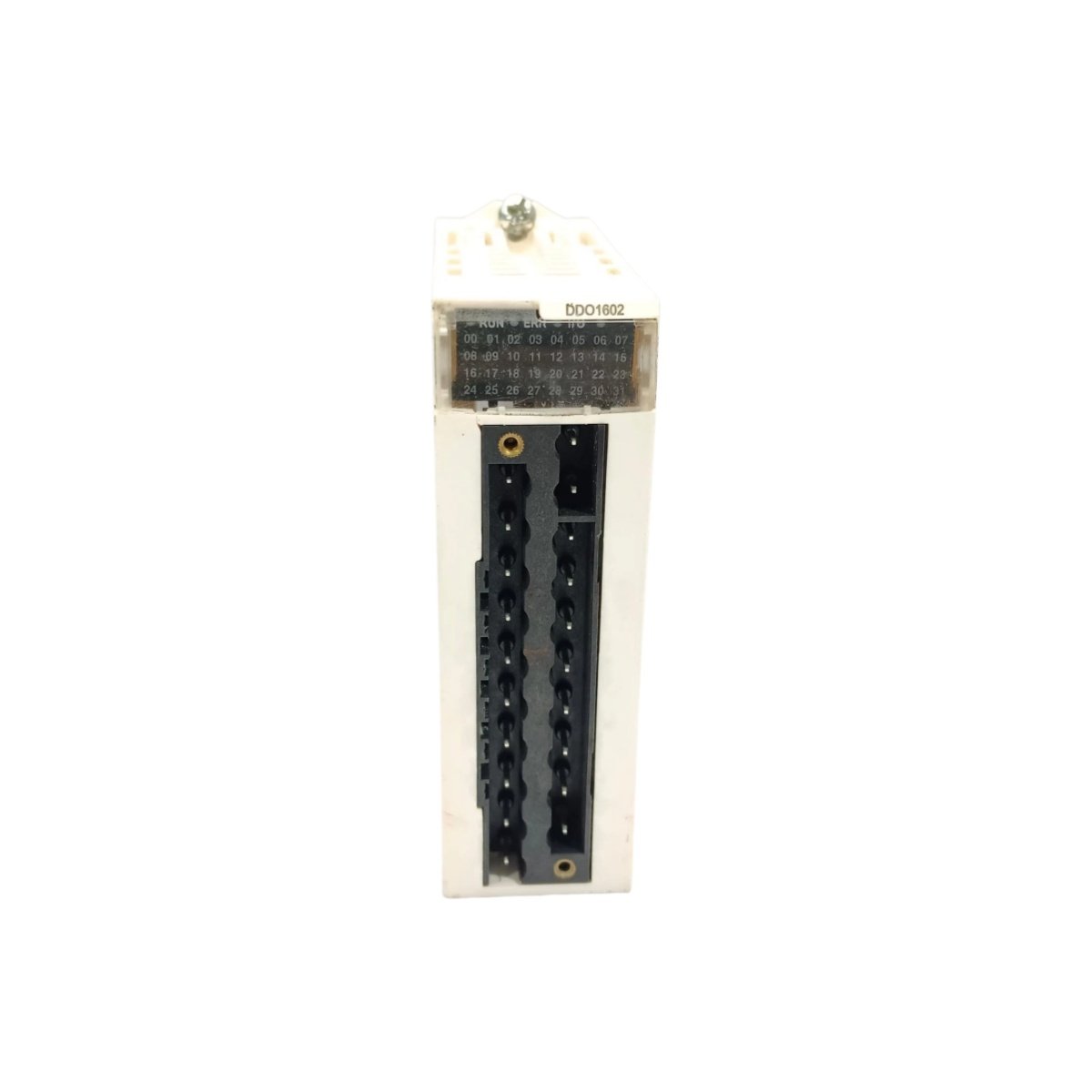

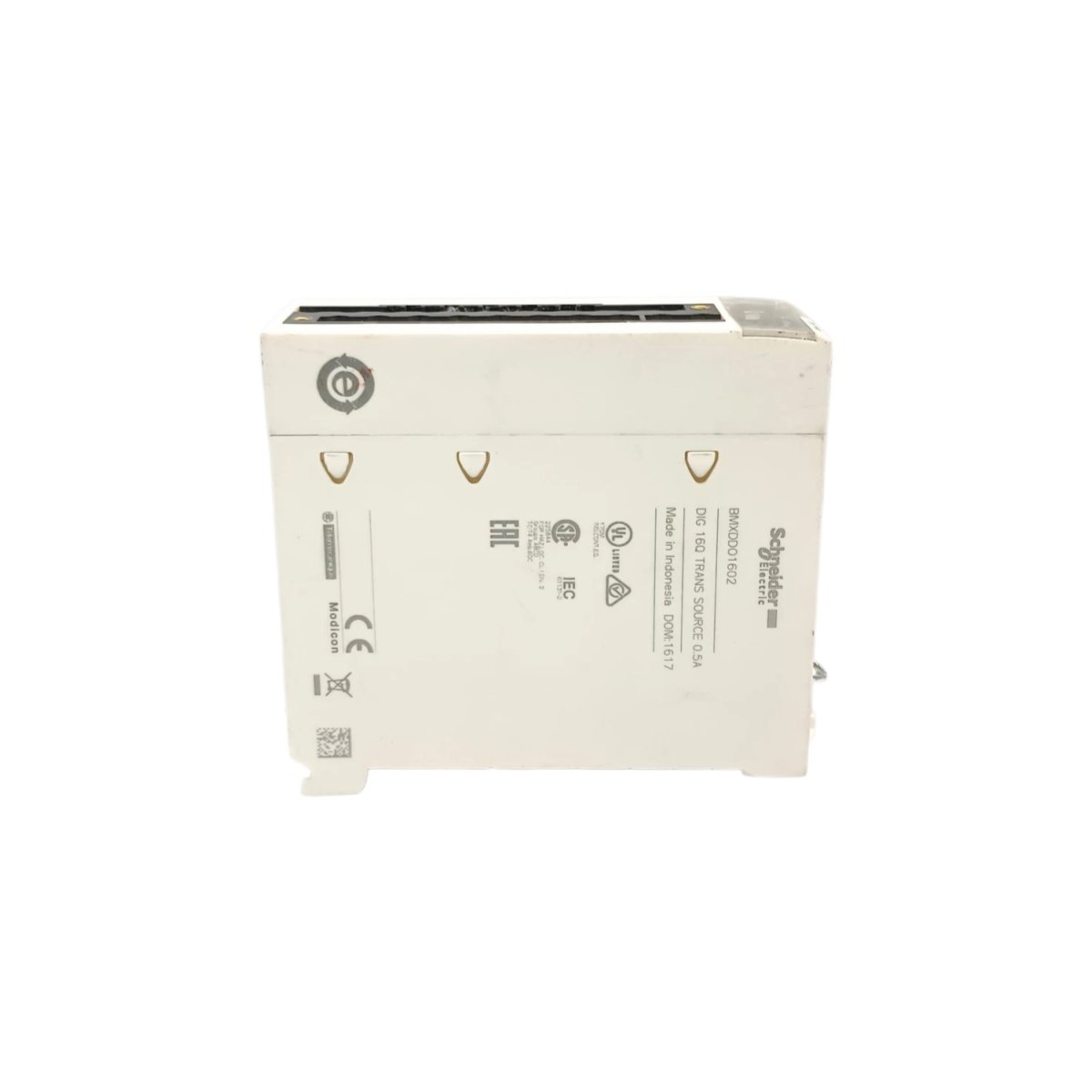

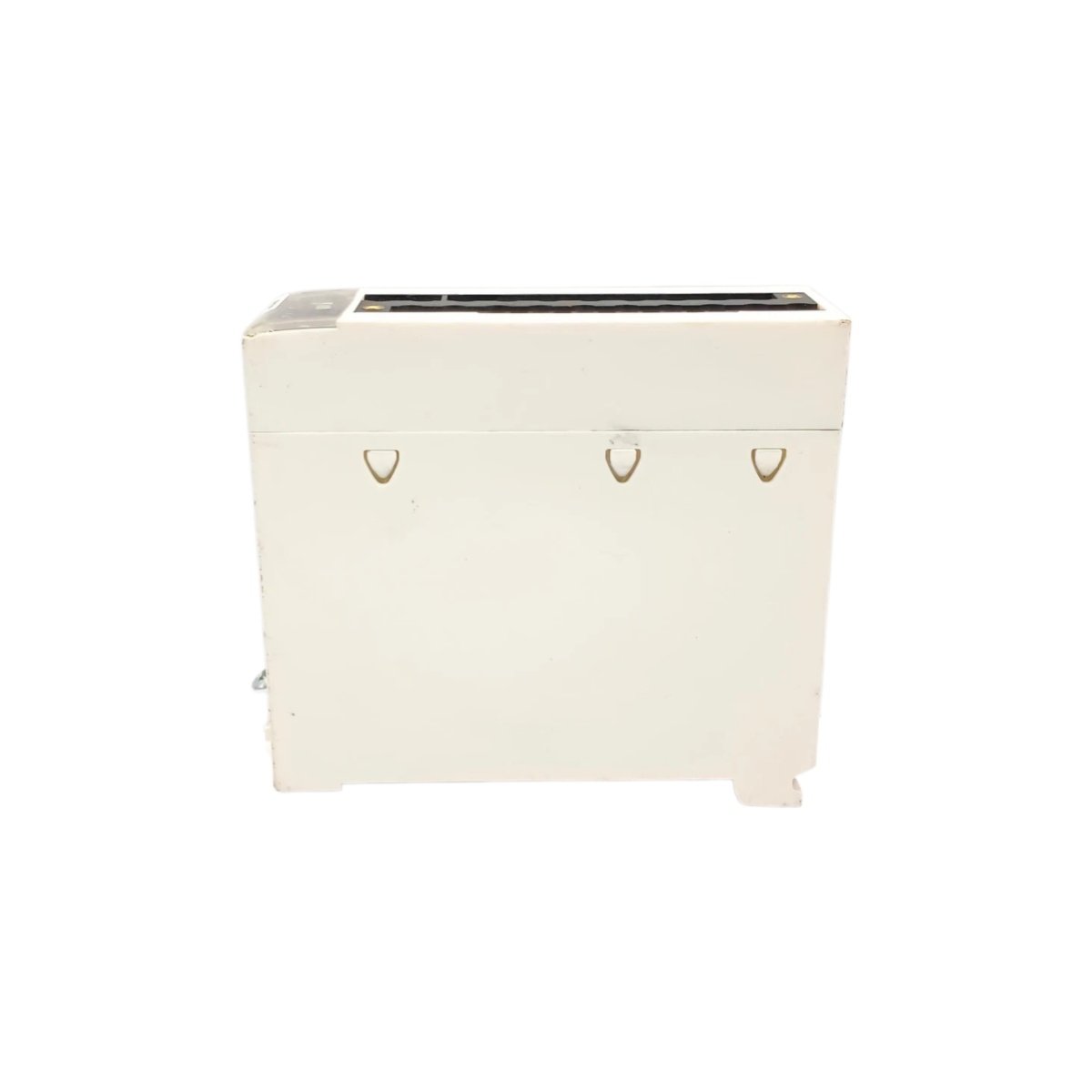

The Schneider BMXDDO1602 is a high-performance discrete output module for the Modicon M340 automation platform. This unit provides 16 transistor outputs for driving DC loads such as solenoids, relays, and indicator lamps. It delivers fast switching performance with comprehensive protection features for demanding industrial applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Discrete Output Module for Modicon M340 |
| Number of Outputs | 16 channels |
| Output Type | Transistor, source configuration |
| Output Voltage | 24 V DC (nominal) |
| Output Current | 0.5 A per channel |
| Total Current | 8 A per module |
| Response Time | < 100 µs |
| Protection | Overcurrent, short-circuit, overtemperature |
| Isolation | 1500 V AC (field-to-logic) |
| Power Consumption | 70 mA (from 5 V DC backplane) |
| Dimensions (W x H x D) | 20 mm x 100 mm x 95 mm |
| Weight | Approx. 0.15 kg |
| Operating Temperature | 0°C to 60°C |
| Protection Rating | IP20 |
Output Configuration and Performance
The Schneider BMXDDO1602 delivers 16 independent transistor outputs for precise on/off control. Each channel provides 0.5 A at 24 V DC, making it suitable for a wide range of loads. Moreover, the module’s fast response time of under 100 µs ensures accurate timing for high-speed automation processes. In addition, it includes built-in protection against overcurrent, short-circuit, and overtemperature conditions.
Diagnostic and Monitoring Features
This output module includes comprehensive diagnostic features for enhanced system reliability. For instance, it detects open-circuit and short-circuit conditions on each output channel. Furthermore, LED indicators on the front panel provide clear visual status of each individual output. The module also reports channel-level faults back to the CPU for proactive maintenance. Consequently, its high isolation rating protects the controller from field wiring faults.
System Integration and Applications
The Schneider BMXDDO1602 integrates seamlessly into the Modicon M340 ecosystem via the X-bus backplane. It supports configuration through Unity Pro and EcoStruxure Control Expert software. Users can replace the module during operation for convenient maintenance. Typical applications include conveyor control, packaging machinery, valve actuation, and lighting control in manufacturing and process plants.
Details
| Weight | 0.15 kg |
|---|---|
| Dimensions | 20 × 100 × 95 mm |
