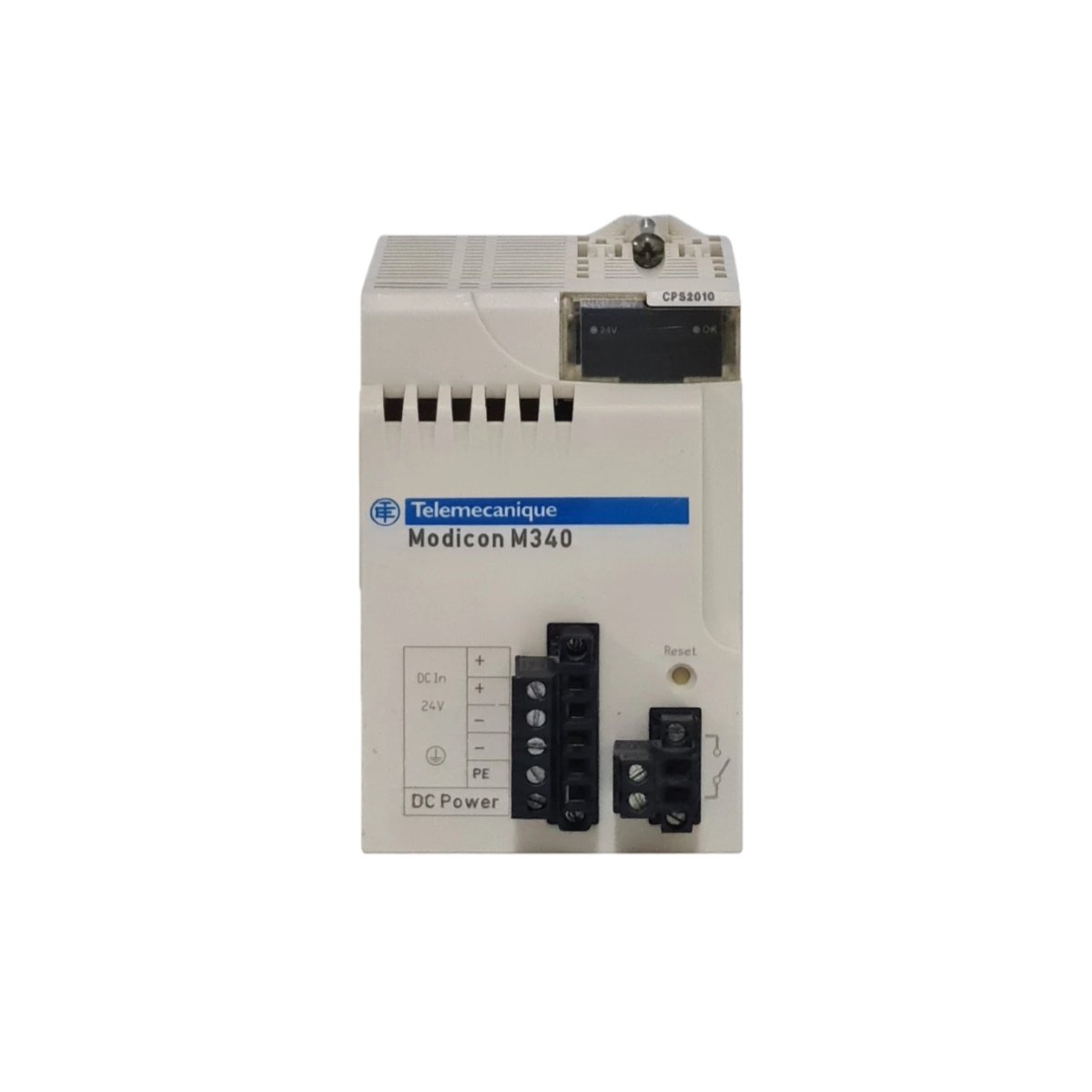

The Schneider BMXCPS2010 supplies stable DC power to Modicon X80 racks. This power module weighs only 0.35 kilograms for lightweight installation. Its dimensions measure 105 mm in height and 85 mm in depth. The width stands at 36 mm for standard X80 rack mounting.
Technical Specifications of BMXCPS2010
The Schneider BMXCPS2010 accepts an input range of 100 to 240 V AC. It delivers a nominal output of 24 V DC at 10 watts. The module achieves up to 88% efficiency under typical loads. It draws a maximum inrush current of 30 amps briefly. Consequently, this power supply suits small to medium PLC configurations perfectly.
Below is a complete breakdown of key parameters:
| Parameter | Value |
|---|---|
| Product Model | BMXCPS2010 |
| Manufacturer | Schneider Electric |
| Product Type | Power Supply Module |
| Input Voltage | 100–240 V AC (47–63 Hz) |
| Output Voltage | 24 V DC |
| Output Power | 10 W |
| Output Current | 0.42 A |
| Efficiency | 88% typical |
| Inrush Current | 30 A max |
| Weight | 0.35 kg |
| Dimensions (H x W x D) | 105 x 36 x 85 mm |
| Connector Type | Screw terminal block |
| Operating Temperature | 0°C to +60°C |
Internal Components and Energy Storage
The Schneider BMXCPS2010 contains a single internal PCB assembly. It uses electrolytic capacitors for input filtering and energy smoothing. These capacitors store enough charge for a 10 ms hold-up time. Therefore, the module bridges short power interruptions without output dropout. The power supply has no internal battery for maintenance-free operation.
Installation and System Integration
You can mount this power module into any X80 rack slot. It requires only 36 mm of horizontal panel space. The Schneider BMXCPS2010 works seamlessly with BMX series I/O modules. For similar industrial power solutions, see the RMS-TSG-TZ-C static trip unit. That unit provides reliable protection for power distribution systems. However, the BMXCPS2010 focuses specifically on PLC rack power conversion.
Protection and Reliability Features
This power module includes overvoltage protection at 28 V DC. It also features short-circuit protection with automatic recovery. The Schneider BMXCPS2010 tolerates input surges up to 300 V AC. Moreover, its compact design provides excellent heat dissipation through natural convection. These features make it ideal for factory automation and control cabinets.
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 110 × 55 × 90 mm |
