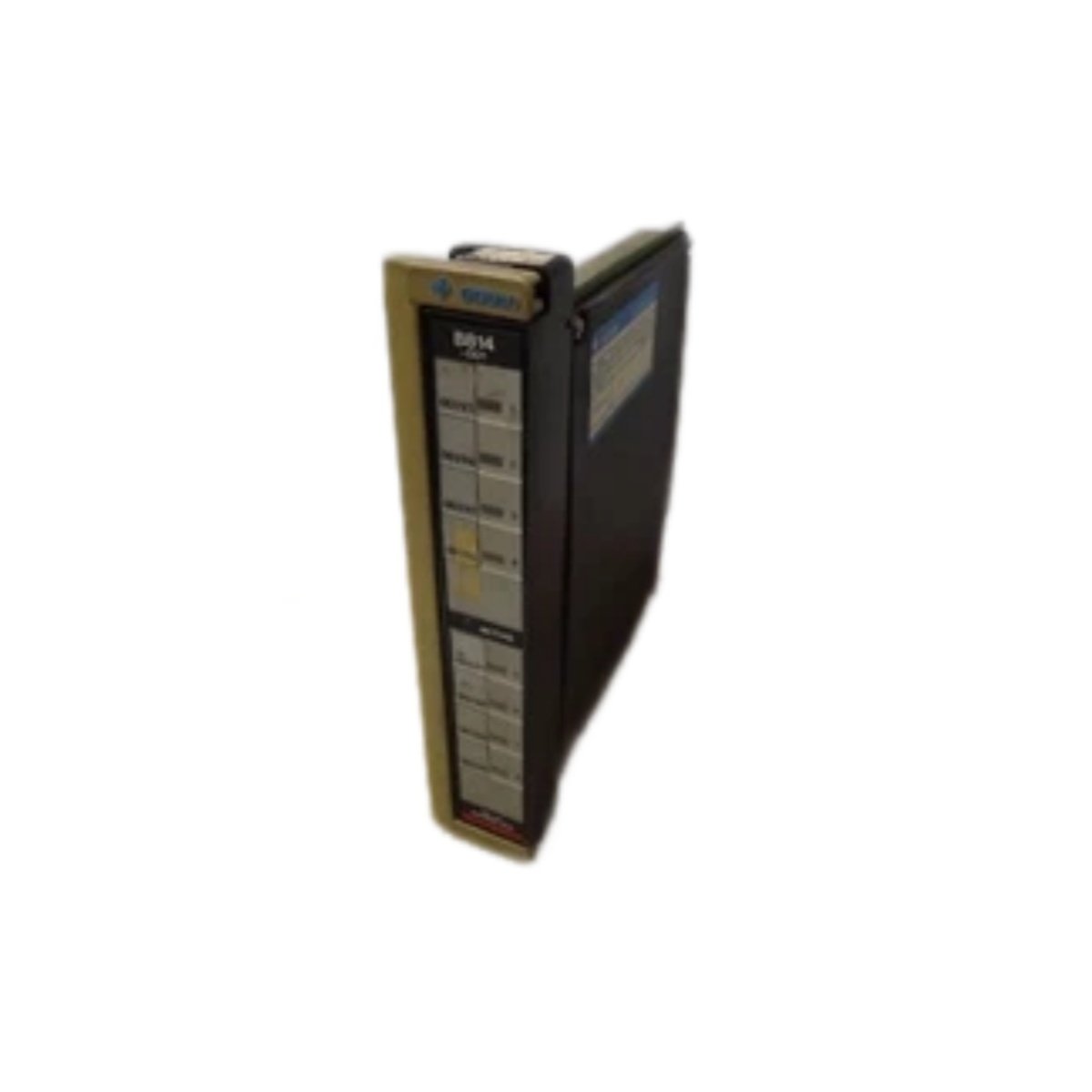

The B814001 delivers analog output signals inside Schneider’s industrial control hardware range. This module measures roughly 9.4 inches long, 1.2 inches wide, and 5.5 inches high. Moreover, it weighs about 0.8 pounds, which suits standard rack installation. Engineers specify the B814001 when they need accurate current and voltage control for process actuators.
Technical Specifications and Interface Details
The module provides multiple output channels, and each channel supports current and voltage ranges. Specifically, operators can configure 4–20 mA, 0–20 mA, 0–10 V, and ±10 V settings. Additionally, 12-bit resolution ensures smooth signal delivery across the full range. A front-mounted terminal block simplifies field wiring and module replacement.
| Parameter | Specification |
|---|---|
| Module Type | Analog Output Module |
| Channels | Multiple independent outputs |
| Output Ranges | 4–20 mA, 0–20 mA, 0–10 V, ±10 V |
| Resolution | 12-bit |
| Dimensions | 9.4 x 1.2 x 5.5 in |
| Weight | ~0.8 lbs |
| Interface | Backplane connector |
| Terminal Block | Front-mounted |
Energy Storage and Output Stability
Internal capacitors on the B814001 provide local energy storage for stable output voltages. Consequently, the module resists ripple and maintains accuracy during load changes. This buffering proves valuable in closed-loop control environments. The design also limits drift across extended operating cycles.
Installation and Compatibility Notes
Because the B814001 fits standard Schneider racks, technicians complete installation quickly. They should verify output wiring before they power the control system. Furthermore, the module integrates smoothly with existing Schneider control hardware. Always store spare units in anti-static packaging to protect sensitive circuitry.
