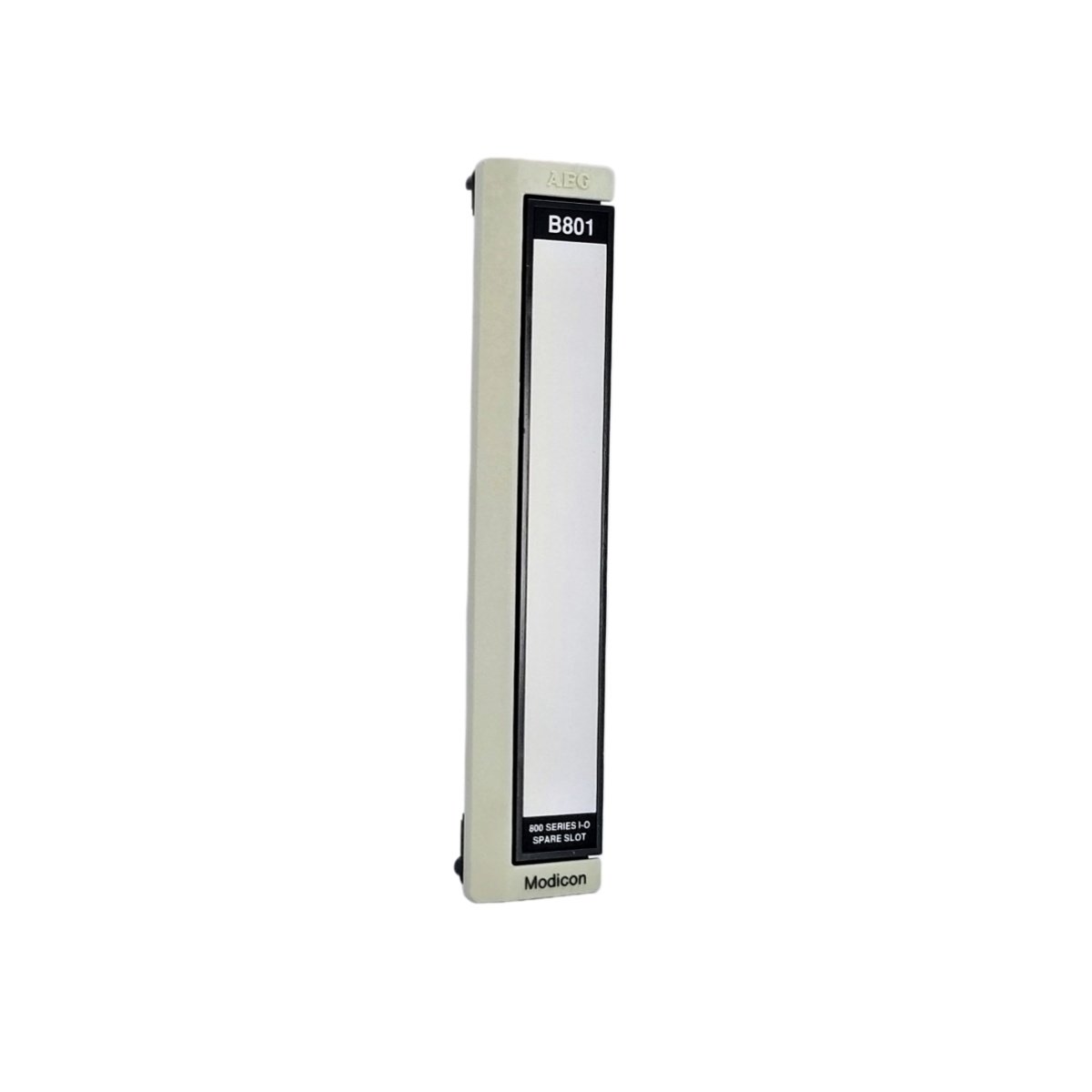

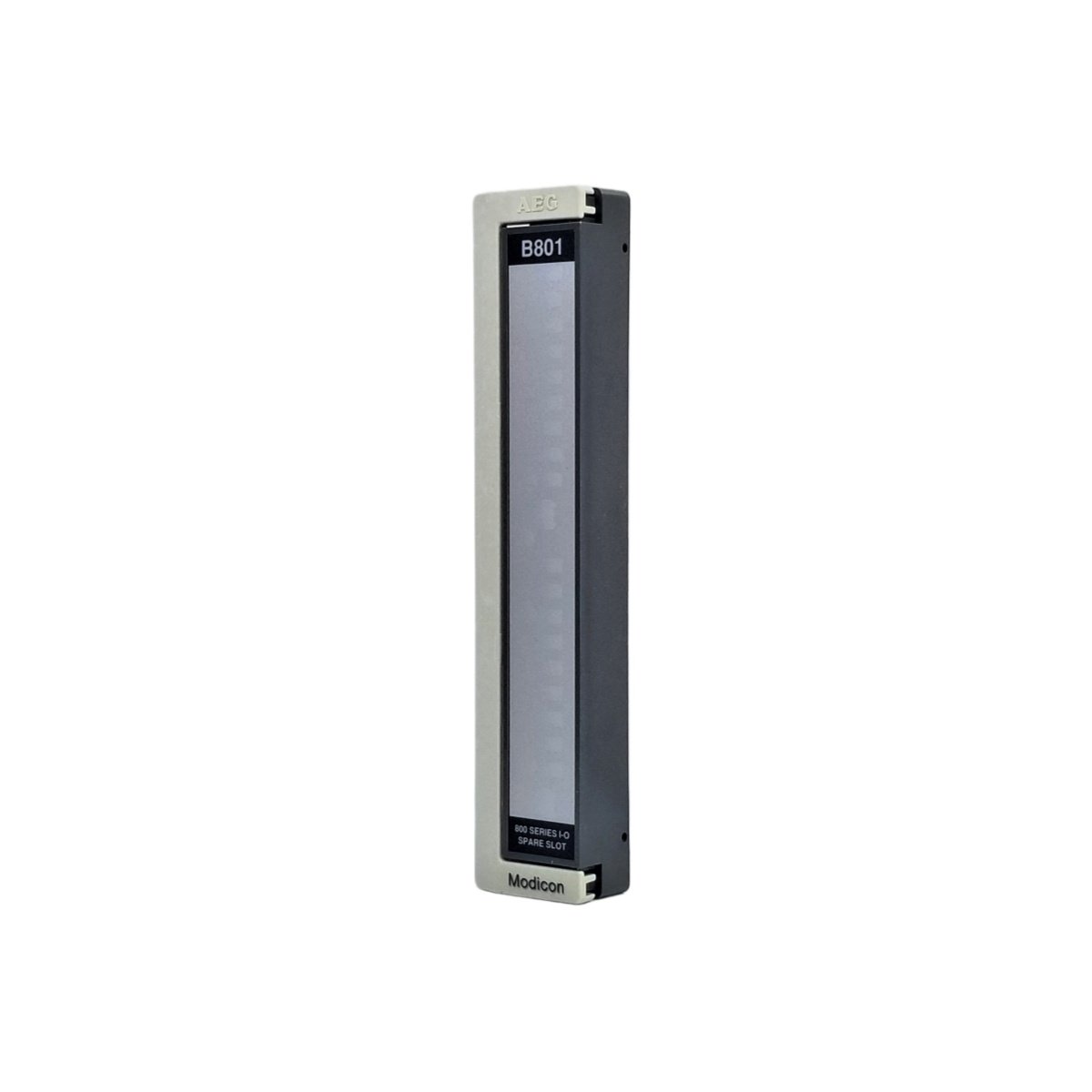

The B801 filler module occupies empty slots in Schneider automation racks and chassis. This blank panel maintains airflow balance and protects exposed backplane connectors. Engineers use it to keep cabinets clean and properly sealed.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Filler Module |
| Compatibility | Schneider Rack and Chassis Systems |
| Function | Slot Cover, Airflow Regulation |
| Material | Flame-Retardant ABS Plastic |
| Interface | None (Passive Cover) |
| Dimensions | 160 mm x 40 mm x 110 mm |
| Weight | Approximately 0.18 kg |
| Component Count | 0 Active Components |
| Energy Storage | None Required |
| Voltage Rating | Not Applicable |
| Operating Temperature | 0°C to 60°C |
| Relative Humidity | 5% to 95%, Non-Condensing |
Mechanical Design and Function
The unit fills unused rack slots with a durable, flame-retardant plastic body. Therefore, it prevents dust from reaching sensitive backplane contacts. Furthermore, proper slot coverage maintains consistent cooling airflow across active modules. Consequently, nearby electronics run cooler and last longer.
Compatibility and Fit
A simple latch mechanism secures the B801 into standard Schneider rack positions. As a result, installers insert or remove the panel without tools. Additionally, the slim profile matches adjacent module dimensions for a uniform look.
Environmental Ratings
The material resists heat up to 60°C without deformation or warping. Moreover, it meets flame-retardant standards for industrial cabinet components. Consequently, it suits demanding factory floor environments.
Installation Notes
Operators snap the panel into any empty slot for immediate protection. The lightweight housing adds almost no load to rack structures. However, users should confirm slot width before ordering multiple units.
Details
| Weight | 0.15 kg |
|---|---|
| Dimensions | 110 × 72 × 38 mm |
