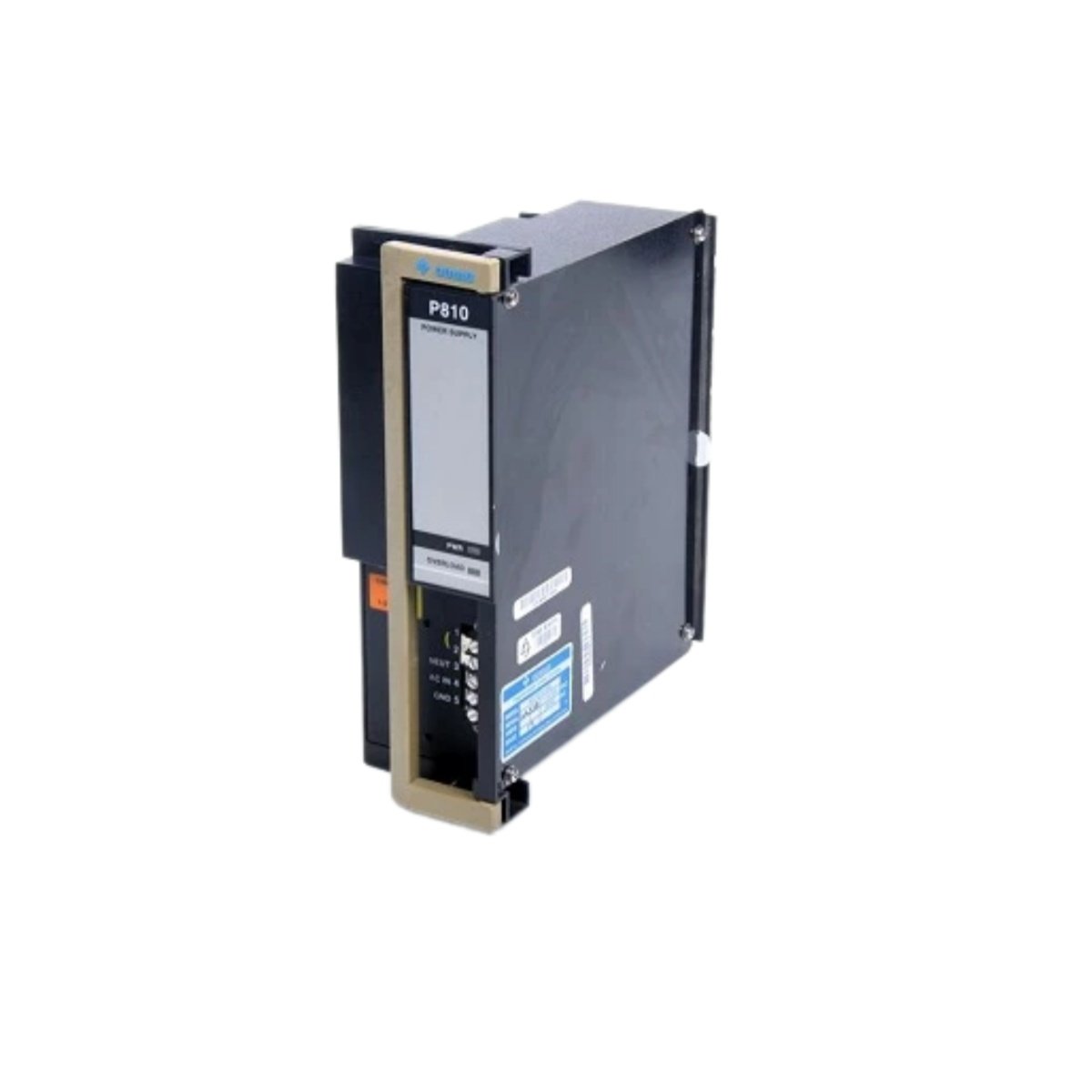

This power supply module provides reliable DC power to Schneider Electric control systems. It converts 120/230 V AC input into stable 24 V DC output. The unit supports both PLC racks and field devices simultaneously. Its high-efficiency design minimizes heat dissipation inside control cabinets.
Input and Output Specifications
The module accepts a wide range of AC input voltages for global applications. It delivers regulated DC power to connected system components. The main output provides 24 V DC at 10 A for logic circuits. A dedicated 5 V DC output supplies sensitive electronic modules.
| Parameter | Specification |
|---|---|
| Model | ASP810001 |
| Input Voltage | 85-264 V AC, 47-63 Hz |
| Input Current | 2.5 A at 120 V AC, 1.3 A at 240 V AC |
| Main Output | 24 V DC, 10 A (240 W) |
| Auxiliary Output | 5 V DC, 2 A (10 W) |
| Total Output Power | 250 W maximum |
| Output Ripple | ≤100 mV peak-to-peak |
| Line Regulation | ±0.2% for 24 V output |
| Load Regulation | ±1.0% for 24 V output |
| Efficiency | 87% typical at full load |
| Hold-Up Time | 30 ms minimum |
| Inrush Current | 40 A peak |
| Isolation Voltage | 3000 V AC input to output |
| Protection Features | Over-voltage, over-current, over-temperature |
Physical Dimensions and Mounting Options
This power supply measures 150 mm in height, 90 mm in width, and 120 mm in depth. Its robust enclosure weighs approximately 1.8 kg. You can mount the unit on a standard 35 mm DIN rail. The module also supports panel mounting with optional brackets.
Connector Interface and Field Wiring
The ASP810001 features a 3-position terminal block for AC input connections. A separate 4-position block handles all DC output terminations. Each terminal accepts wire sizes from 0.5 mm² to 4.0 mm². The unit includes a ground terminal for functional earth connection.
Protection Features and Safety Systems
This power supply incorporates over-voltage protection on all output channels. It also includes over-current limiting with automatic recovery. A thermal shutdown circuit protects against excessive internal temperatures. The module meets UL 508 and IEC 60950 safety standards.
Status Indication and Diagnostic Outputs
A green LED indicates normal operation and output within specification. A red LED illuminates when the unit enters protection mode. The module provides a DC OK relay contact for external monitoring. This contact changes state when the output drops below 90%.
Application Scenarios and Compatibility
This power supply suits Modicon and other Schneider control systems. It works with both PLC and distributed I/O configurations. The unit supports hot-swapping for maintenance without system shutdown. You can use it as a primary or backup power source.
Details
| Weight | 0.25 kg |
|---|---|
| Dimensions | 130 × 100 × 20 mm |
