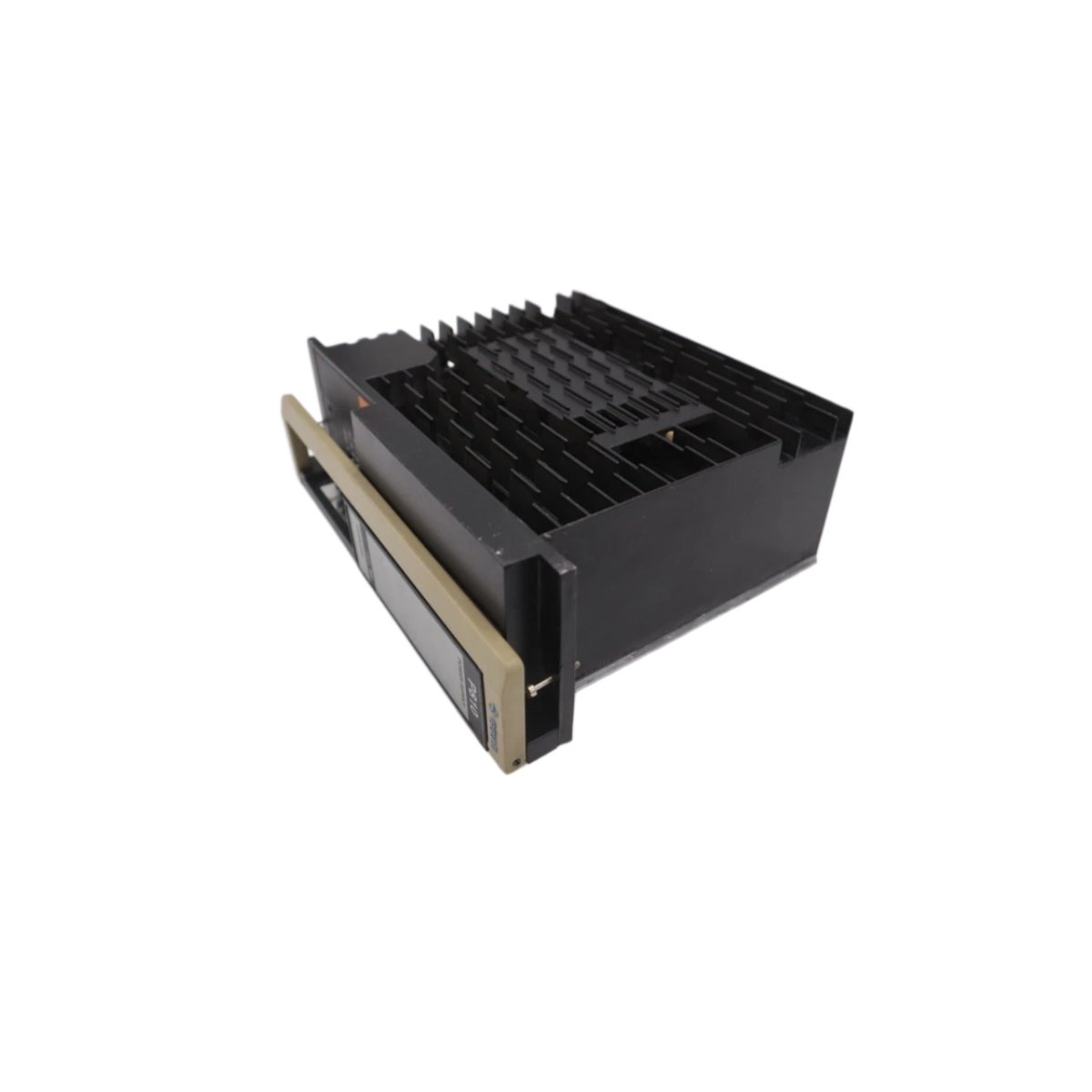

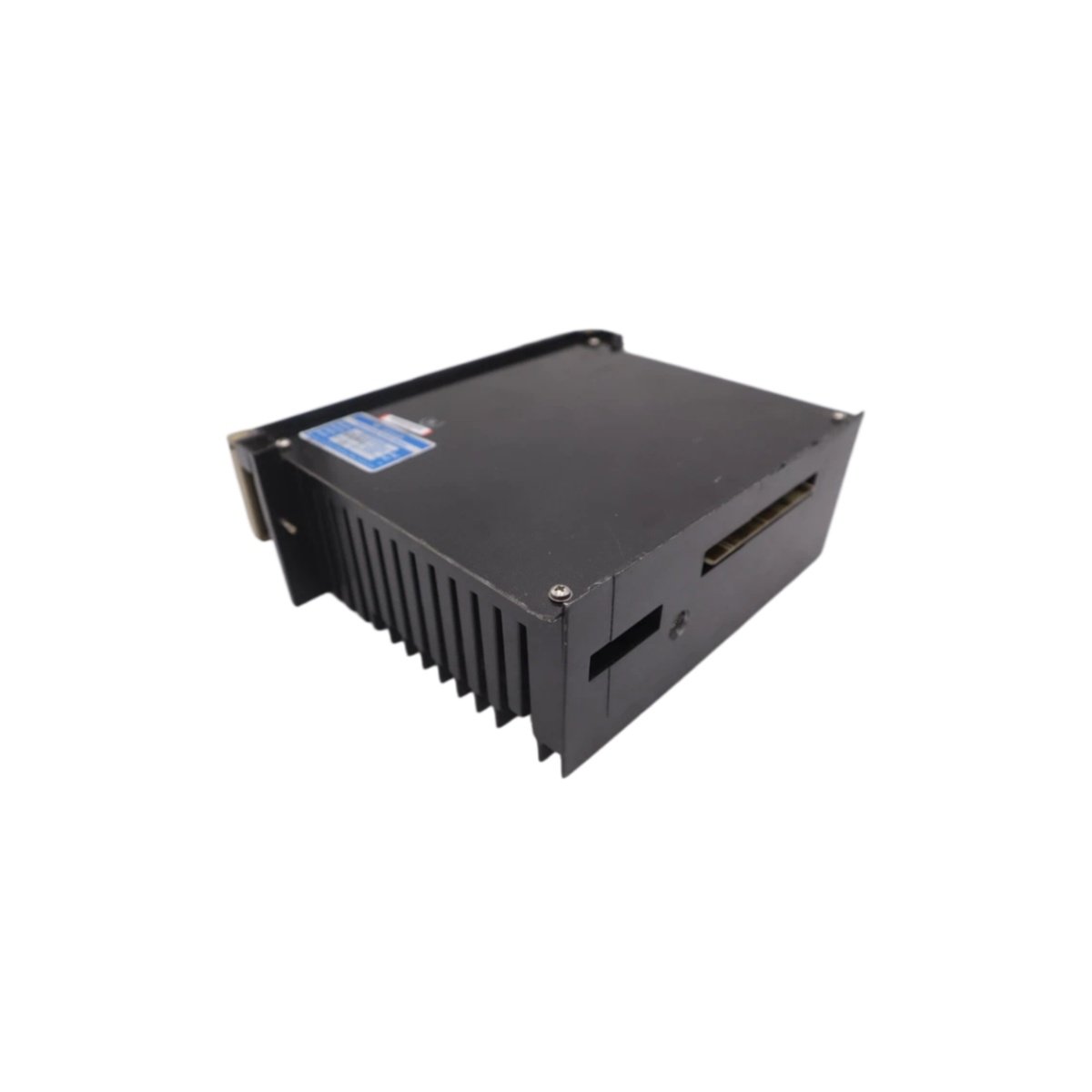

The Schneider ASP810000 power supply delivers stable DC voltage for industrial automation systems. Engineers select this unit for dependable power delivery across manufacturing environments. Moreover, its compact housing supports straightforward integration into existing Modicon racks.
Interface and Connectivity

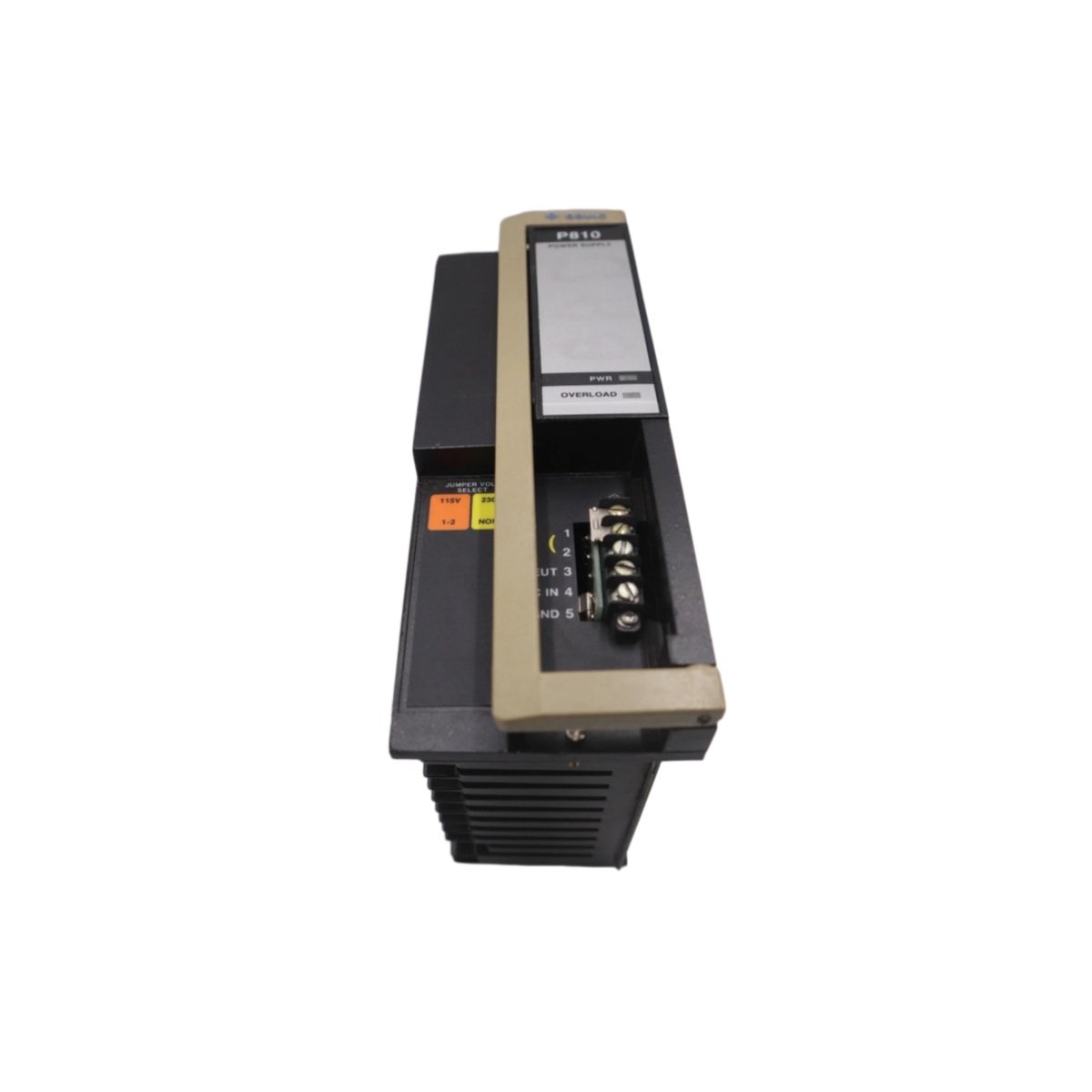

The unit connects to the backplane connector for high-speed power and data distribution. Additionally, it provides screw terminals for AC input and DC output wiring. These terminals accept standard wire gauges, therefore covering common industrial installation requirements. Status indicators show output health, which simplifies troubleshooting considerably.
Physical Dimensions and Weight
The unit measures 40 mm in width, 125 mm in height, and 110 mm in depth. Furthermore, it weighs approximately 200 grams, which reduces panel load. Consequently, technicians mount it easily on standard DIN rails.
Component Count and Energy Storage
The ASP810000 integrates rectifier circuits for stable DC conversion. It also contains one filtering capacitor rated at 220 µF for output smoothing. Therefore, this energy storage element suppresses ripple during load changes. The board carries roughly 160 discrete components for dependable operation.
Technical Specifications Table
| Parameter | Specification |
|---|---|
| Model | ASP810000 |
| Category | Power Supply |
| Input Type | AC Mains |
| Output Type | Regulated DC |
| Dimensions (W×H×D) | 40 × 125 × 110 mm |
| Weight | ~200 g |
| Connector Type | Backplane / Screw Terminal |
| Energy Storage | 220 µF Capacitor |
| Operating Temperature | 0°C to 60°C |
Why This Unit Suits Industrial Applications
System integrators value the ASP810000 for its stable output and simple wiring. Meanwhile, the filtering capacitor protects connected modules from voltage ripple. As a result, system reliability improves while maintenance costs decrease.
Details
| Weight | 0.15 kg |
|---|---|
| Dimensions | 110 × 72 × 38 mm |
