Reliable Power Conversion for Control Systems

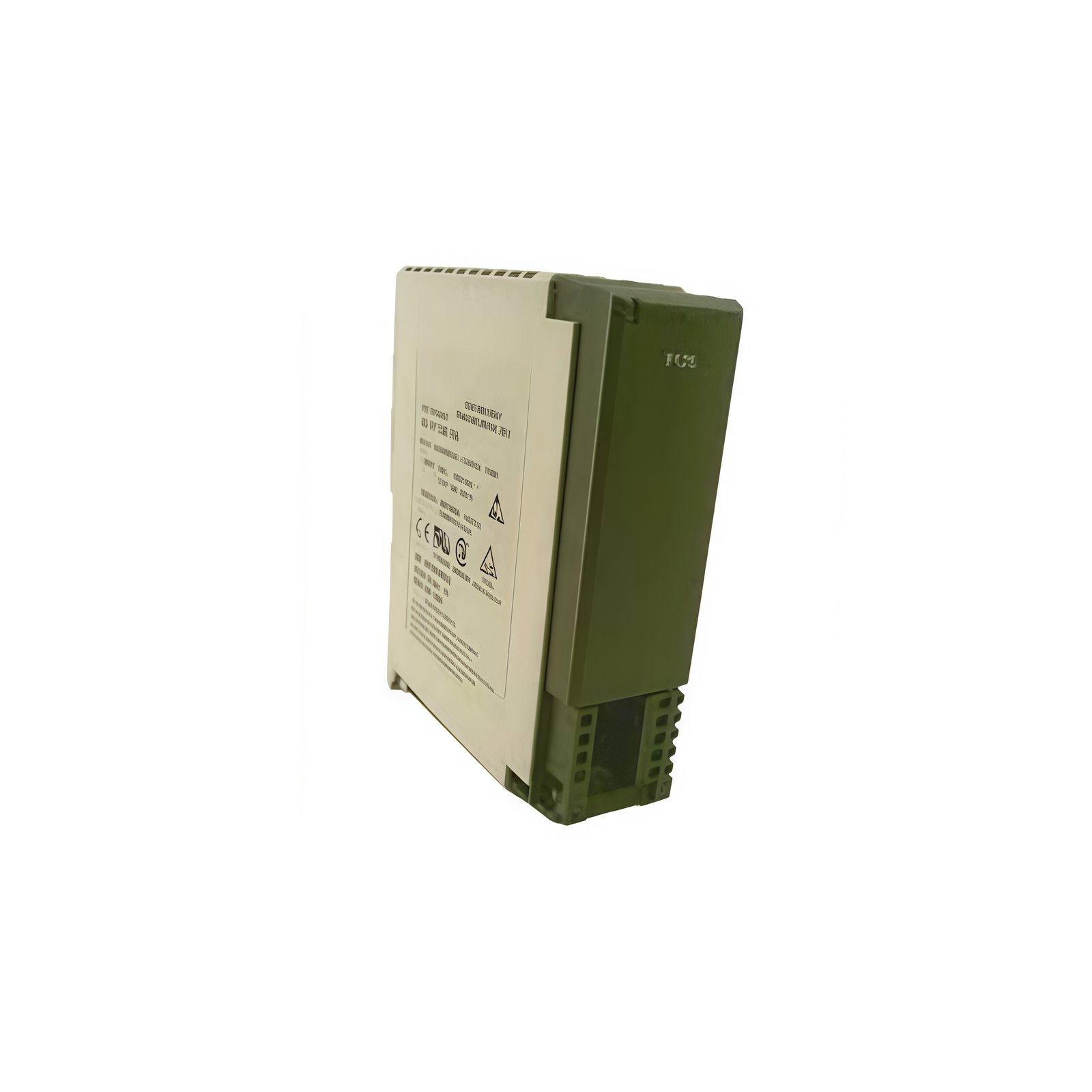

The Schneider ASP120250C converts AC line voltage into regulated 24V DC power for industrial automation equipment. This power supply delivers a continuous output current of 5 amperes at 24 volts DC . It accepts a wide input range from 85 to 264 volts AC, accommodating global mains voltages . Consequently, this unit suits machinery control panels, PLC racks, and sensor power distribution.

Output Performance and Protection Features

The ASP120250C provides 120 watts of total output power with minimal ripple and noise. Built-in overload protection automatically limits output current during fault conditions . Short-circuit protection shuts down the output to prevent damage to connected devices . Furthermore, overvoltage protection clamps the output at a safe level to safeguard sensitive electronics.

Input and Environmental Specifications

This power supply operates at a typical efficiency of 85% across its full load range. It consumes approximately 1.5 amperes at 115V AC under full load conditions . The Schneider ASP120250C functions within a 0 to 50 °C ambient temperature environment . Additionally, it stores safely between -25 °C and 85 °C for extended periods .

Physical Construction and Mounting

The unit weighs 0.9 kilograms and measures a compact 130 x 75 x 55 millimeters . It mounts directly onto DIN rails using the integrated clip mechanism . LED status indicators show input presence and output health for quick diagnostics . The housing carries an IP20 rating for use in controlled indoor environments .

Connectivity and Wiring

Screw-type terminal blocks provide secure connections for AC input and DC output wiring . The Schneider ASP120250C includes separate ground terminals for safety grounding . Output terminals accept wire sizes up to 2.5 mm² for reliable current handling . A front-accessible adjustment potentiometer allows fine-tuning of the output voltage .
