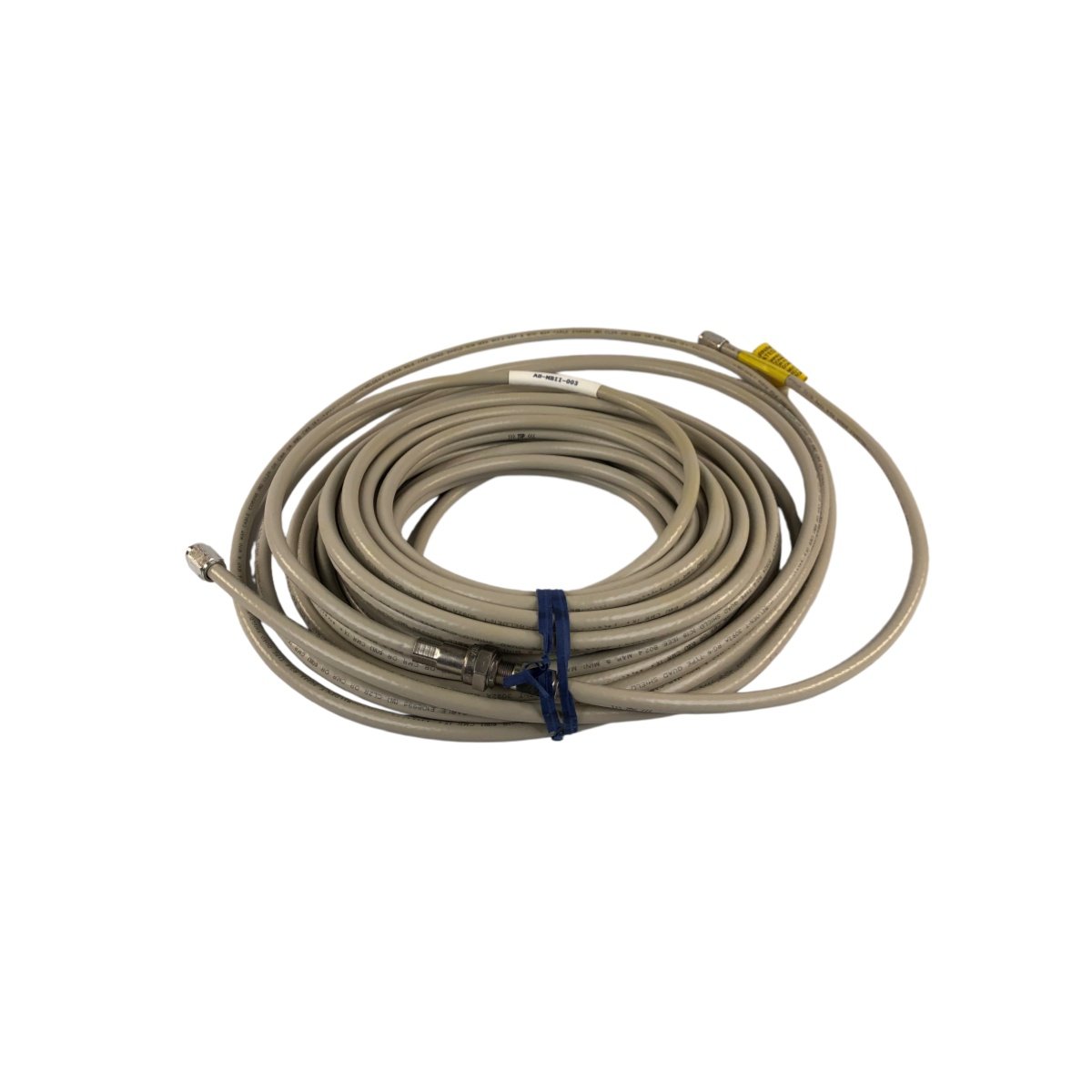

The Schneider ASMBII004 drop cable carries network signals between controllers and field devices. Engineers select this cable for dependable data transmission across industrial automation environments. Moreover, its shielded construction supports stable communication in electrically noisy plants.
Interface and Connectivity
The cable terminates with dedicated connectors for secure plug-in attachment to bus nodes. Additionally, it carries twisted-pair conductors within one protective jacket. These conductors support node-to-bus linking, therefore covering distributed network architectures. Shielding surrounds the signal pairs, which reduces electromagnetic interference considerably.
Physical Dimensions and Weight
The cable measures 4 meters in length with a nominal outer diameter of 6 mm. Furthermore, it weighs approximately 350 grams, which simplifies routing through cable trays. Consequently, technicians install it quickly without specialized tools.
Component Count and Energy Storage
The ASMBII004 integrates twisted-pair conductors for reliable differential signaling. It also contains a drain wire connected to the overall shield. Therefore, this construction maintains signal quality along the full cable run. The assembly carries roughly 8 discrete conductor elements.
Technical Specifications Table
| Parameter | Specification |
|---|---|
| Model | ASMBII004 |
| Category | Drop Cable |
| Cable Length | 4 m |
| Outer Diameter | ~6 mm |
| Weight | ~350 g |
| Conductor Type | Twisted Pair with Shield |
| Connector Type | Dedicated Bus Connector |
| Shielding | Overall Foil plus Drain Wire |
| Operating Temperature | 0°C to 60°C |
Why This Cable Suits Industrial Applications
System integrators value the ASMBII004 for its stable transmission and simple routing. Meanwhile, the overall shield protects data from electrical noise. As a result, communication reliability improves while maintenance costs decrease.
Details
| Weight | 0.15 kg |
|---|---|
| Dimensions | 110 × 72 × 38 mm |
