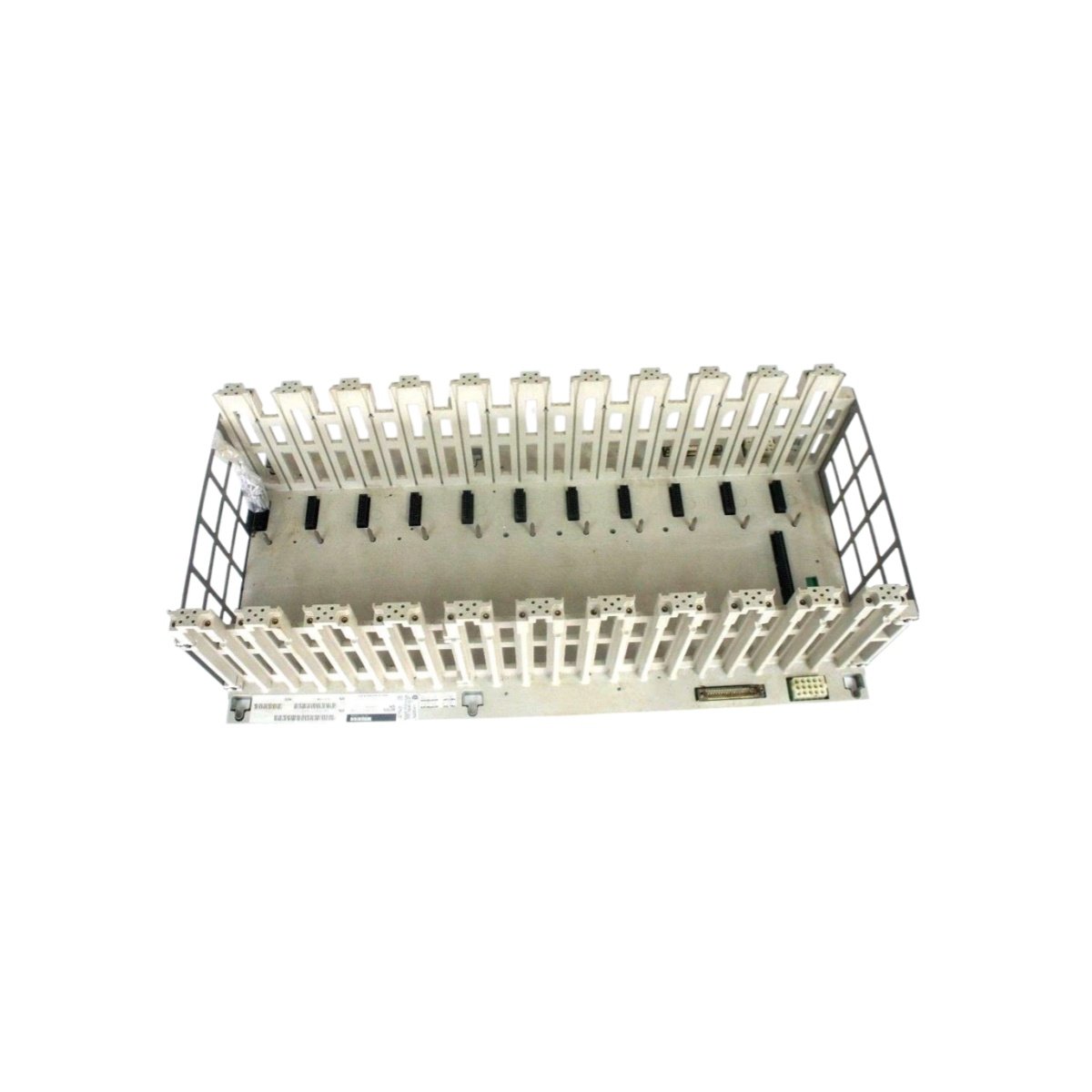

The Schneider ASH827100 is an 11-slot secondary rack engineered for the Modicon 984 automation platform. This chassis provides a robust mounting and backplane system for PLC modules in industrial control cabinets. It serves as a versatile expansion platform, supporting a variety of I/O and communication modules .
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | 11-Slot Secondary Rack |
| Compatibility | Modicon 984 Series |
| Slot Count | 11 |
| Backplane Connection | XBE connector interface |
| Power Consumption | 1 W (typical) |
| Weight | Approx. 1.39 lbs (0.63 kg) |
| Material | High-grade steel |
| Operating Temperature | -20°C to +55°C |
| Certifications | CE, UL, ISO 9001 |
Physical Design and Construction
The Schneider ASH827100 features a durable steel construction for reliable performance in demanding environments . Its 11-slot configuration offers substantial expansion capacity for integrating multiple control and I/O modules . The rack’s compact and sturdy design allows efficient use of panel space while maintaining structural integrity .
System Integration and Expansion
This rack connects to the main controller via the XBE backplane connector, enabling seamless data exchange with the CPU . Users can populate the 11 slots with a wide range of Modicon 984-compatible modules, including discrete and analog I/O, communication processors, and specialty function cards . The wide operating temperature range makes it suitable for various industrial settings, from manufacturing floors to process control plants .
