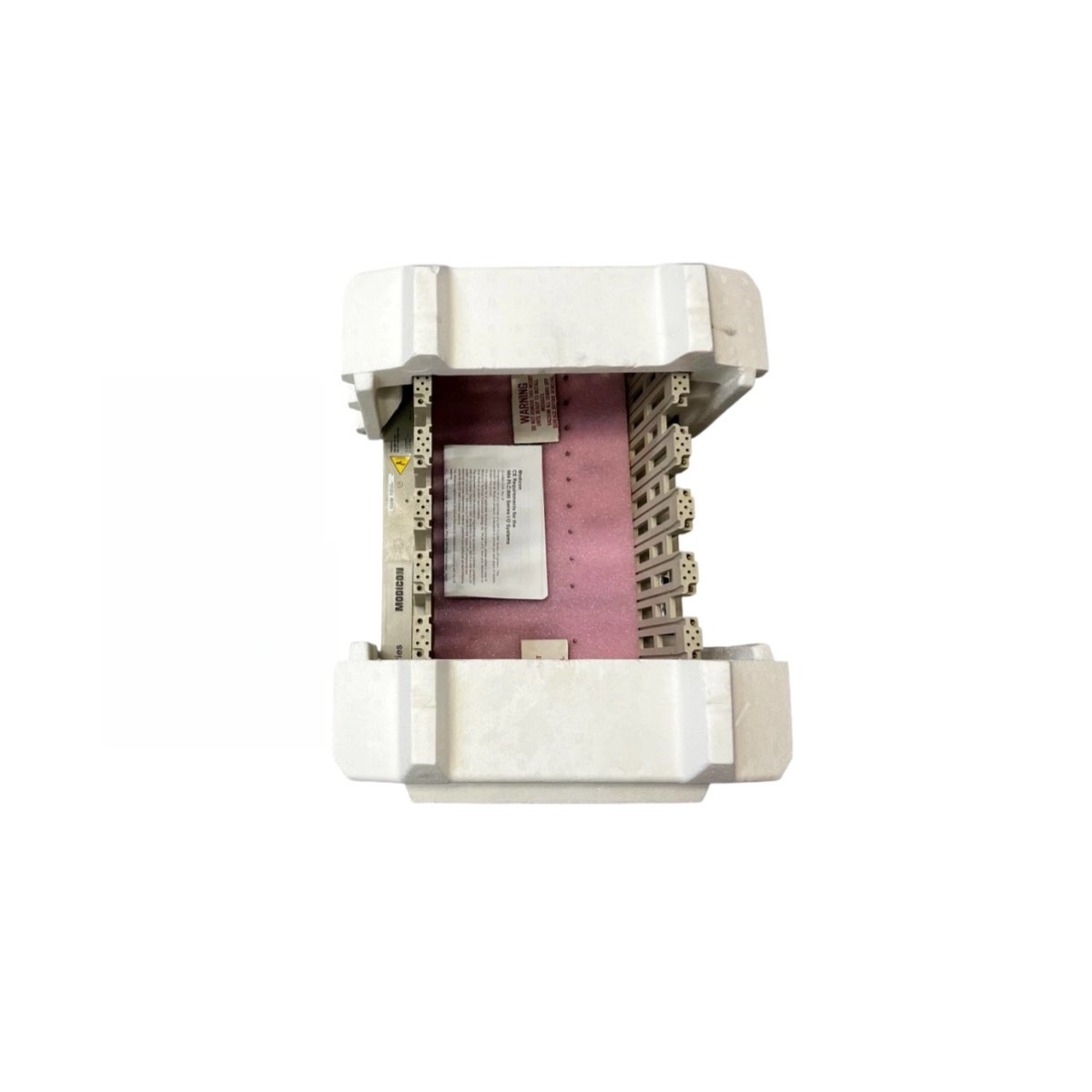

The ASH819103 housing delivers robust module mounting for Modicon 800 Series automation platforms. Schneider Electric designed this primary rack to support up to seven I/O modules in demanding industrial environments. Engineers value its standard 19-inch form factor and reliable backplane connectivity.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Schneider Electric |
| Model | ASH819103 |
| Series | 800 Series / RMS-TSG-TZ-C |
| Category | PLC Rack / Primary Housing |
| Number of Slots | 7 |
| Rack Width | 19 in (482.6 mm) |
| Slot Pitch | 1.6 in (40 mm) per slot |
| Dimensions (HxWxD) | 7.5 x 19 x 6.3 in (190 x 482.6 x 160 mm) |
| Weight | 6.6 lb (3.0 kg) |
| Mounting Type | Panel mount / standard 19-inch rack |
| Operating Temperature | 0°C to 60°C |
Design Features and Benefits
This primary housing provides seven independent slots for flexible PLC configuration. The standard 19-inch rack width ensures compatibility with existing control cabinets. Consequently, system integrators can deploy modules quickly without custom mounting hardware.
The ASH819103 maintains stable backplane connections across all installed modules. Its steel construction resists mechanical stress and vibration in industrial settings. Additionally, the compact 3.0 kg design simplifies handling during installation and maintenance.
Applications and Compatibility
This housing supports material handling, packaging, and textile machine applications. It pairs directly with Modicon 800 Series I/O and power supply modules. Furthermore, the rack accommodates RIO interface modules for distributed control architectures.
Details
| Weight | 0.25 kg |
|---|---|
| Dimensions | 130 × 100 × 20 mm |
