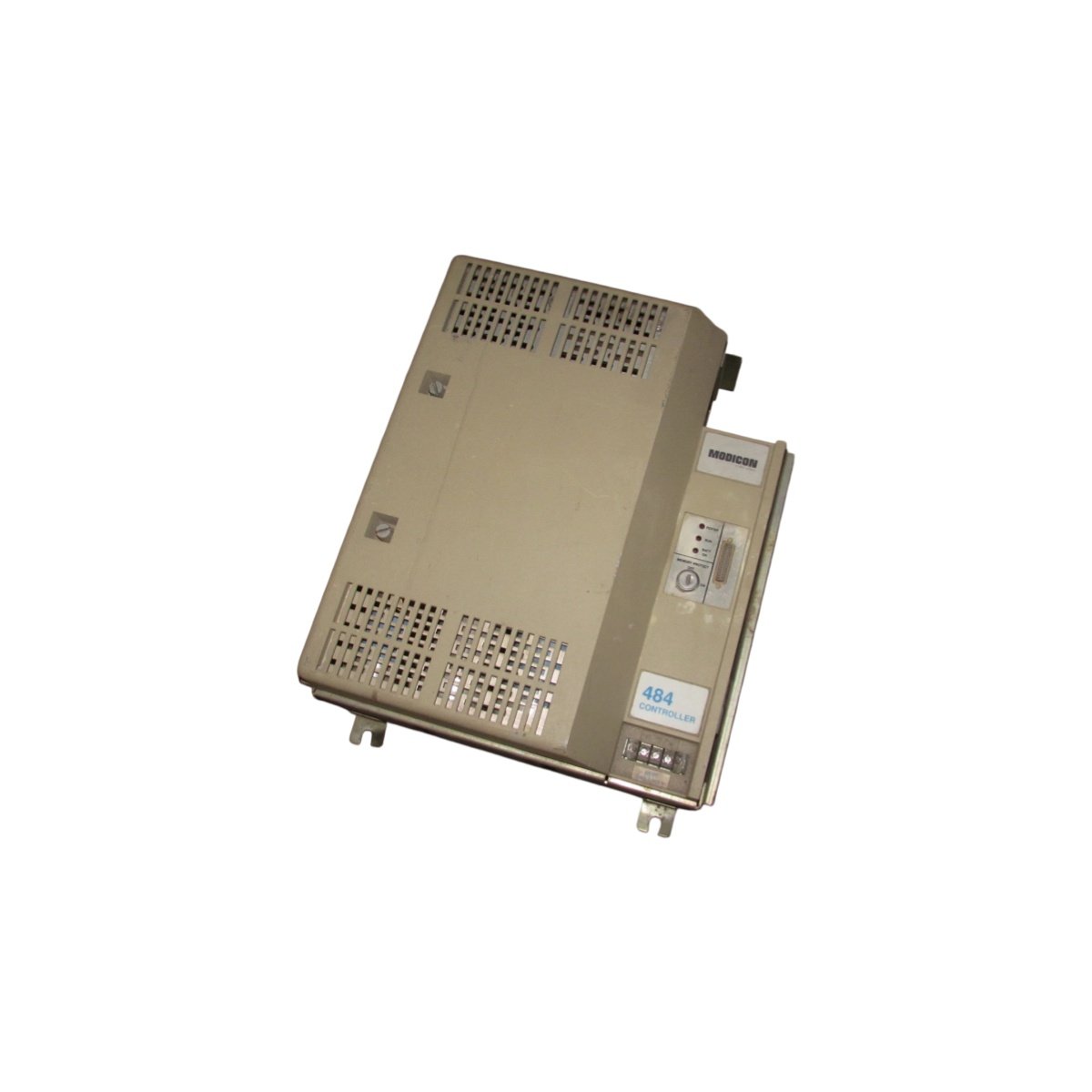

Overview of the Schneider ASC484265 Programmable Controller

The ASC484265 operates as a programmable controller within Schneider’s industrial automation portfolio. This unit executes control logic and manages data flow across connected field devices. Engineers deploy it in manufacturing plants that demand flexible, reliable process regulation.

Key Technical Specifications of the ASC484265

The ASC484265 pairs a rugged housing with multiple communication ports. Below you will find the core parameters that define this controller’s performance envelope.

Physical Design and Interface Details

The ASC484265 adopts a compact footprint that fits standard DIN rails and control panels. Its dimensions measure 150 mm in length, 105 mm in width, and 45 mm in depth. Moreover, the controller weighs roughly 480 grams, which simplifies panel mounting and field replacement. Ethernet, RS-232, and RS-485 ports handle diverse communication tasks.

Performance and Control Capabilities

This controller runs a high-speed 32-bit CPU for deterministic logic execution. It carries 8 MB of RAM alongside 16 MB of Flash storage. Furthermore, a lithium backup battery preserves critical data during power interruptions. The unit supports up to 256 digital I/O points, therefore scaling across varied applications.

Power and Environmental Considerations

The ASC484265 operates on a 24 V DC nominal power supply. Power consumption remains approximately 6 W during normal operation. The operating temperature range spans 0°C to 60°C for industrial environments. Storage temperature extends from -25°C to 70°C. Additionally, humidity tolerance reaches 95% RH without condensation.
