Technical Overview

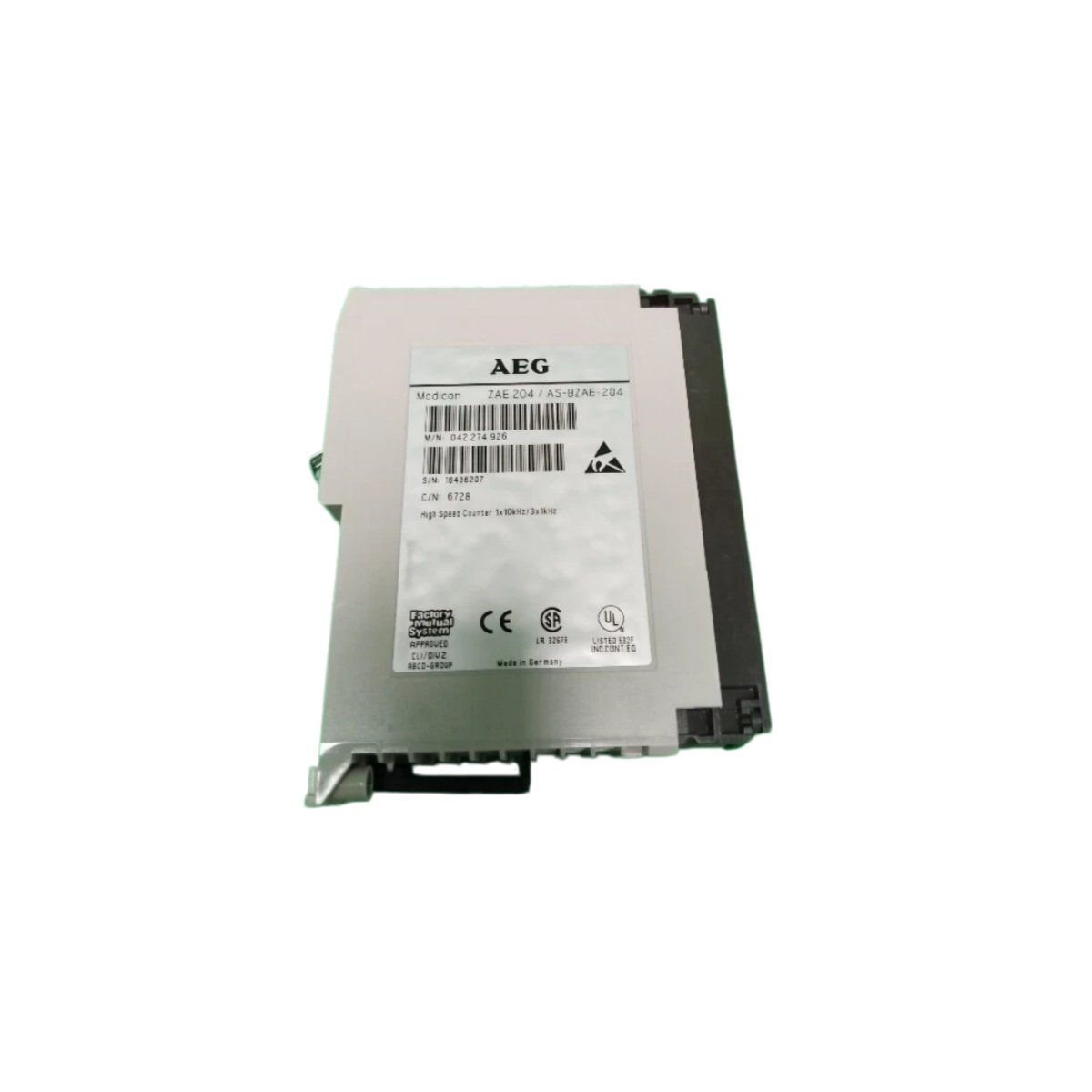

The Schneider ASBZAE204 functions as a specialty high-speed counter module within the Modicon PLC platform . This module provides four counting points with a 1 kHz response rate, making it suitable for material handling, packaging, and textile machinery applications . The Schneider ASBZAE204 integrates seamlessly into existing Modicon system configurations, offering reliable counting functionality for batch processing and machine monitoring tasks .

Key Technical Specifications

Module Architecture and Integration

The Schneider ASBZAE204 interfaces with the Modicon PLC rack via the backplane bus, enabling communication with the processor and other I/O modules. The module features LED indicators for power, status, and error conditions, facilitating quick diagnostics during operation . Its compact form factor supports easy installation in standard Modicon rack slots, and the module’s robust construction ensures reliable performance across various industrial environments .

Application and Use Cases

This high-speed counter module excels in applications requiring precise counting and position tracking. The 1 kHz response rate captures rapid pulse signals from encoders, proximity sensors, and other counting devices . Consequently, the Schneider ASBZAE204 delivers accurate counting data for speed monitoring, length measurement, and position control in automated production lines.
