Core Technical Specifications

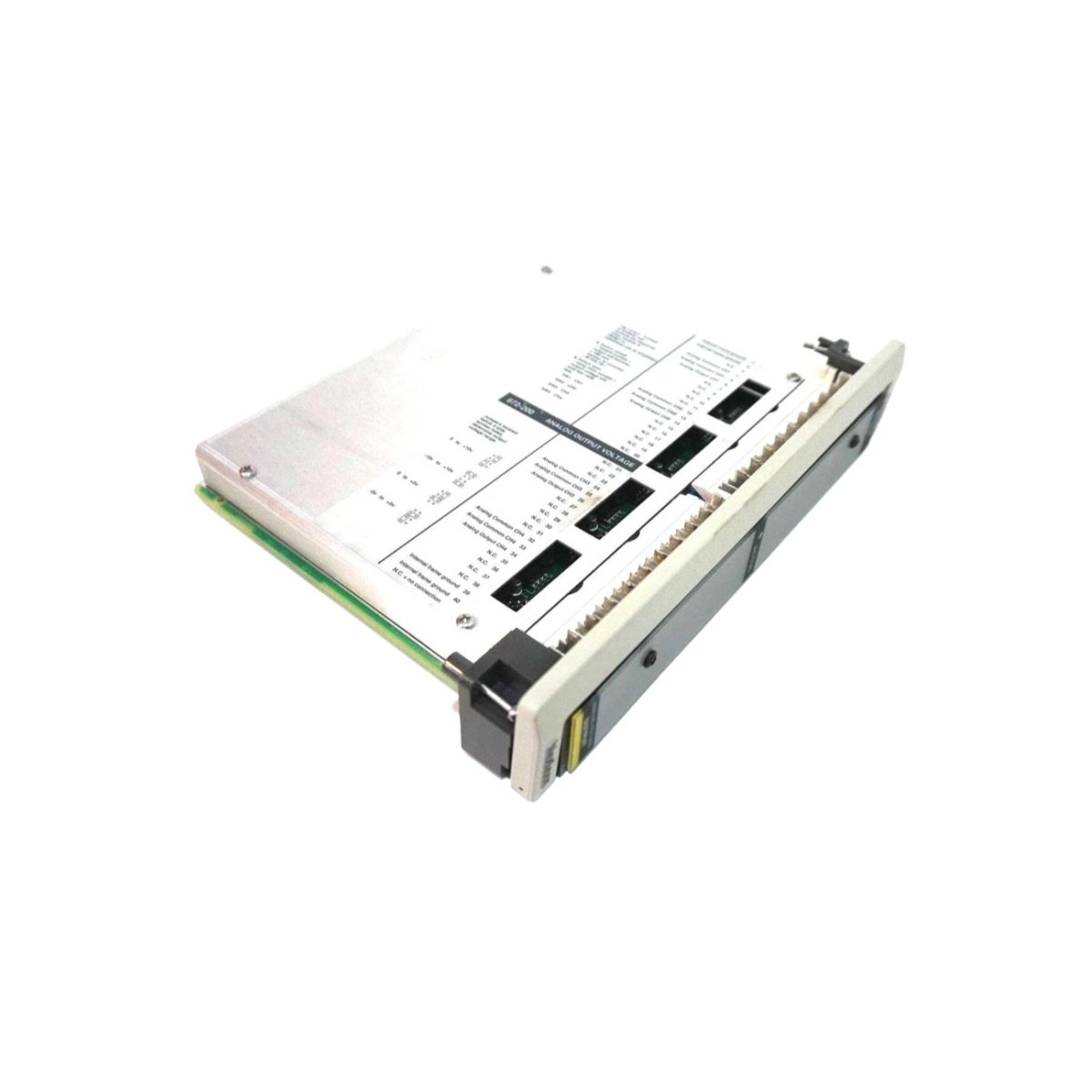

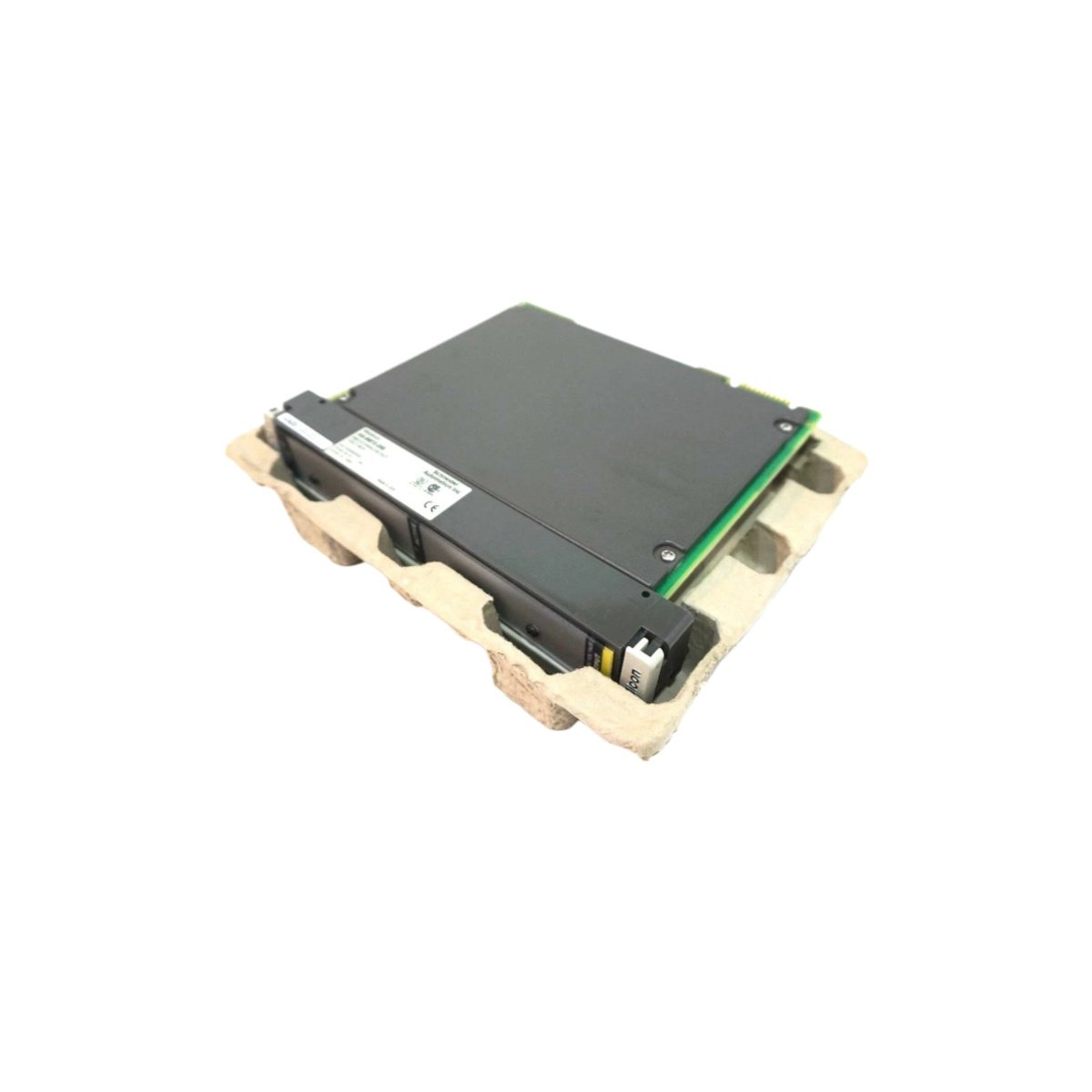

The ASBVIC200 belongs to the Schneider specialty module range and functions as a compact interface unit for distributed control tasks. It manages signal conversion and logical processing inside space-constrained cabinets. Therefore, system integrators choose this module when standard controllers cannot fit the available footprint.
Full Parameter Table
| Parameter | Specification |
|---|---|
| Model | ASBVIC200 |
| Function | Compact Specialty Module |
| Input Voltage | 24 VDC nominal |
| Number of Channels | 8 configurable channels |
| Output Current | 0.5 A per channel |
| Isolation | 500 VAC channel-to-bus |
| Communication | Backplane bus interface |
| Mounting | DIN rail or panel mount |
| Terminal Type | Removable screw terminals |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -25°C to +70°C |
| Humidity | 5% to 95% non-condensing |
| Weight | Approximately 0.35 kg |
| Dimensions | 120 mm × 80 mm × 45 mm |
Physical Design and Interface Features
The ASBVIC200 uses a slim housing that saves valuable panel space. Its removable screw terminals speed up field wiring during installation and maintenance. Furthermore, the module provides galvanic isolation, which reduces noise coupling in mixed-signal cabinets. Meanwhile, front-mounted LEDs indicate power, run, and fault conditions.
System Integration Notes
This specialty module works together with Schneider controllers and I/O cards. Consequently, it fits into existing control architectures with minimal rewiring. Engineers configure the module through standard Schneider software tools. However, users should verify backplane compatibility before mixing it with older hardware revisions.
Details
| Weight | 0.15 kg |
|---|---|
| Dimensions | 110 × 72 × 38 mm |
