Technical Specifications Overview

Functional Overview and Digital Input Handling

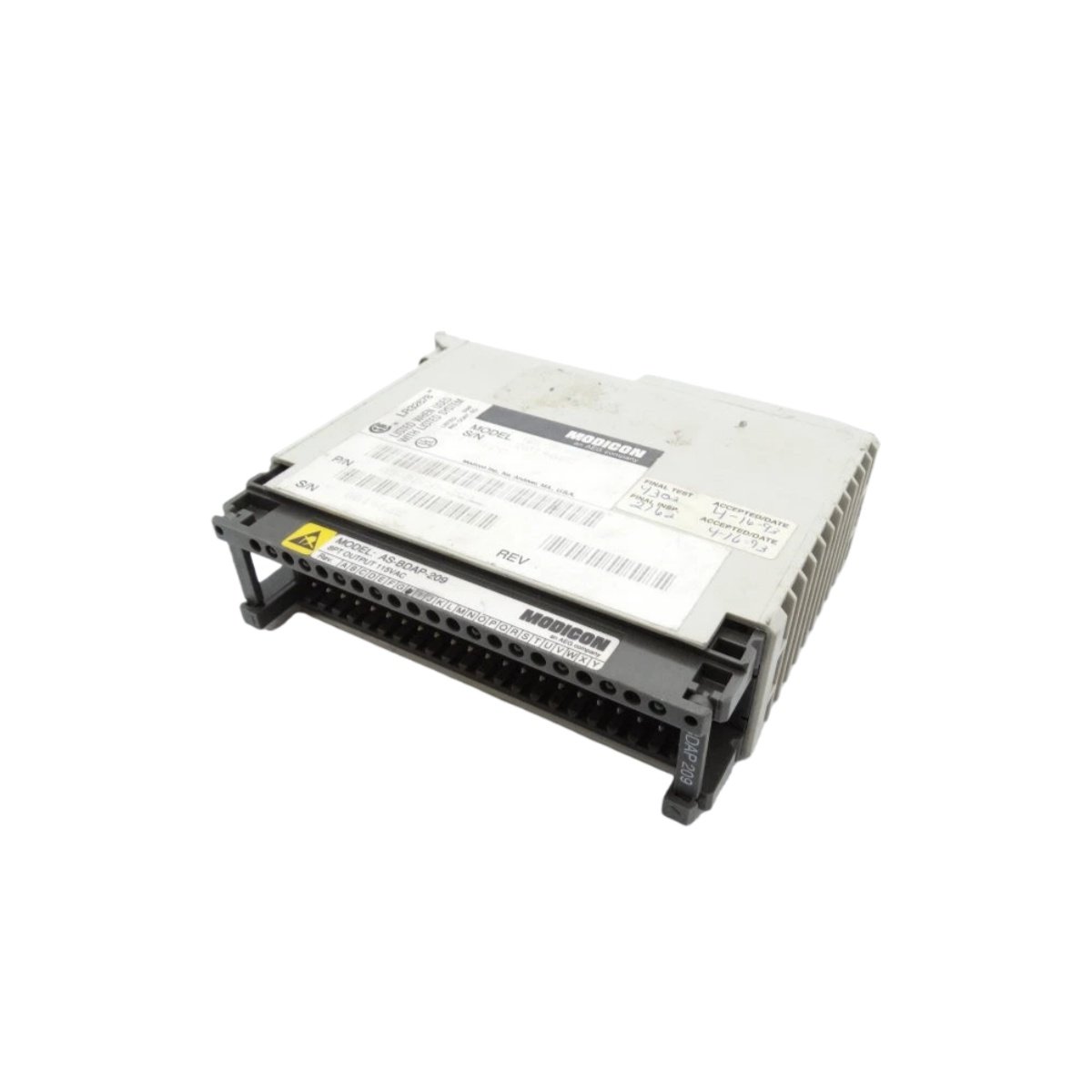

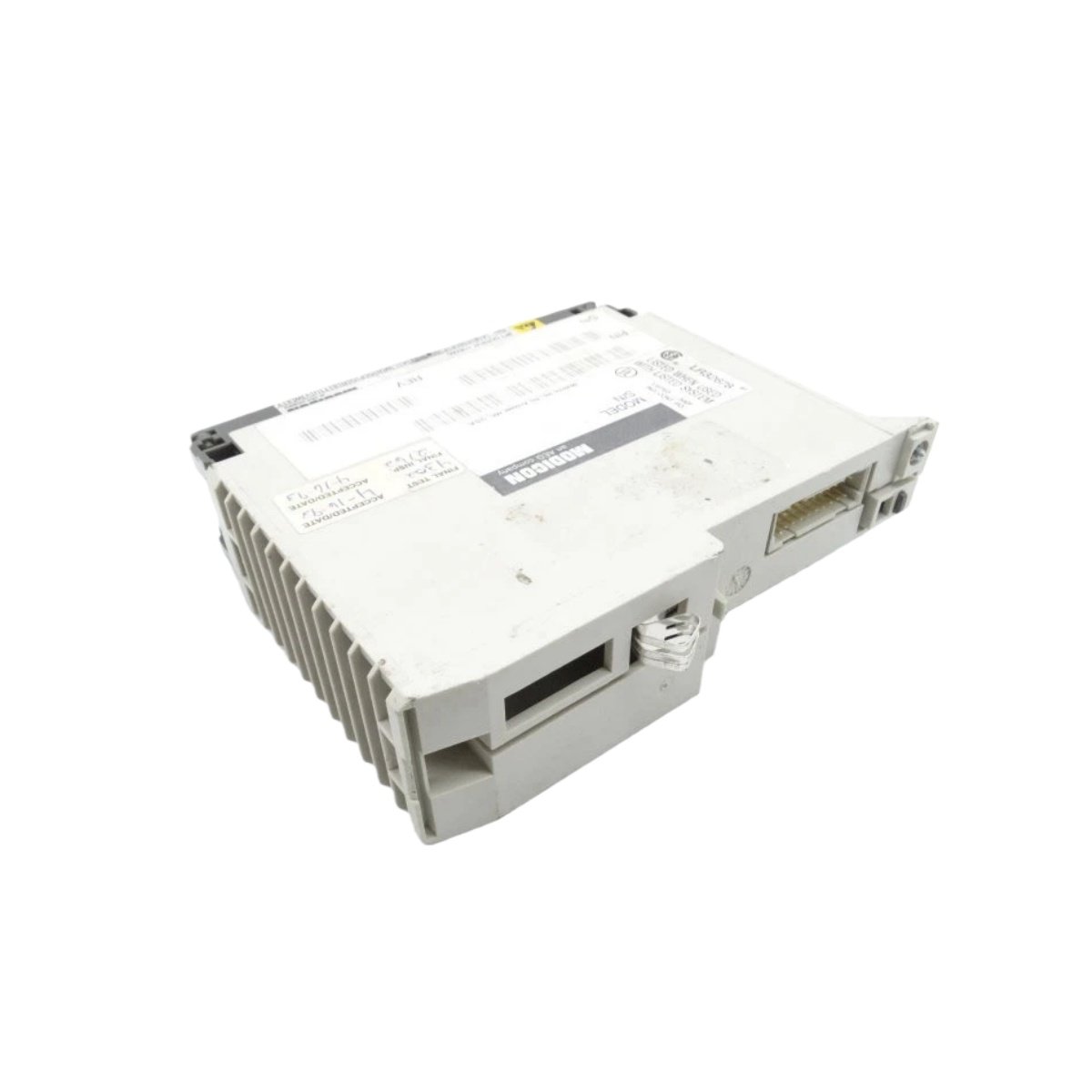

This discrete input module provides 16 channels for connecting field sensors and switches. It accepts 12–24 VDC signals from pushbuttons, limit switches, and proximity sensors. The ASBDEP296 processes these signals and delivers clean logic states to the PLC. Moreover, the module offers flexible sink or source configuration per channel for global compatibility. This design accommodates both NPN and PNP sensor outputs without external adapters. The module includes software-selectable input filtering for noise reduction. Consequently, engineers can adapt the module to various industrial applications.

Input Characteristics and Signal Processing

The Schneider ASBDEP296 features precise threshold levels for reliable signal detection. The on-state voltage threshold stands at 11 VDC minimum for secure detection. The off-state threshold sits at 5 VDC maximum for noise immunity. Each channel draws 6.5 mA typical at 24 VDC, minimizing sensor loading. The input delay of 1.5 ms provides fast response for most control applications. Furthermore, two dedicated channels support high-speed counting up to 10 kHz. This feature suits encoder, flowmeter, and high-speed positioning applications.

Input Filtering and Noise Immunity

The module includes software-configurable filtering to eliminate contact bounce and noise. Users can set the filter time constant from 0.1 ms to 10 ms per channel. Shorter filters suit high-speed counting applications for fast response. Longer filters handle industrial environments with significant electrical noise. The module also features 1500 VAC galvanic isolation between field and logic sides. This isolation protects the PLC from ground loops and voltage transients. The module also includes built-in LED indicators showing the status of each input channel.

Physical Architecture and Installation Details

The module measures 45 mm x 120 mm x 75 mm (1.8″ x 4.7″ x 3.0″) and weighs approximately 0.18 kg. Its compact design saves valuable panel space in control cabinets. The front panel provides a removable 24-pin spring clamp terminal block for field wiring. This terminal accepts wire sizes from 0.5 to 1.5 mm² for straightforward installation. The module mounts on standard DIN rails using the integrated latch mechanism. The shallow depth of 75 mm enables installation in tight enclosures.

Protection Features and Diagnostic Capabilities

The module incorporates multiple protection mechanisms for reliable field operation. Overcurrent protection prevents damage from short-circuits or wiring faults. Reverse polarity protection safeguards the module from accidental wiring errors. The ASBDEP296 also offers diagnostic features for maintenance personnel. The module detects open wires and short circuits through the system diagnostics. It reports all fault conditions to the PLC for operator notification. The 16 front-panel LEDs show real-time status for each channel.

Power Supply and Energy Storage Features

The module draws 60 mA from the 5 VDC system bus for internal logic circuits. It also requires 100 mA from a 24 VDC external supply for field inputs. The internal 100 µF capacitor provides ride-through during power interruptions. This capacitance maintains operation during momentary voltage dips. The module also includes input filtering for power supply noise rejection. Reverse polarity protection prevents damage from wiring errors on both power and signal connections.

System Integration and Configuration

The module connects seamlessly to the PLC system via the standard backplane bus. Schneider Unity Pro and Concept software provide easy configuration and programming. Users can assign channel names, set filter times, and define alarm conditions. The module also supports remote configuration for distributed installations. Diagnostics data flows automatically to the PLC for continuous monitoring. The module reports all faults and alarms for immediate operator action.

Environmental Conditions and Certifications

The module operates reliably from 0°C to +55°C ambient temperature. Storage temperatures range from -25°C to +70°C. The unit carries CE, UL, and CSA certifications for global industrial use. Install the module in a clean, dry control cabinet. The module also complies with IEC 61131-2 standards for industrial control equipment.
