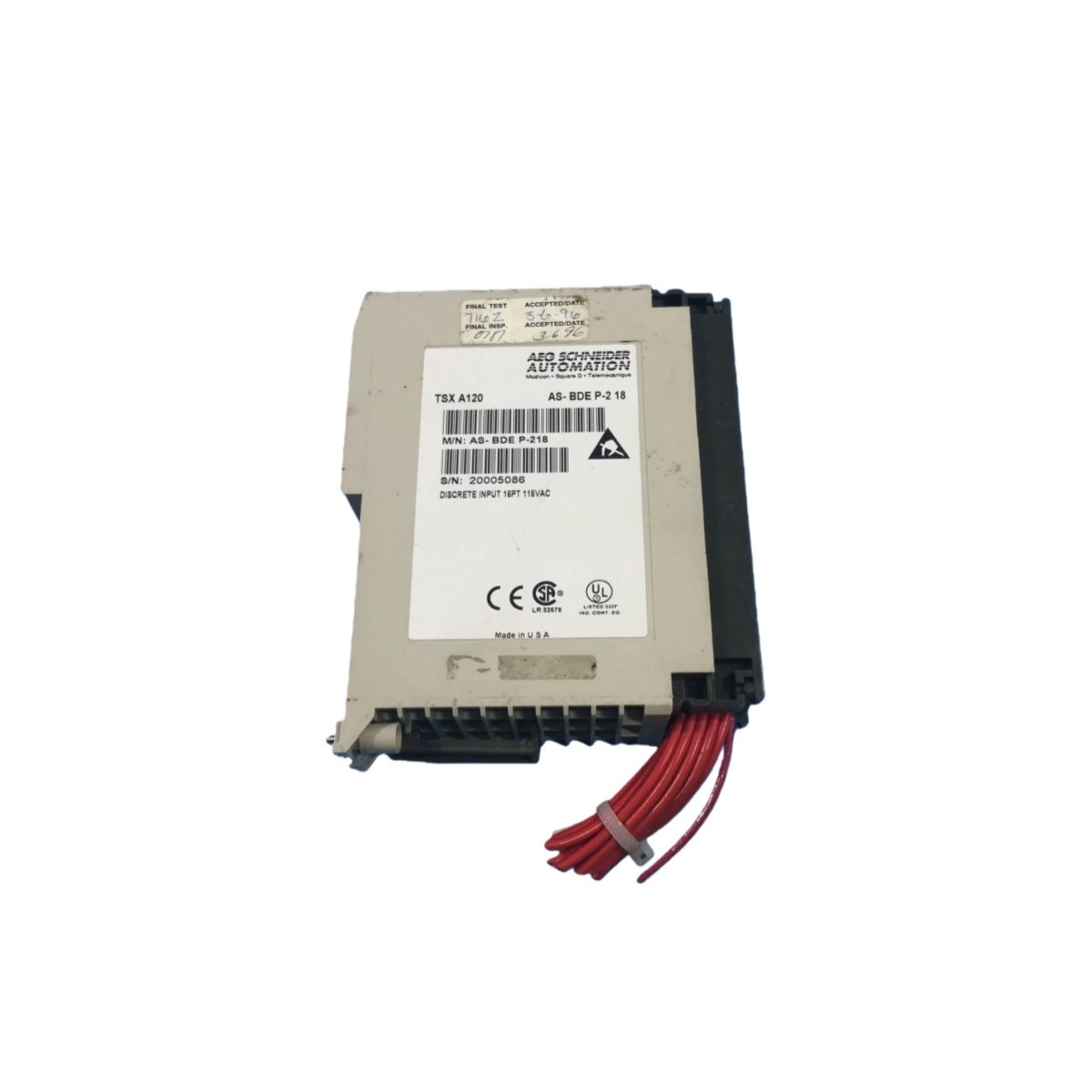

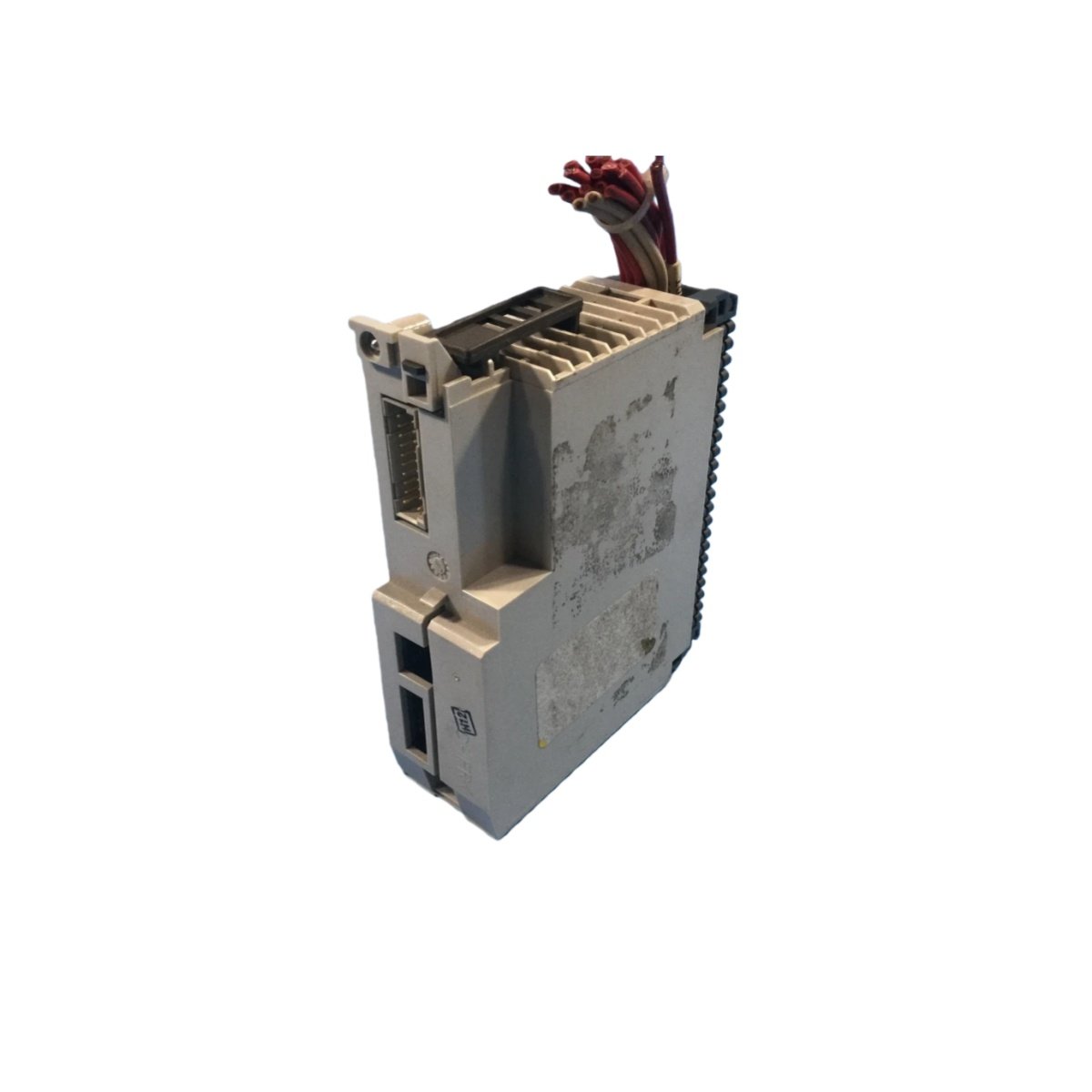

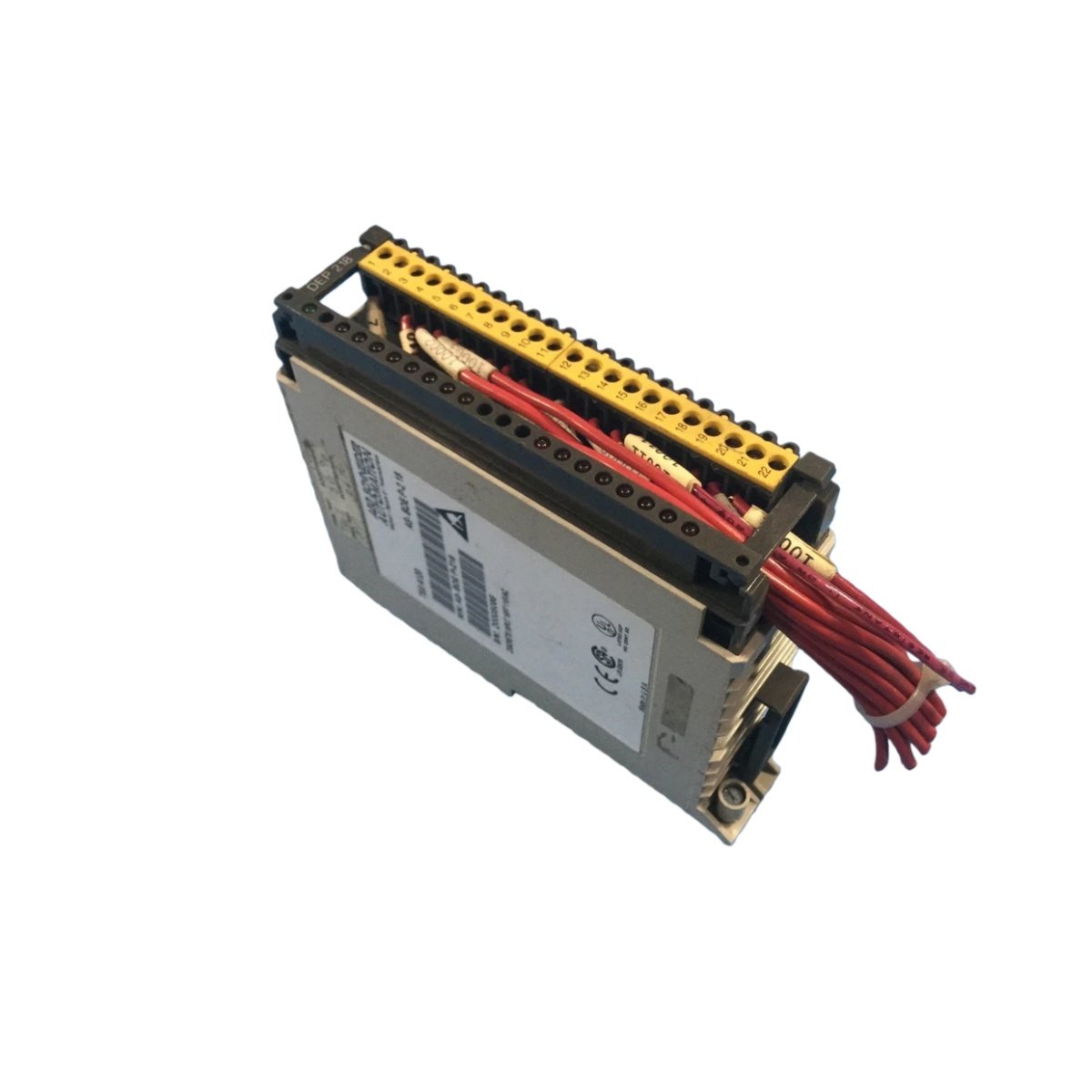

The Schneider ASBDEP218 is a digital input module for the Modicon Premium automation platform. This module offers 18 digital input channels for connecting sensors and field devices. Its compact design saves valuable space in control cabinets. It provides reliable signal acquisition for small to medium-sized I/O configurations.

Technical Specifications

The Schneider ASBDEP218 features 18 digital inputs with a nominal voltage of 24 V DC. Each channel includes short-circuit protection and LED status indication for diagnostics. The module’s response time is 3 ms per channel. It requires a 24 V DC auxiliary power supply and draws 0.4 A. The module measures 103 mm x 150.5 mm x 44.5 mm and weighs approximately 0.27 kg. An operating temperature range of 0°C to 60°C supports standard industrial installations.

Key Technical Data

Diagnostic and Monitoring Functions

The Schneider ASBDEP218 provides LED status indicators for each input channel. These LEDs assist in quick and effective troubleshooting. The module’s short-circuit protection safeguards the inputs from wiring faults. The module ensures reliable and accurate signal acquisition. The compact design allows for high-density I/O installation.

System Integration and Applications

This input module mounts directly into the Modicon Premium rack via the backplane bus. It integrates seamlessly with the Modicon Premium range of controllers. The Schneider ASBDEP218 is suitable for a wide range of industrial applications, including manufacturing, packaging, and material handling. Its robust design and reliable performance make it a dependable choice.
