Overview of the Schneider ASBDEP215 Discrete Input Module

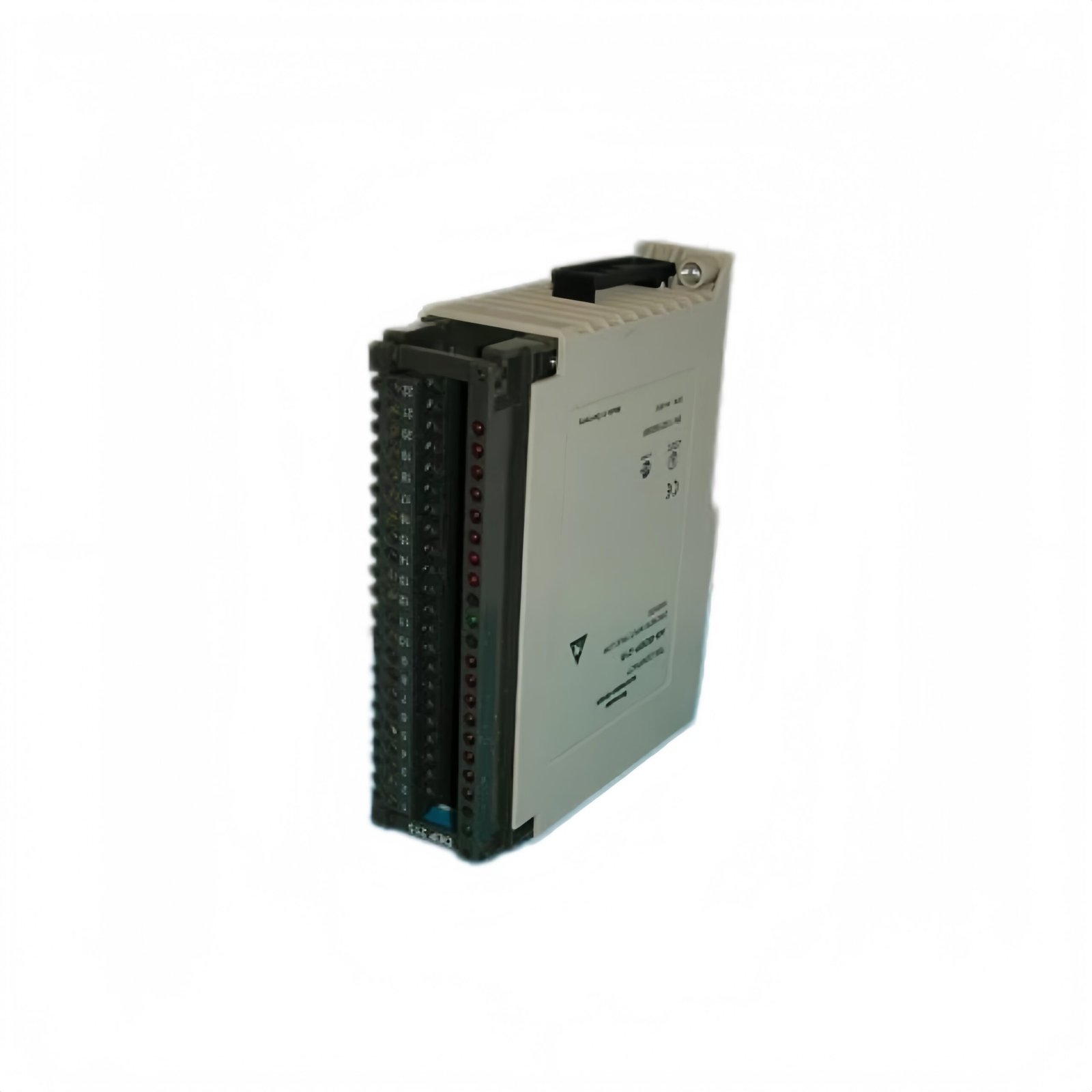

The ASBDEP215 serves as a discrete input module within Schneider’s industrial automation platforms. This unit captures ON/OFF field signals and forwards them to the host controller. Engineers deploy it in manufacturing plants that demand dependable status monitoring.

Key Technical Specifications of the ASBDEP215

The ASBDEP215 combines a rugged housing with a secure field wiring interface. Below you will find the core parameters that define this module’s performance envelope.

Physical Design and Interface Details

The ASBDEP215 adopts a compact footprint that fits standard Schneider base units. Its dimensions measure 140 mm in length, 100 mm in width, and 30 mm in depth. Moreover, the module weighs roughly 260 grams, which simplifies panel mounting and field replacement. Twenty screw terminals secure field wiring without specialized tooling.

Performance and Signal Acquisition Capabilities

This module provides sixteen discrete input channels for versatile status monitoring. Each channel draws roughly 7 mA at 24 V DC during normal operation. Optical isolation separates field circuits from internal logic, which protects sensitive control electronics. Additionally, the module recognises a 15 V DC minimum threshold for a valid ON state. Consequently, the unit suits high-density input applications in automated plants.

Power and Environmental Considerations

The ASBDEP215 operates on a 24 V DC nominal power supply. Power consumption remains approximately 3 W during normal operation. The operating temperature range spans 0°C to 60°C for industrial environments. Storage temperature extends from -25°C to 70°C. Furthermore, humidity tolerance reaches 95% RH without condensation.
