I/O Architecture and Application Scope

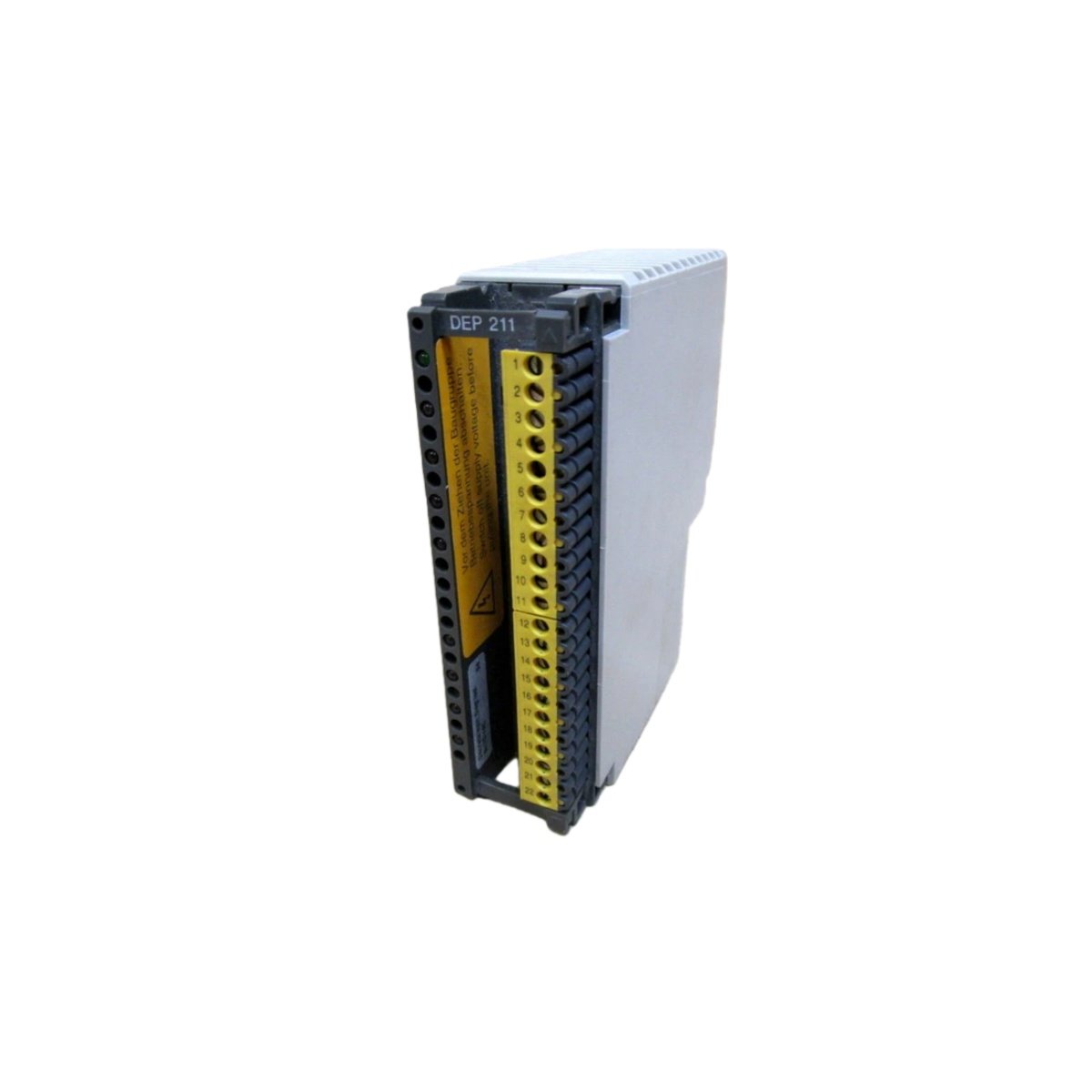

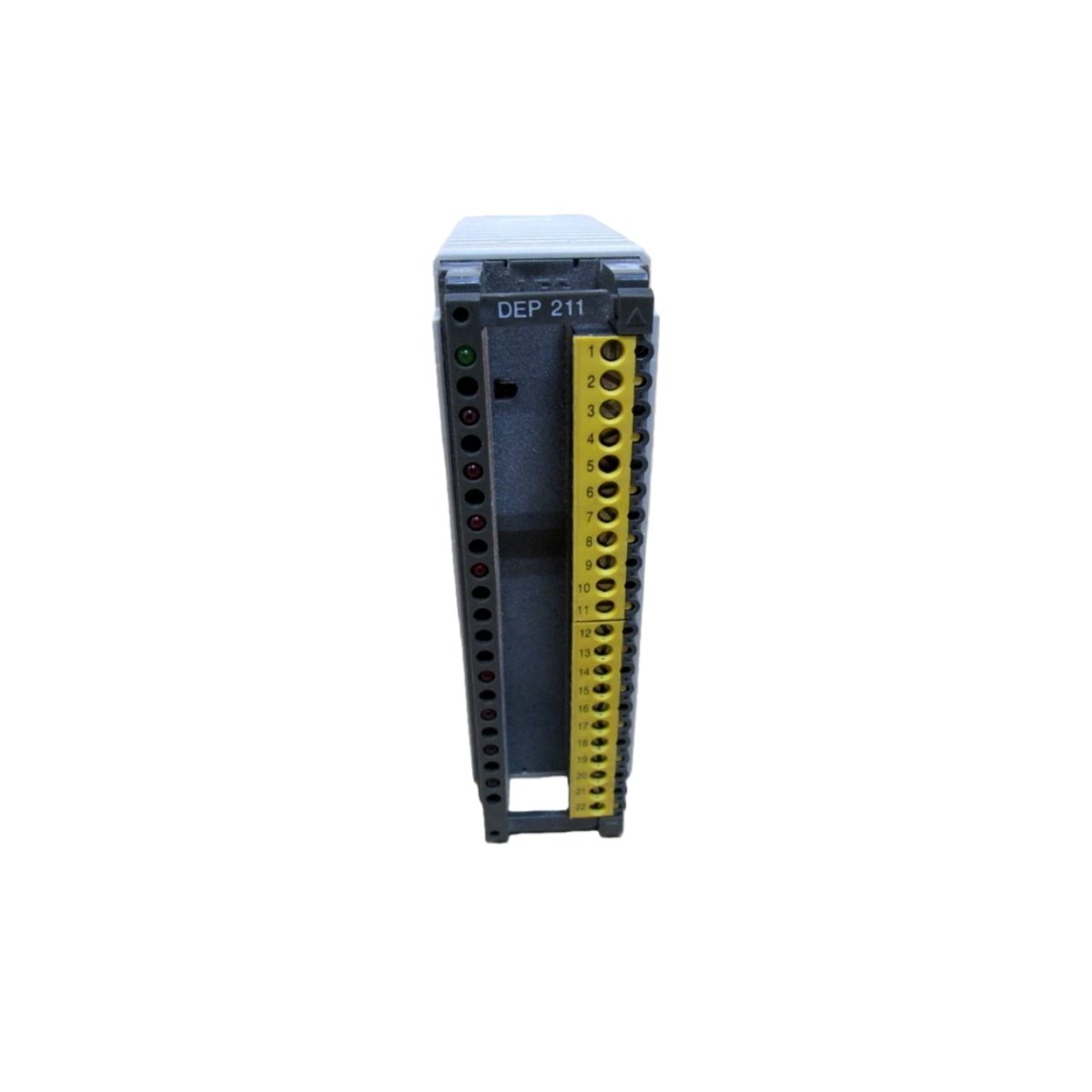

This discrete I/O module combines inputs and outputs for efficient field device control. It provides 16 digital inputs and 16 digital outputs in a single unit. The module handles 24 VDC signals from sensors and actuators directly. LED indicators display real-time status for every I/O point. This compact design reduces the number of modules in a control cabinet.

Technical Specifications

Input Signal Acquisition and Processing

The ASBDEP211 captures 24 VDC signals from pushbuttons, sensors, and limit switches. Each input channel includes a debounce filter for reliable switch reading. The module updates input status within 1 ms for fast response. Input data transfers to the controller through the backplane bus. This rapid acquisition supports high-speed automation applications effectively.

Output Control and Actuator Driving

Sixteen discrete outputs provide 24 VDC at 0.5 A for driving relays and solenoids. Each output includes short-circuit protection for fault tolerance. The module features automatic recovery after clearing a fault condition. Individual LEDs indicate the real-time on/off state for every output point. Users can configure the module for safe state behavior during communication loss.

Field Wiring and Termination Design

A removable 20-pin terminal block simplifies field wiring installation. Each input channel requires two termination points: signal and common. Each output channel also requires signal and common connections. The terminal block includes clear numbering for easy identification. This organized layout reduces wiring errors and speeds troubleshooting.

Power Architecture and Energy Efficiency

The module draws 200 mA from the 5 VDC backplane bus. It also requires an external 24 VDC supply for output field power. Total power dissipation reaches 5.0 W under maximum output load. Internal capacitors filter the power for stable operation. This efficient design minimizes cabinet heat accumulation.

Installation and Mounting Procedure

Insert the module into any Schneider I/O slot on the bus rail. Press firmly until it seats fully onto the backplane connector. Secure the module with the retaining clip mechanism. Wire the terminal block before inserting it into the module. Confirm the controller automatically detects the new module.

Environmental Performance and Construction

The module operates reliably in temperatures from 0°C to +60°C. It withstands non-condensing humidity from 5% to 95%. A conformal coating protects the PCB from moisture and dust. This construction ensures dependable service in industrial settings. The module meets all relevant Schneider Electric quality standards.

Diagnostics and Maintenance

Front-panel LEDs provide visual feedback for each input and output channel. System software offers comprehensive diagnostic data for troubleshooting. Replace the module if multiple points fail to operate correctly. Inspect the terminal block connections periodically for security.
