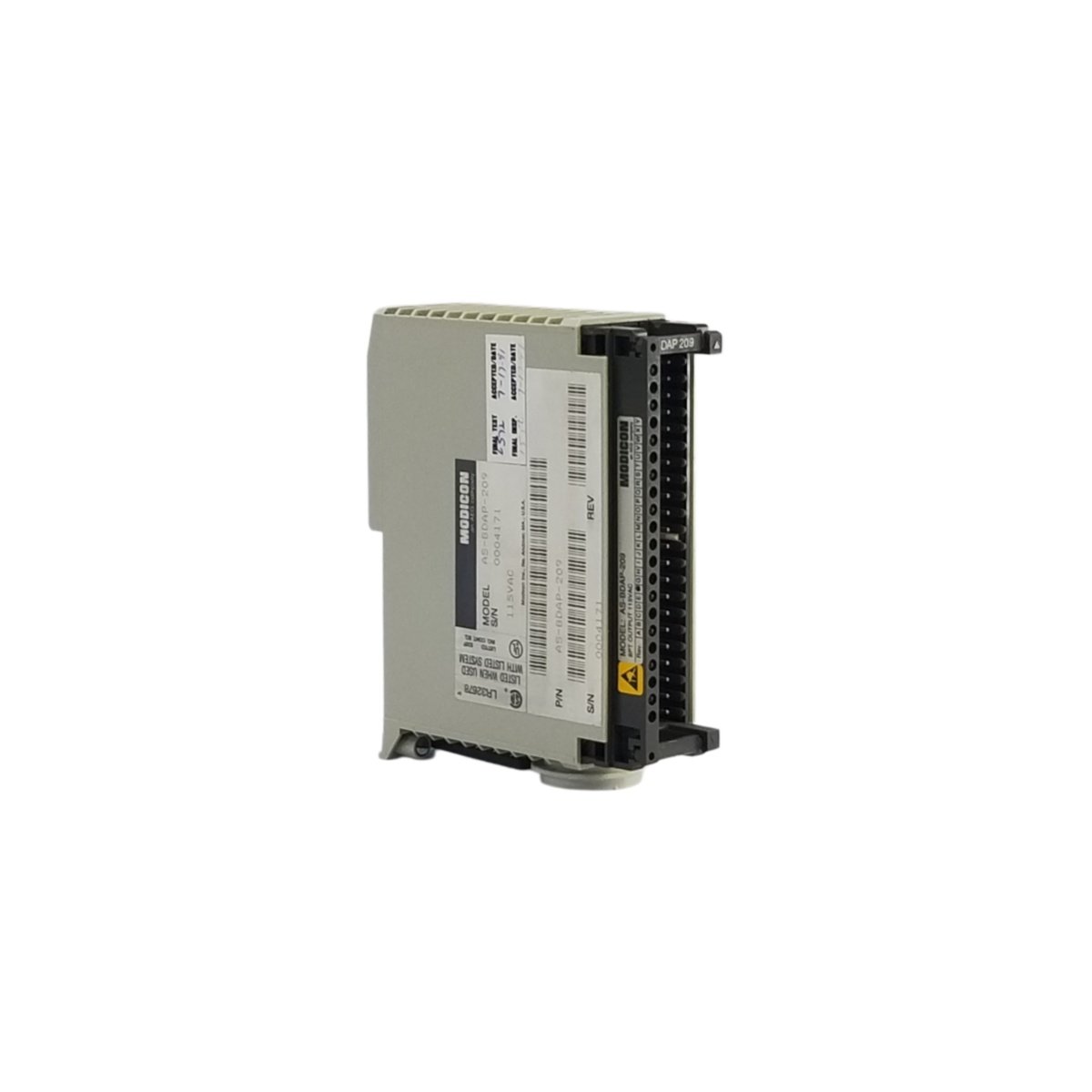

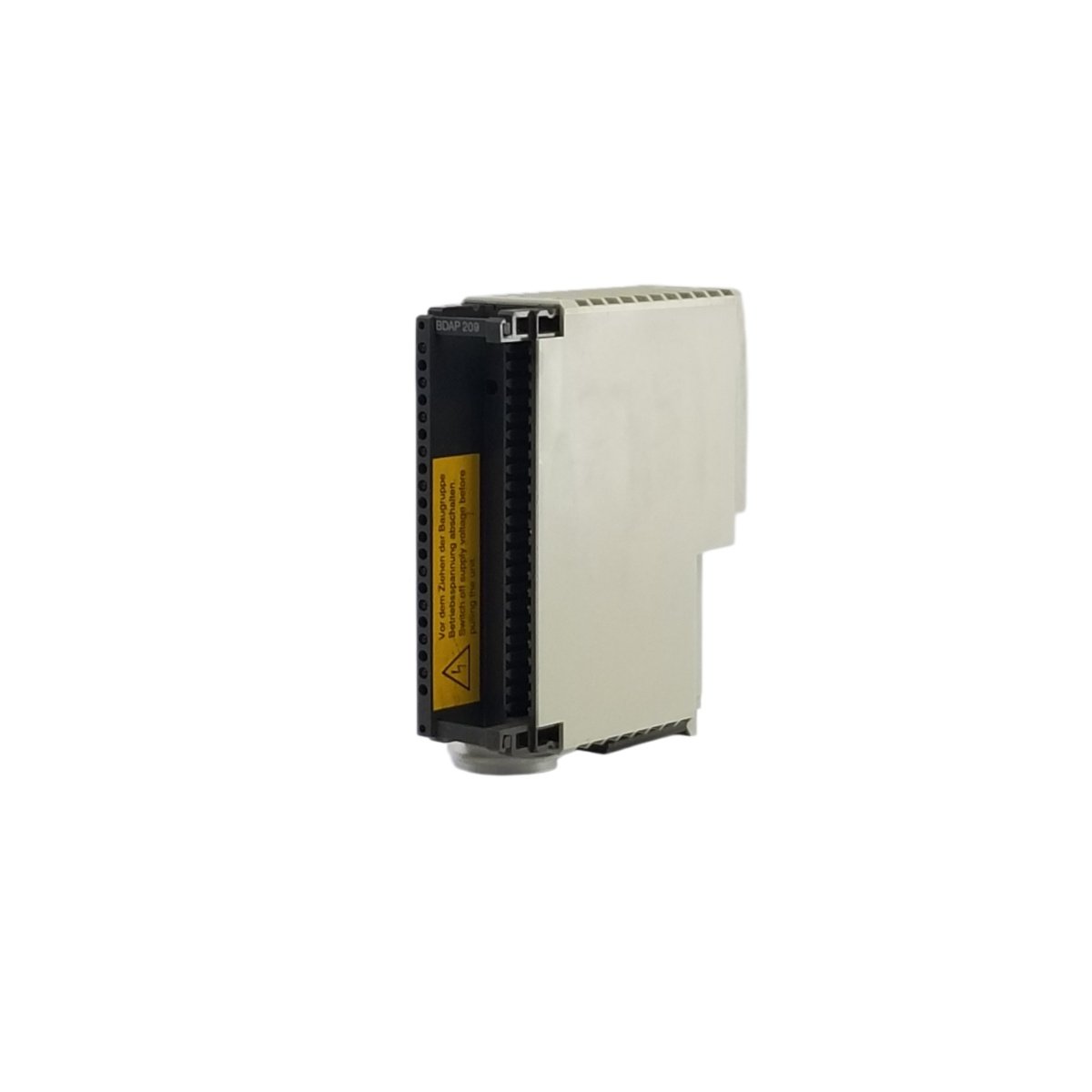

The ASBDAP292 handles mixed discrete signals inside Schneider’s Modicon automation platform. This module measures roughly 9.8 inches long, 1.2 inches wide, and 5.5 inches high. Moreover, it weighs about 0.9 pounds, which suits standard rack installation. Engineers choose the ASBDAP292 when they need combined input and output points in a single slot.
Technical Specifications and Interface Details
The unit combines digital input and output channels and therefore reduces overall module count. Specifically, it provides multiple points for switches, sensors, relays, and pilot devices. Additionally, a keyed edge connector links the module to the host backplane. Front-panel LEDs reveal per-channel status during operation and service.
| Parameter | Specification |
|---|---|
| Module Type | Digital Input/Output Module |
| Function | Combined discrete input and output |
| Input Voltage | 24 VDC nominal |
| Output Voltage | 24 VDC nominal |
| Dimensions | 9.8 x 1.2 x 5.5 in |
| Weight | ~0.9 lbs |
| Interface | Backplane edge connector |
| Indicators | Per-channel status LEDs |
Energy Storage and Signal Conditioning
Internal capacitors on the ASBDAP292 supply local energy storage for clean switching thresholds. Consequently, the module rejects electrical noise from motors and contactors nearby. This buffering keeps logic readings stable in demanding plant environments. The I/O stages therefore respond consistently across repeated switching cycles.
Installation and Compatibility Notes
Because the ASBDAP292 slides into standard Modicon racks, technicians complete installation in minutes. They should confirm connector alignment before they apply power to the system. Furthermore, the module integrates smoothly with existing Modicon control hardware. Always store spare units in anti-static packaging to protect sensitive circuitry.
Details
| Weight | 0.15 kg |
|---|---|
| Dimensions | 110 × 72 × 38 mm |
