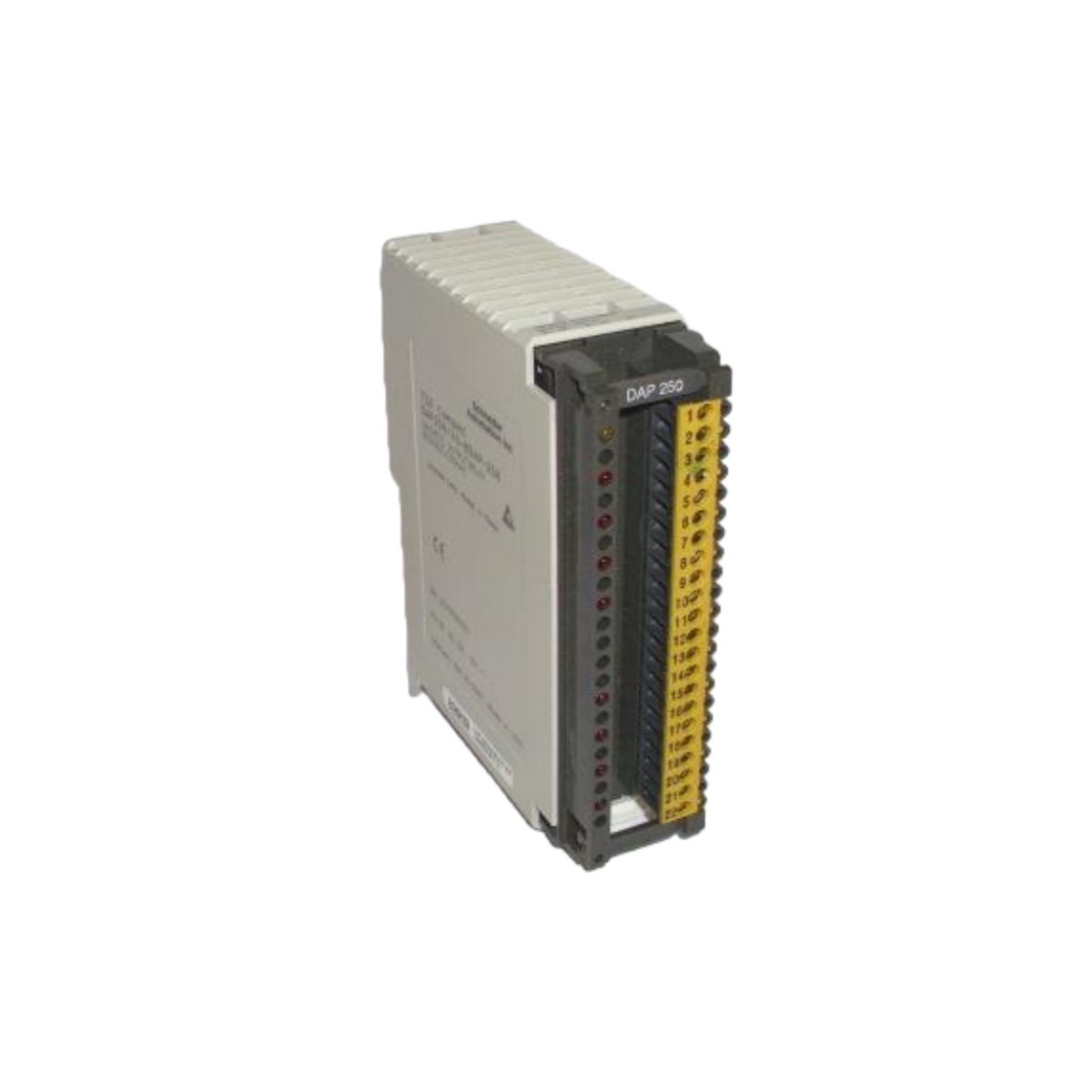

This discrete combo I/O module combines inputs and outputs for Schneider PLC systems. It provides reliable signal acquisition and actuator control in a single unit. Therefore, this component saves rack space while delivering essential machine control functions.

Physical Dimensions and Weight Specifications

The Schneider ASBDAP252C features a compact housing for DIN rail mounting. Its width measures 56 mm for standard industrial enclosures. The total depth reaches 100 mm including the terminal block. Consequently, technicians can install this module in tight cabinet spaces.

Interface Types and Connection Layout

The Schneider ASBDAP252C provides spring-clamp terminals for field device wiring. A 20-pin backplane connector supplies power and data from the CPU. The front panel carries LED indicators for each input and output channel. Hence, operators can monitor all signal states at a quick glance.

Component Count and Channel Configuration

This combo I/O module contains one main board with 12 digital input channels. The board holds 8 digital output channels for actuator control. You will also find optocoupler isolation between the field and backplane. An onboard ASIC handles high-speed signal processing.

Energy Storage and Power Consumption

The Schneider ASBDAP252C draws 80 mA from the 5V backplane supply. It also requires 100 mA from an external 24V supply for field circuits. A small capacitor bank filters noise on the output power rail. This storage prevents false triggering from voltage transients.

Signal Processing and Reliability Features

The module scans all inputs within a 2 ms cycle time. It updates outputs every 1 ms for fast response. Users can read diagnostic data via the PLC programming software. This module carries a high MTBF rating for critical applications.
