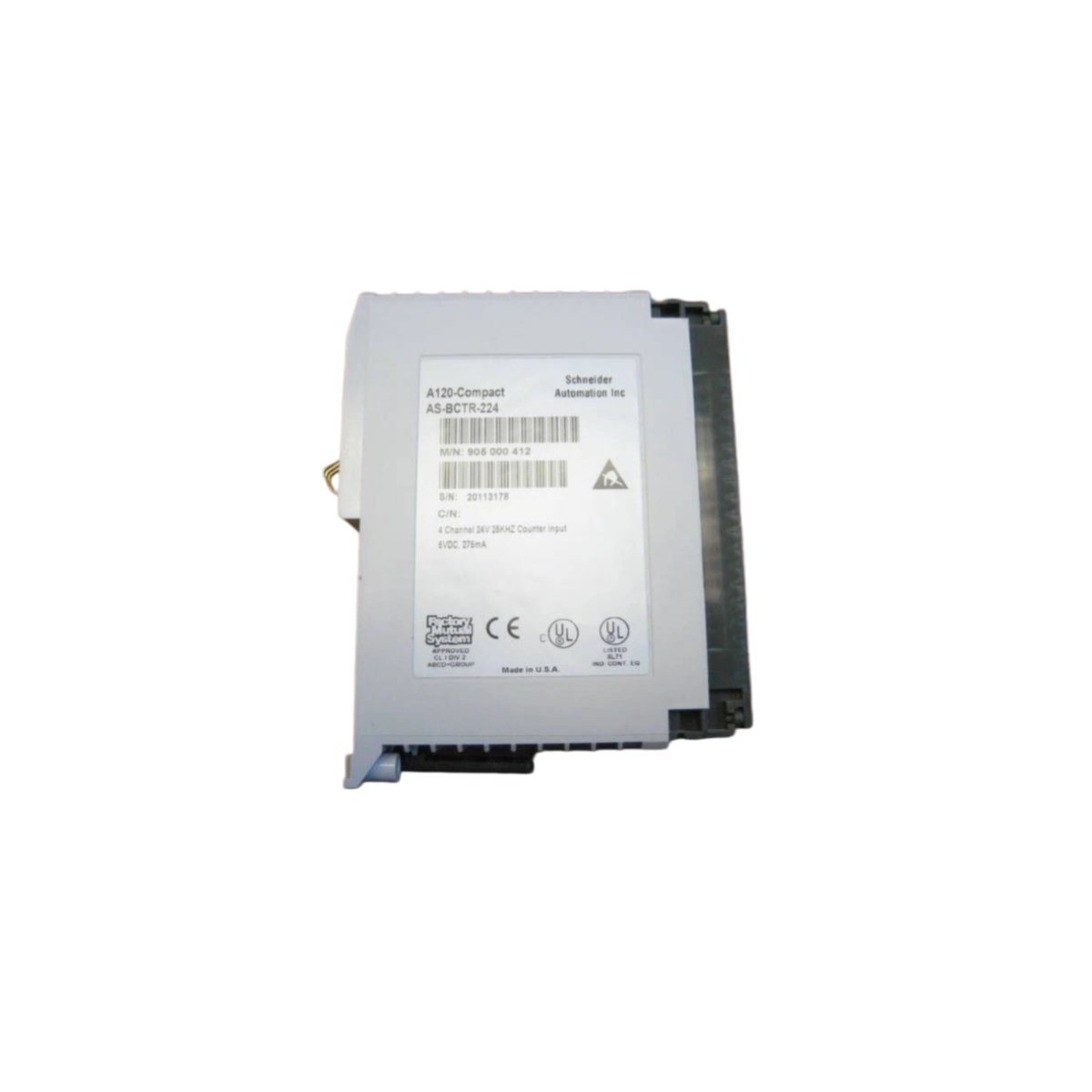

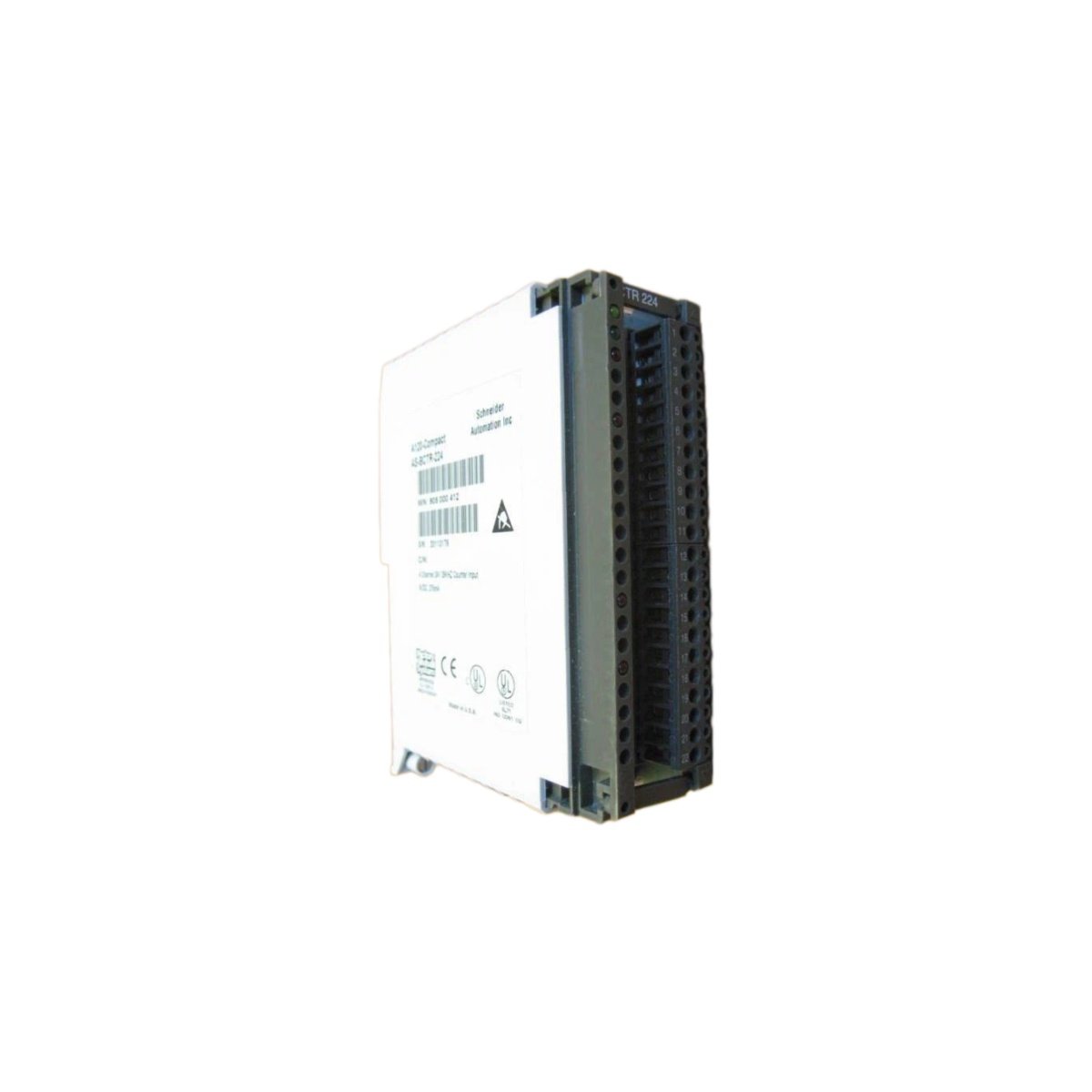

The Schneider ASBCTR224 counter input module captures high-frequency pulses from incremental encoders and proximity sensors. This two-channel device processes signals up to 200 kHz per channel, making it suitable for high-speed motion control applications. Its compact form factor measures 105 mm in height and 92 mm in depth, fitting seamlessly into standard control cabinets.

Technical Specifications

Signal Processing and Counting Capabilities

Each channel on the ASBCTR224 independently handles incremental encoder signals with A, B, and Z phases. The module supports four distinct counting modes, giving you flexibility for various sensor types. Its 32-bit counter accommodates long-duration measurement tasks without overflow concerns. The device also includes a programmable preset value for triggering specific output actions when reaching target counts.

Input Interface and Wiring Configuration

This module accepts both differential and single-ended input signals from 5 V to 30 V DC. The 10-pin terminal block provides dedicated connections for each channel’s power, signal, and shield lines. You can easily configure the inputs via software to match either NPN or PNP sensor outputs. Such versatility reduces the need for external signal conditioning components in most installations.

Synchronization and System Integration

The ASBCTR224 synchronizes multiple channels to capture simultaneous events with microsecond precision. Engineers can daisy-chain several modules together for multi-axis motion applications. The module communicates with the controller through a high-speed backplane bus, ensuring minimal latency in data transmission. This architecture supports real-time position tracking and velocity monitoring for servo-driven machinery.

Environmental Performance and Durability

This counter module operates reliably in ambient temperatures ranging from 0°C to 60°C. Its robust construction resists humidity up to 95% without condensation, suitable for factory floor conditions. The isolation voltage of 500 V AC protects the controller from potential ground loops and electrical noise. Such protection enhances system stability in environments with heavy motor loads or variable-frequency drives.

Installation and Maintenance Considerations

Mount this module on a standard 35 mm DIN rail without requiring special tools. Its front-facing LED indicators provide immediate visual feedback on power status and pulse activity. Each LED helps technicians diagnose signal presence or counting faults quickly. The removable terminal block simplifies wiring replacement during maintenance without disturbing existing connections.
