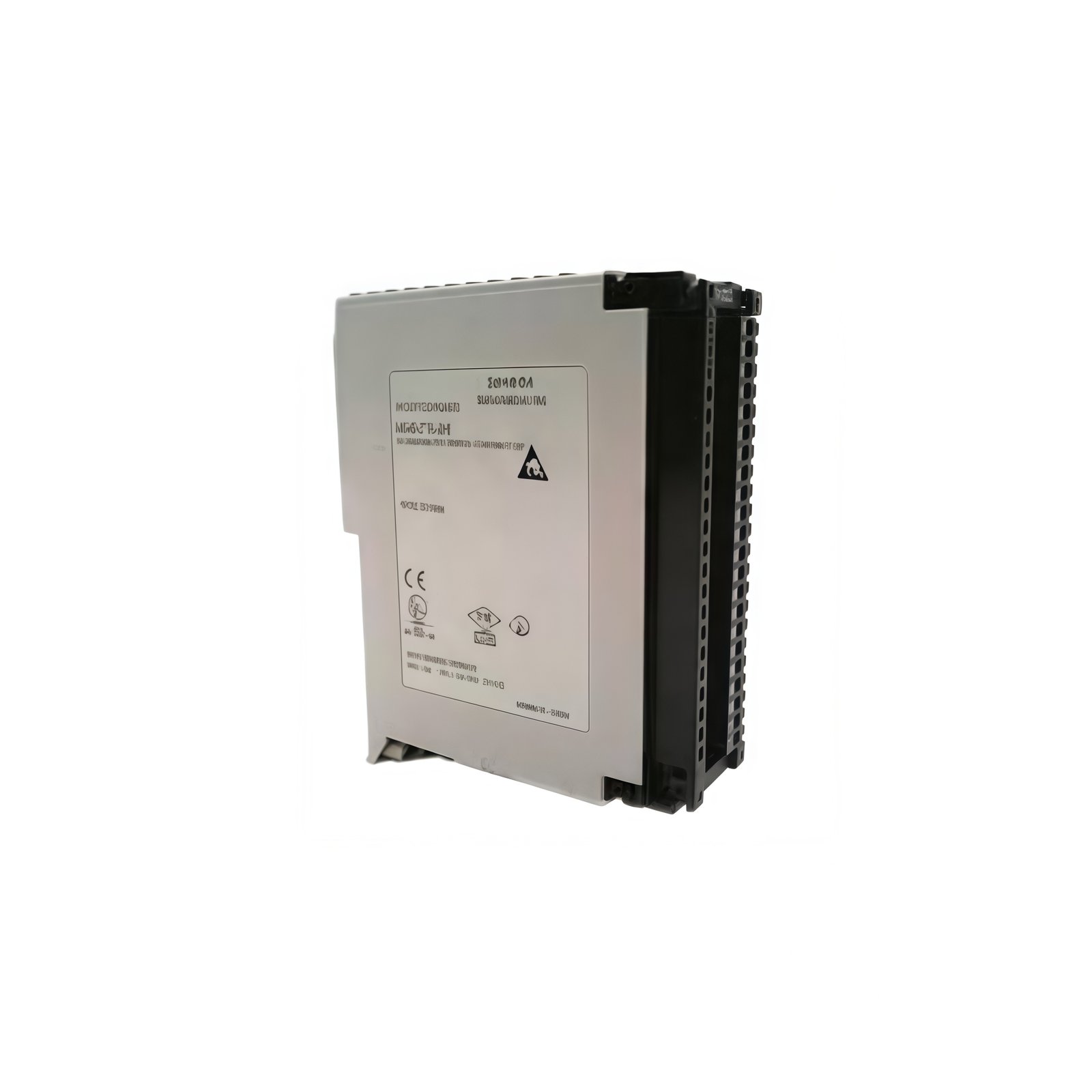

The ASBCTR205 functions as a counter module within Schneider industrial automation systems. This unit records pulse events from encoders, proximity sensors, and flow meters. Consequently, engineers gain precise tallying for production counting and position tracking tasks.

Technical Specifications Overview

The ASBCTR205 pairs a narrow slot width with sturdy industrial construction. Moreover, its parameter set helps engineers plan channel counts and signal wiring accurately.

Interface and Bus Communication

The ASBCTR205 communicates through the backplane bus connector. Therefore, it forwards counted values quickly to the host controller. Each channel accepts fast pulse trains from standard industrial sensors. In addition, the card draws 24 V DC directly from the rack power rail.

Physical Characteristics and Installation

This module measures roughly 160 mm wide and 100 mm high. Furthermore, its 40 mm depth suits compact cabinet layouts. The ASBCTR205 weighs about 0.3 kg. Consequently, installation requires no lifting tools or special fixtures. Technicians align the connector, then secure the unit with retaining screws.

Operational Role and Maintenance

Engineers apply the ASBCTR205 for batch counting, length measurement, and speed monitoring. Meanwhile, front-panel LEDs show live channel status during troubleshooting. The module holds no battery or capacitor for energy storage. Thus, it avoids periodic cell replacement work. Instead, it relies entirely on the backplane for power.
