Digital I/O Expansion for Distributed Systems

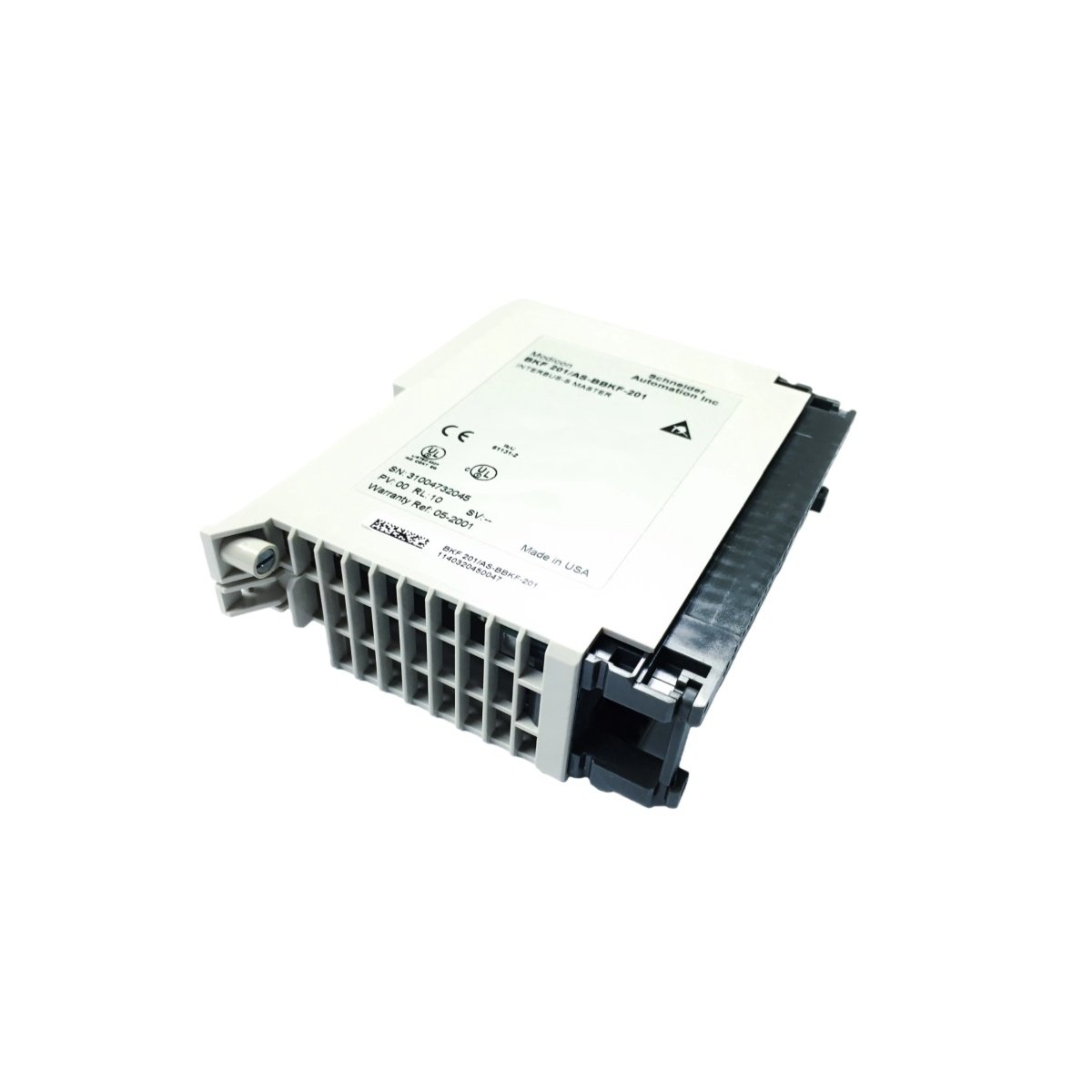

The Schneider ASBBKF202 serves as a digital I/O module within the Advantys STB distributed architecture. This module provides 8 discrete input channels and 8 transistor output channels for field device control . It operates at a nominal voltage of 24 V DC for compatibility with standard industrial sensors . Consequently, this module suits conveyor systems, pick-and-place machines, and material handling equipment.

Input and Output Specifications

Each input channel accepts 24 V DC signals from pushbuttons, proximity sensors, or limit switches . The inputs feature a nominal current draw of 7 mA for reliable signal detection . The ASBBKF202 outputs deliver 0.5 amperes per channel for driving solenoid valves or indicator lamps . Outputs are protected against short-circuit and overload conditions automatically .

Communication and Integration

This I/O module connects to the fieldbus through the Advantys STB island architecture . It supports hot-swap functionality for module replacement without system shutdown . The Schneider ASBBKF202 integrates seamlessly with STB power supplies and I/O modules . Moreover, LED indicators display channel status for rapid troubleshooting during operation .

Physical and Environmental Specifications

The module weighs 0.35 kilograms and fits standard STB DIN rail mounting . Its compact dimensions conserve valuable space within control cabinets . The ASBBKF202 operates reliably within a 0 to 55 °C temperature range . An IP20 protection rating suits indoor installation in controlled environments .
