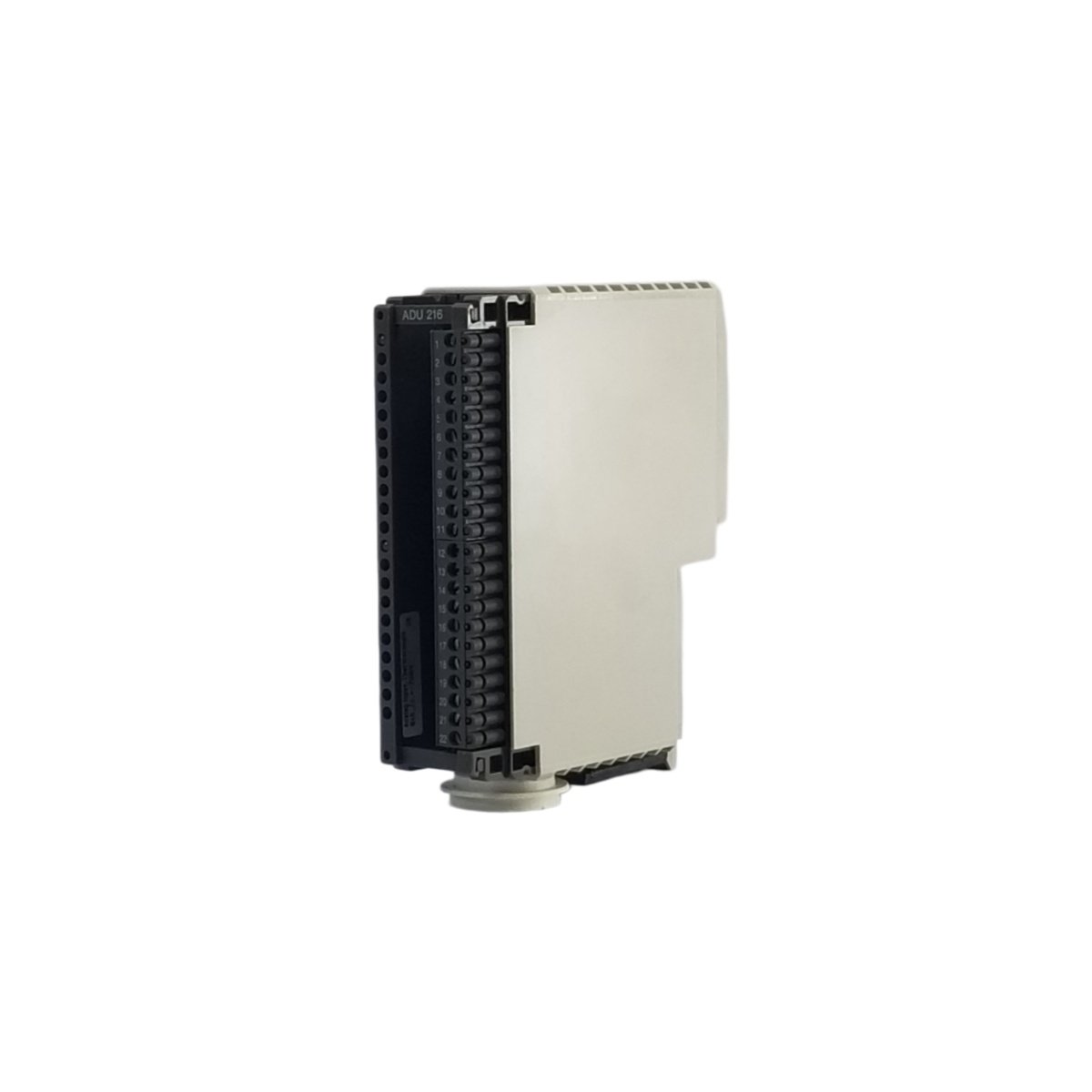

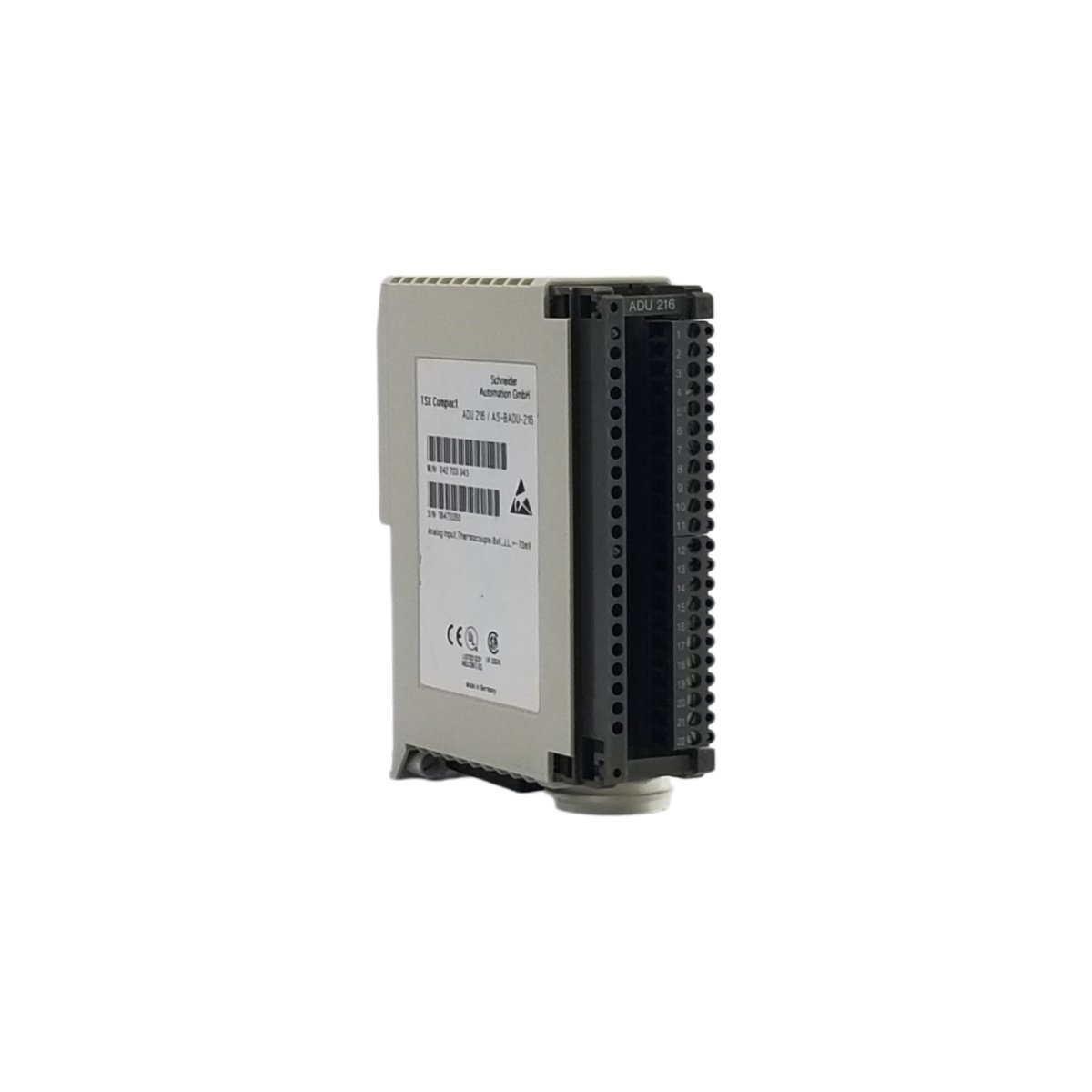

16-Channel Analog Input Module for Advantys STB Systems
The Schneider ASBADU216 functions as an analog input module within the Advantys STB distributed I/O platform. This module converts analog signals from sensors and transmitters into digital values for the controller. Its 16-channel design delivers high-density analog acquisition in a compact form factor.
This analog input module accepts 0 to 10 VDC and 4 to 20 mA signals with a 12-bit resolution. A built-in filter reduces noise and stabilizes readings for accurate process control. The module connects to the STB bus via the standard island bus interface.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ASBADU216 |
| Type | Analog Input Module |
| Platform | Advantys STB |
| Number of Channels | 16 (single-ended) |
| Input Range | 0 to 10 VDC, 4 to 20 mA |
| Resolution | 12-bit |
| Update Time | 20 ms per channel |
| Filtering | Software configurable |
| Bus Interface | STB island bus |
| Isolation | 500 VAC (channel to bus) |
| Power Consumption | 140 mA (from bus supply) |
| Dimensions | 72 x 82 x 90 mm |
| Weight | 0.12 kg (approx.) |
| Operating Temp | 0 °C to 55 °C |
| Compliance | UL, CSA, CE, ATEX |
The ASBADU216 offers 16 channels for high-density analog input capability. Its 12-bit resolution provides accurate conversion for process signals. The software filter reduces noise and enhances measurement stability.
This analog input module accepts both voltage and current signals for versatile connectivity. Its 500 VAC isolation protects the bus from field-side interference. The module features hot-swap support for minimal system downtime.
The ASBADU216 integrates with Advantys STB gateways and power supplies seamlessly. Its robust design operates reliably across standard industrial temperature ranges. Therefore, this module provides a compact solution for analog signal acquisition.
Details
| Weight | 0.12 kg |
|---|---|
| Dimensions | 72 × 82 × 90 mm |
