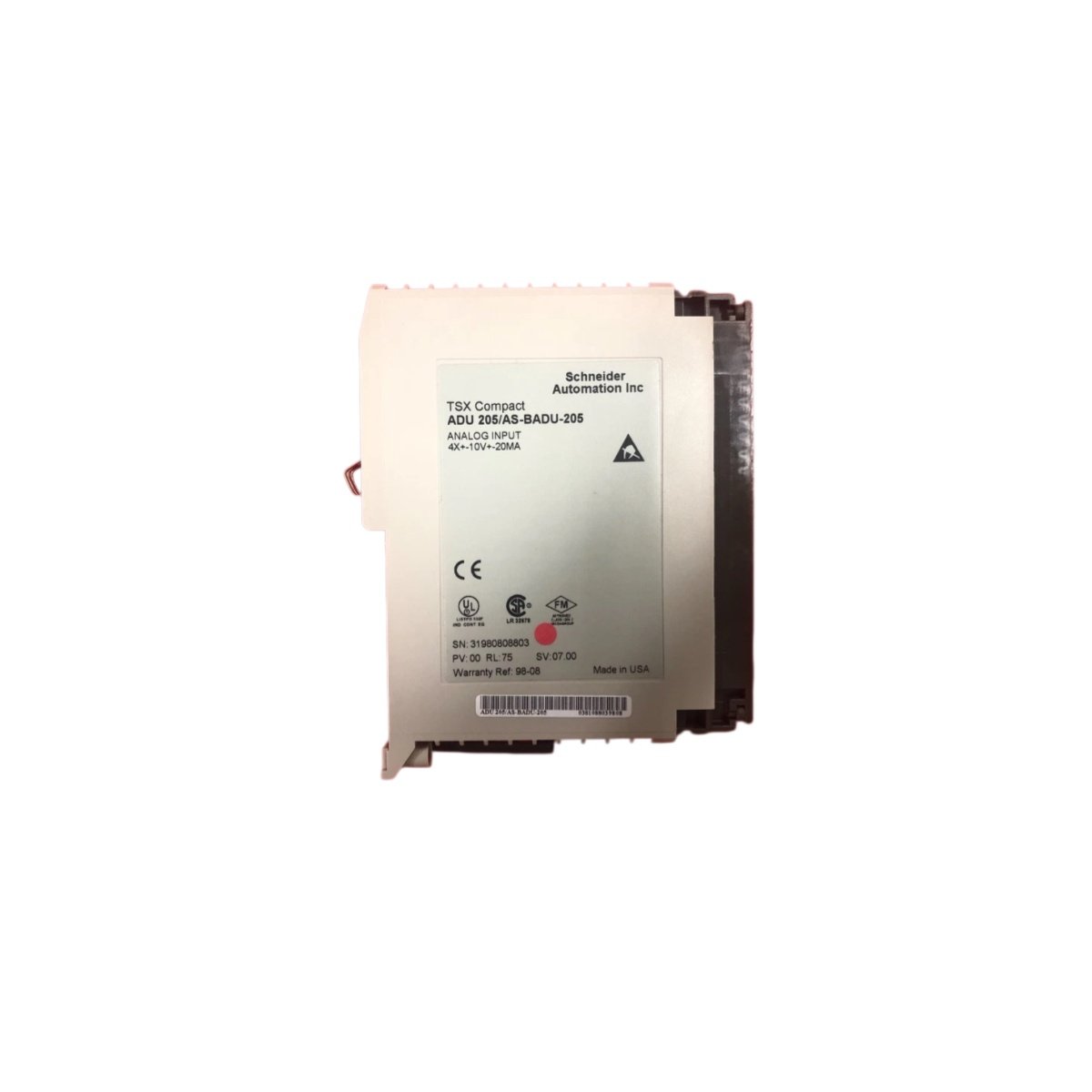

The Schneider ASBADU205 analog input module captures precise measurements from field sensors for Modicon M340 control systems. This four-channel device accepts voltage and current signals with exceptional accuracy for process monitoring. Its slim housing measures 105 mm in height, 30 mm in width, and 92 mm in depth, fitting perfectly into space-constrained cabinets.

Technical Specifications

Input Signal Flexibility and Channel Configuration

The ASBADU205 accepts both voltage signals of 0–10 V or ±10 V from various transducers. It also handles current signals of 4–20 mA and 0–20 mA for pressure and temperature sensors. Users can individually configure each input channel through the Unity Pro software environment. This per-channel configurability eliminates the need for external signal conditioners or jumper adjustments.

Conversion Precision and Sampling Performance

This module delivers 16-bit resolution for detailed representation of analog process variables. The total conversion time reaches 10 ms, covering all four channels simultaneously. Accuracy remains within ±0.15% of full scale at 25°C, ensuring reliable data for control decisions. Engineers can trust these measurements for tight-tolerance applications like chemical dosing and furnace temperature regulation.

Noise Suppression and Signal Integrity

Differential inputs effectively reject common-mode interference from long cable runs and electrical noise. The common-mode rejection ratio stays above 70 dB at both 50 Hz and 60 Hz power frequencies. A 1500 V AC isolation barrier protects the M340 backplane from field-side voltage surges. This robust design maintains measurement stability in environments with variable-frequency drives, welding equipment, or heavy motor loads.

Power Requirements and Energy Efficiency

The ASBADU205 consumes just 2.2 W from the backplane power supply during normal operation. This low energy consumption minimizes heat buildup and reduces cooling demands in the control cabinet. It also allows more modules to share the same power budget without overloading the system. Efficient power usage contributes to overall lower operational costs and improved system longevity.

Wiring Interface and Installation Details

A 10-pin removable screw terminal block provides convenient access for field wiring connections. Each channel includes dedicated terminals for positive, negative, and shield grounding lines. You can connect shielded twisted-pair cables directly to the module for optimal noise reduction. The terminal block accepts wire gauges from 0.2 to 1.5 mm², accommodating standard industrial wiring practices.

System Integration and Compatibility

This input module integrates seamlessly with Modicon M340 CPU units and associated backplanes. It supports both local rack mounting and remote I/O configurations using the X80 bus architecture. The ASBADU205 works effectively with temperature transmitters, pressure sensors, and flow meters across various industries. Its compact 30 mm width enables high-density installations in large-scale systems with hundreds of analog points.

Diagnostic Indicators and Maintenance

Front-panel LEDs display channel activation, power status, and any detected fault conditions. These indicators help technicians quickly identify wiring issues or module failures without diagnostic tools. The module retains calibration settings in non-volatile memory, preserving configurations through power cycles. This feature simplifies replacement procedures and reduces system downtime during maintenance activities.
