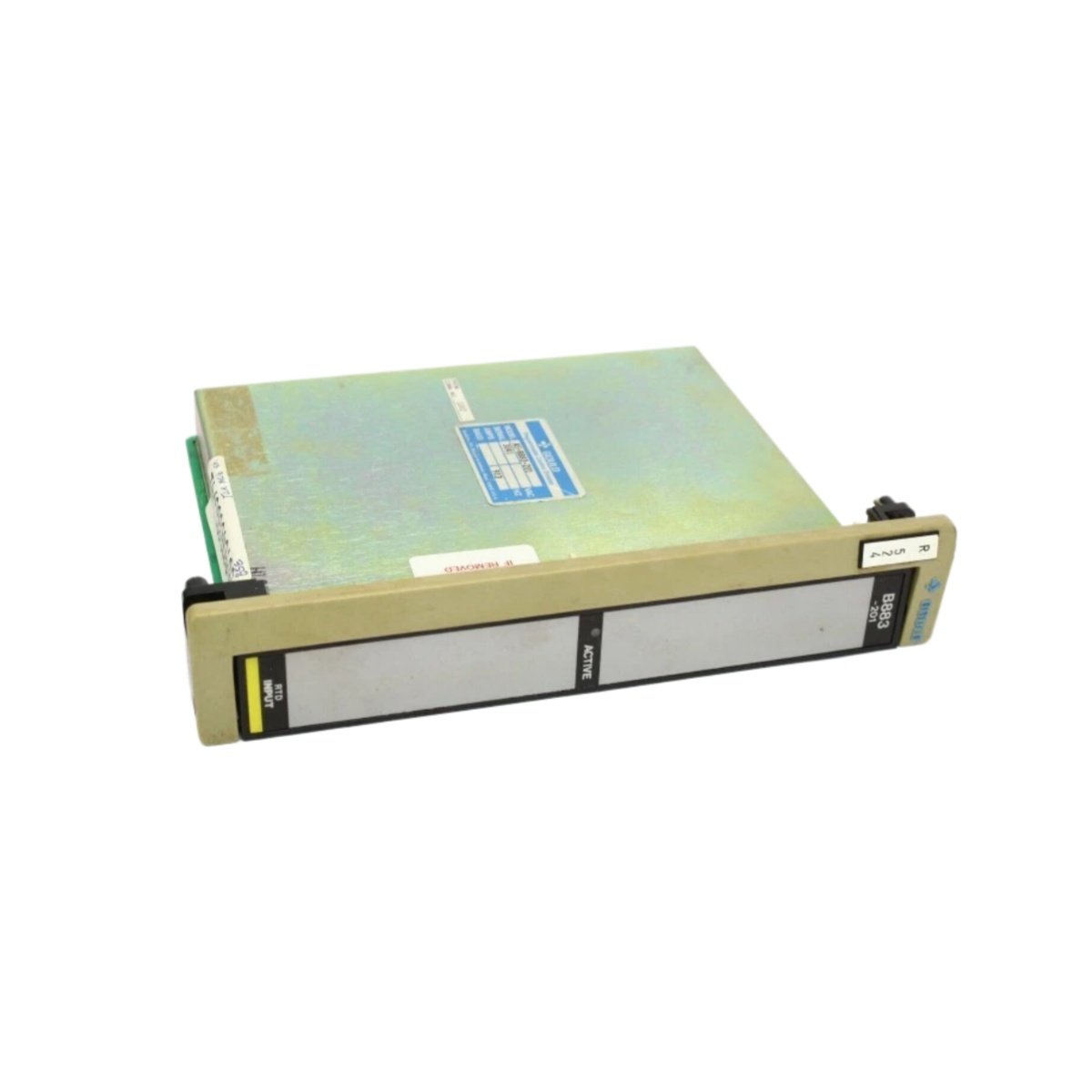

The ASB883201 works as a basic module inside Schneider industrial control architectures. This unit provides the core mounting and connection platform for expansion cards. Consequently, system integrators gain a dependable foundation for modular machine builds.

Technical Specifications Overview

The ASB883201 combines a rigid base frame with standard slot spacing. Moreover, its parameter set helps engineers plan module counts and wiring routes accurately.

Interface and Bus Communication

The ASB883201 routes signals through integrated backplane bus connectors. Therefore, installed cards exchange data quickly with the host controller. The base frame itself contains no regulation circuitry or transformer. In addition, external wiring feeds 24 V DC to the internal power rails.

Physical Characteristics and Installation

This base module measures roughly 300 mm wide and 150 mm high. Furthermore, its 120 mm depth accommodates standard expansion board lengths. The ASB883201 weighs about 2.0 kg. Consequently, one technician can lift it easily onto cabinet rails. Installation follows standard panel mounting practices, then retaining screws secure the frame.

Operational Role and Maintenance

Engineers select the ASB883201 when they need a flexible expansion platform. Meanwhile, the open frame simplifies inspection and card replacement work. The module stores no energy and includes no battery or capacitor. Thus, it avoids periodic cell replacement tasks entirely. Instead, the user supplies all operating power externally.
