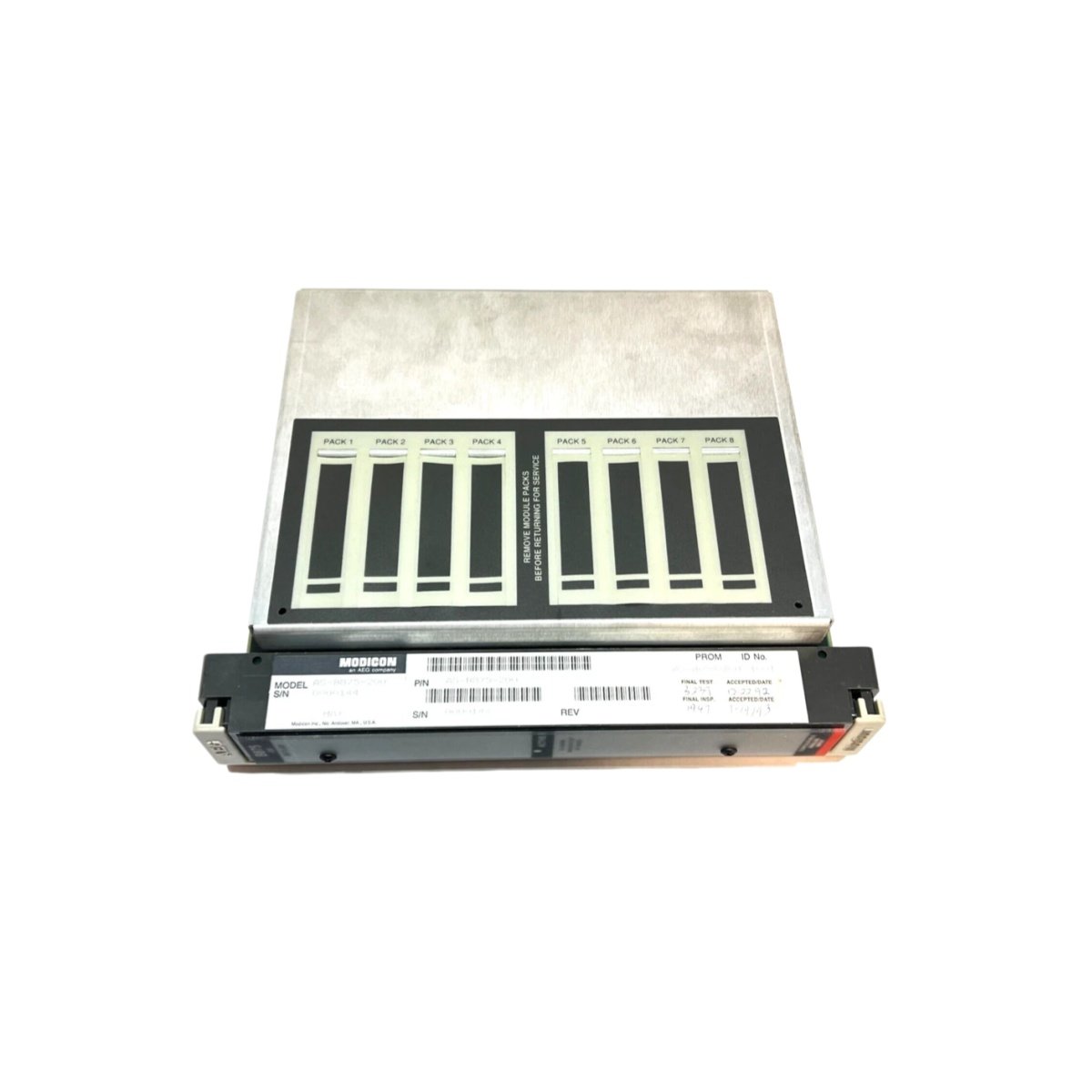

Overview of the Schneider ASB875200 Configurable Analogue Base Module

The ASB875200 serves as a configurable analogue base module within Schneider’s automation platforms. This unit accepts multiple analogue signal types and routes them to connected processing modules. Engineers deploy it in process plants that demand flexible, accurate signal conditioning.

Key Technical Specifications of the ASB875200

The ASB875200 combines a rugged base housing with configurable channel settings. Below you will find the core parameters that define this module’s performance envelope.

Physical Design and Interface Details

The ASB875200 adopts a compact footprint that fits standard Schneider base units. Its dimensions measure 140 mm in length, 100 mm in width, and 30 mm in depth. Moreover, the module weighs roughly 320 grams, which simplifies panel mounting and field replacement. Twenty screw terminals secure field wiring without specialized tooling.

Performance and Signal Processing Capabilities

This module provides eight configurable analogue input channels for versatile field connections. Engineers configure each channel for 4–20 mA, 0–10 V DC, thermocouple, or RTD signals. The 16-bit A/D conversion delivers high-resolution data acquisition for demanding process loops. Additionally, channel-to-channel isolation prevents signal interference between adjacent inputs. Consequently, the unit suits applications requiring tight measurement tolerances.

Power and Environmental Considerations

The ASB875200 operates on a 24 V DC nominal power supply. Power consumption remains approximately 4 W during normal operation. The operating temperature range spans 0°C to 60°C for industrial environments. Storage temperature extends from -25°C to 70°C. Furthermore, humidity tolerance reaches 95% RH without condensation.
